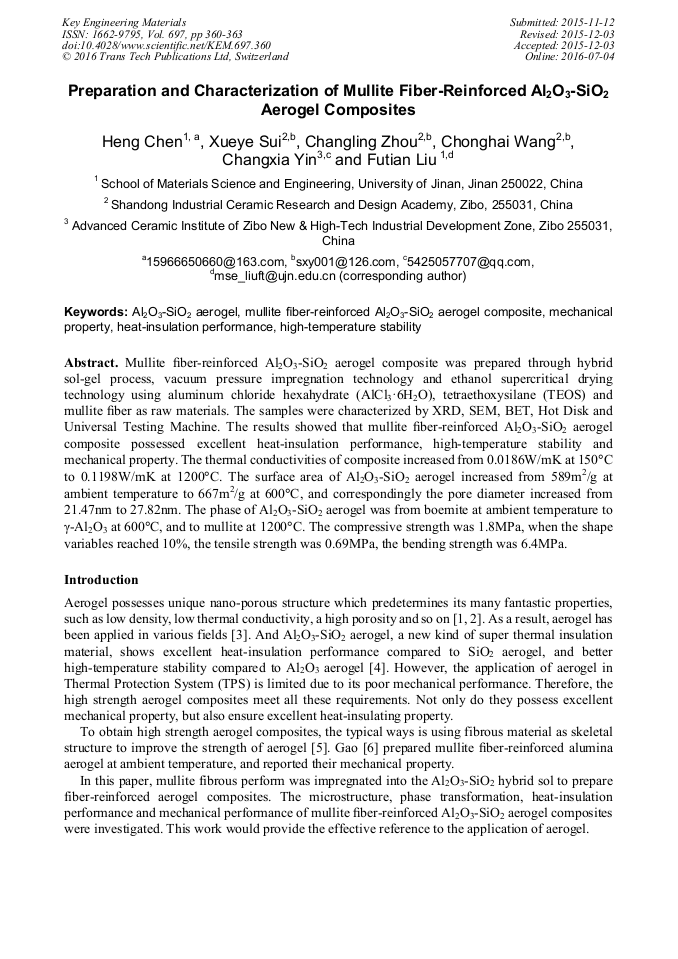

Preparation and Characterization of Mullite Fiber-Reinforced Al₂O₃-SiO₂ Aerogel Composites

Abstract:

Mullite fiber-reinforced Al₂O₃-SiO₂ aerogel composite was prepared through hybrid sol-gel process, vacuum pressure impregnation technology and ethanol supercritical drying technology using aluminum chloride hexahydrate (AlCl₃·6H₂O), tetraethoxysilane (TEOS) and mullite fiber as raw materials. The samples were characterized by XRD, SEM, BET, Hot Disk and Universal Testing Machine. The results showed that mullite fiber-reinforced Al₂O₃-SiO₂ aerogel composite possessed excellent heat-insulation performance, high-temperature stability and mechanical property. The thermal conductivities of composite increased from 0.0186W/mK at 150°C to 0.1198W/mK at 1200°C. The surface area of Al₂O₃-SiO₂ aerogel increased from 589m²/g at ambient temperature to 667m²/g at 600°C, and correspondingly the pore diameter increased from 21.47nm to 27.82nm. The phase of Al₂O₃-SiO₂ aerogel was from boemite at ambient temperature to γ-Al₂O₃ at 600°C, and to mullite at 1200°C. The compressive strength was 1.8MPa, when the shape variables reached 10%, the tensile strength was 0.69MPa, the bending strength was 6.4MPa.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 697)

Pages:

360-363

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.697.360

Citation:

Cite this paper

Online since:

July 2016

Authors:

Heng Chen, Xue Ye Sui, Chang Ling Zhou, Chong Hai Wang, Chang Xia Yin, Fu Tian Liu*

Keywords:

Al₂O₃-SiO₂ Aerogel, Heat-Insulation Performance, High-Temperature Stability, Mechanical Properties, Mullite Fiber-Reinforced Al₂O₃-SiO₂ Aerogel Composite

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] S. Keysar, G. E. Shter, Y. Hazan, et al. Chemistry of materials, 1997, 9(11): 2464-2467.

Google Scholar

[2] A. C. Pierre, G. M. Pajonk. Chemical Reviews, 2002, 102(11): 4243-4266.

Google Scholar

[3] M. S. Douglas, M. Alok, B. Ulrich. J. Non-Cryst. Solids, 1998, 225(1): 254-259.

Google Scholar

[4] Y. Saito, T. Takei, S. Hayashi, et al. J. American Ceramic Society, 1998, 81(8): 2197-2200.

Google Scholar

[5] Y Liao, H Wu, Y Ding, et al. Journal of sol-gel science and technology, 2012, 63(3): 445-456.

Google Scholar

[6] Q. F. Gao, C. R. Zhang, J. Feng, et al. J. National Univ. Defense Technology, 2008, 30(4): 39.

Google Scholar

[7] Y. Mizushima, M. Hori. Journal of non-crystalline solids, 1994, 167(1): 1-8.

Google Scholar

[8] G. Zu, J. Shen, X. Wei, et al. Journal of Non-Crystalline Solids, 2011, 357(15): 2903-2906.

Google Scholar

[9] A. G. Evans, F. W. Zok. Journal of Materials science, 1994, 29(15): 3857-3896.

Google Scholar
