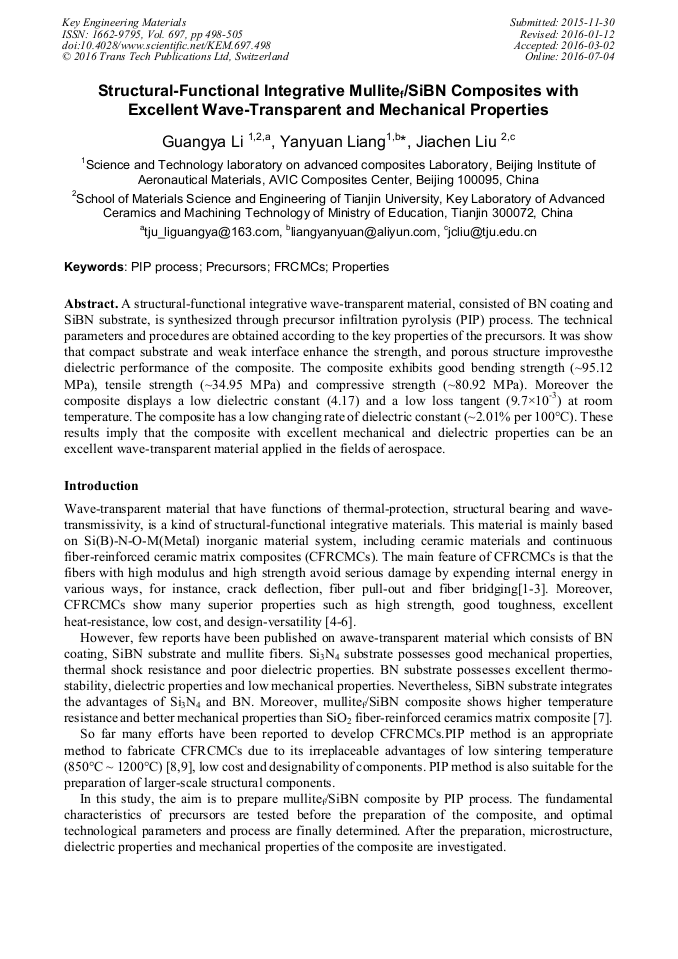

Structural-Functional Integrative Mullite_f/SiBN Composites with Excellent Wave-Transparent and Mechanical Properties

Abstract:

A structural-functional integrative wave-transparent material, consisted of BN coating and SiBN substrate, is synthesized through precursor infiltration pyrolysis (PIP) process. Then the technical parameters and procedures are obtained according to the key properties of the precursors. Studies on the microstructures and properties of the composite show that compact substrate and weak interface enhance the strength, and porous structure improves the dielectric performance of the composite. The composite exhibites good bending strength (~95.12 MPa), tensile strength (~34.95 MPa) and compressive strength (~80.92 MPa). Moreover the composite displays a low dielectric constant (4.17) and a low loss tangent (9.7×10^-3) at room temperature. The composite has a low changing rate of dielectric constant (~2.01% per 100°C). These results imply that the composite with excellent mechanical and dielectric properties can be an excellent wave-transparent material applied in the fields of aerospace.

• Periodical: Key Engineering Materials (Volume 697)
• Pages: 498-505
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.697.498
• Online since: July 2016
• Authors: Guang Ya Li, Yan Yuan Liang*, Jia Chen Liu
• Keywords: FRCMCs, PIP Process, Precursors, Properties

References

[1] V. Bheemreddy, K. Chandrashekhara, L.R. Dharani, G.E. Hilmas, Computational Materials Science 79 (0) (2013) 663-673.

DOI: 10.1016/j.commatsci.2013.07.026

[2] C. H. Chen, R. R. Chang, P. H. Jeng, Mechanics of Materials 20 (2) (1995) 165-181.

[3] R. Kerans, T. Parthasarathy, Composites Part A 30 (4) (1999) 521-524.

[4] H. Liu, H. Cheng, J. Wang, G. Tang, Ceramics International 36 (7) (2010) 2033-(2037).

[5] R. Naslain, Design, Composites Science and Technology 64 (2) (2004) 155-170.

[6] Y. Wang, H. Cheng, J. Wang, Ceramics International 40 (3) (2014) 4707-4715.

[7] B. Li, C.R. Zhang, S.Q. Wang, F. Cao, Y.G. Jiang, Refractories & Industrial Ceramics 48 (4) (2007) 280-283.

[8] X. Yang, H. F. Hu, Y. D. Zhang, Z. H. Chen, Ceramics International 40 (7, Part A) (2014) 9087-9094.

[9] H.Q. Ly, R. Taylor, R.J. Day, J Mater Sci 36 (16) (2001) 4027-4035.

[10] M. Birot, J.P. Pillot, J. Dunogues, Chemical Reviews 95 (5) (2002) 1443-1477.

[11] S. Reschke, C. Haluschka, R. Riedel, Z. Lences, D. Galusek, Journal of the European Ceramic Society 23 (11) (2003) 1963-(1970).

DOI: 10.1016/s0955-2219(02)00420-x

[12] A.H. Tavakoli, P. Gerstel, J.A. Golczewski, J. Bill, Journal of Materials Research 25 (11) (2010) 2150-2158.

[13] A.H. Tavakoli, P. Gerstel, J.A. Golczewski, J. Bill, Journal of Materials Research 26 (4) (2011) 600-608.

[14] Y.G. Jiang, C.R. Zhang, F. Cao, S.Q. Wang, G.J. Qi, Y.B. Cao, Materials Science & Technology 23 (7) (2007) 880-882.

[15] B. Toury, P. Miele, D. Cornu, H. Vincent, J. Bouix, Advanced Functional Materials 12 (3) (2002) 228-234.

DOI: 10.1002/1616-3028(200203)12:3<228::aid-adfm228>3.0.co;2-u

[16] T. Wideman, E.E. Remsen, E. Cortez, V.L. Chlanda, L.G. Sneddon, Chem: mater 10 (1998) 412-421.

DOI: 10.1021/cm970572r

[17] X. Xu, S. Mei, J.M.F. Ferreira, Journal of the European Ceramic Society 26 (3) (2006) 337-341.

[18] F. Cao, Z.Y. Fang, F. Chen, C.R. Zhang, Q. Shen, S.Q. Wang, B. Li, Key Engineering Materials 508 (2012).

[19] P. Colombo, G. Mera, R. Riedel, G.D. Sorarù, Journal of the American Ceramic Society volume 93 (7) (2010) 1805-1837(1833).

[20] D. Li, C. Zhang, B. Li, F. Cao, S. Wang, J. Li, Materials Letters 68 (0) (2012) 222-224.
