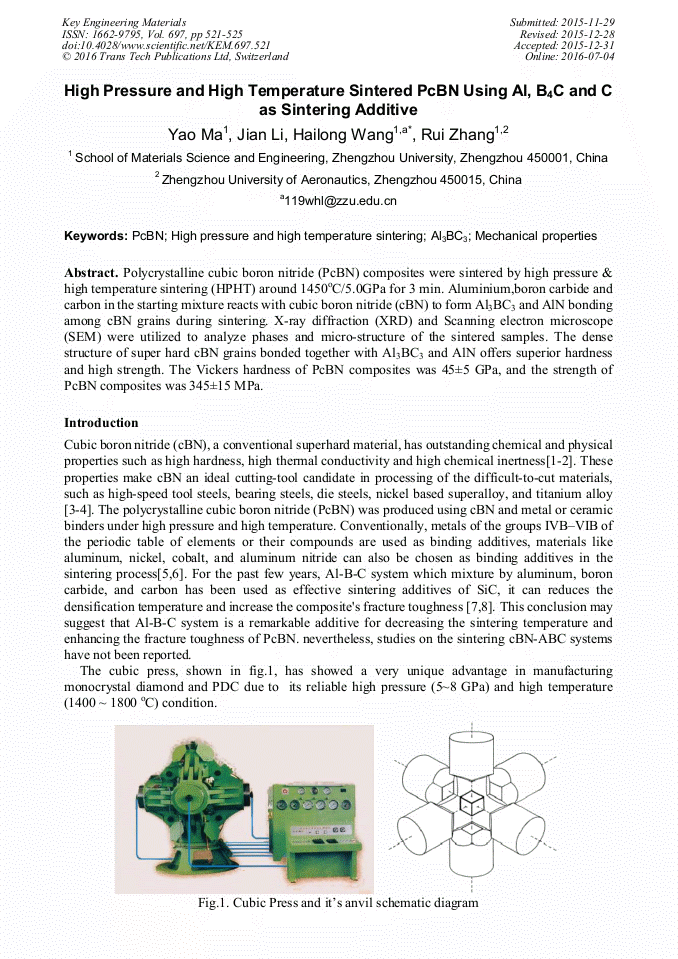

High Pressure and High Temperature Sintered PcBN Using Al, B₄C and C as Sintering Additive

Abstract:

Polycrystalline cubic boron nitride (PcBN) composites were sintered by high pressure and high temperature sintering (HPHT) at 1450 °C for 3 min under a pressure of 5.0 GPa. Aluminium,boron carbide and carbon in the starting mixture reacts with cubic boron nitride (cBN) to form Al₃BC₃ and AlN bonding among cBN grains during sintering. X-ray diffraction (XRD) and Scanning electron microscope (SEM) were used to analyze phases and micro-structure of the sintered samples. The dense structure of super hard cBN grains bonded together with Al₃BC₃ and AlN offers superior hardness and high strength. The Vickers hardness of PcBN composites was 45±5 GPa, and the strength of PcBN composites was 345±15 MPa.

• Periodical: Key Engineering Materials (Volume 697)
• Pages: 521-525
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.697.521
• Online since: July 2016
• Authors: Yao Ma, Jian Li, Hai Long Wang*, Rui Zhang
• Keywords: Al₃BC₃, High Pressure High Temperature (HPHT) Sintering, Mechanical Properties, PCBN

References

[1] E. Uhlmann, J. A. O. Fuentes, M. Keunecke, Machining of high performance workpiece materials with CBN coated cutting tools, Thin Solid Films. 518(2009)1451–1454.

DOI: 10.1016/j.tsf.2009.09.095

[2] Ding WF, Xu JH, Chen ZZ, et al., Grain wear of brazed polycrystalline CBN abrasive tools during constant-force grinding Ti-6Al-4 V alloy, Int. J. Adv. Manuf. Technol. 52(2011) 969– 976.

DOI: 10.1007/s00170-010-2777-1

[3] Y. Zhao, M. Wang, Preparation of polycrystalline cBN containing nano diamond, J. Mater Process Technol. 198(2008)134–138.

[4] Zhang XH, Deng ZH, An WK, Cao H, A Methodology for contour error intelligent precompensation in cam grinding, Int. J. Adv. Manuf. Technol. 64 (2013)165–170.

DOI: 10.1007/s00170-012-4027-1

[5] Y. Zhao, M. Wang, Effect of sintering temperature on the structure and properties of polycrystalline cubic boron nitride prepared by SPS, J. Mater. Process Technol. 209(2009) 355–359.

DOI: 10.1016/j.jmatprotec.2008.02.005

[6] Lili Zhang, Feng Lin, Zhi Lv, etc. cBN-Al-HfC composites: sintering behaviors and mechanical properties under high pressure, Int. J. Refrac. Met. H. 50(2015)221-226.

DOI: 10.1016/j.ijrmhm.2015.01.015

[7] S.H. Lee, Y. Sakka., H. Tanaka, Y. Kagawa, Wet processing and low temperature pressureless sintering of SiC using a novel Al3BC3 sintering additive. J. Am. Ceram. Soc. 92 (2009) 2888–2893.

DOI: 10.1111/j.1551-2916.2009.03336.x

[8] R. Yuan, J.J. Kruzic, X.F. Zhang, et al., Ambient to high-temperature fracture toughness and cyclic fatigue behavior in Al-containing silicon carbide ceramics, Acta Mater. 51 (2003) 6477–6491.

DOI: 10.1016/j.actamat.2003.08.038

[9] X.M. Wang, The formation of AlB2 in an Al-B master alloy, J. Alloys Compd. 403(2005) 283-287.

[10] C. Rizzoli, P.S. Salamakha, O.L. Sologub, G. Bocelli, X-ray investigation of the Al-B-N ternary system: isothermal section at 1500 °C: crystal structure of the Al0. 185B6CN0. 256 compound, J. Alloys Compd. 343 (2002) 135-141.

DOI: 10.1016/s0925-8388(02)00282-7

[11] X.Z. Rong, T. Yano, TEM investigation of high-pressure reaction-sintered cBN-Al composites, J. Mater. Sci. 39 (2004) 4705-4710.

DOI: 10.1023/b:jmsc.0000034176.85765.40

[12] L.L. Zhang, Z.L. Kou, C. Xu, et al., Sintering behavior of fine grained cBN-10 wt. % Al3. 21Si0. 47 system under high pressure, Diamond and related materials. 29 (2012) 84-88.

DOI: 10.1016/j.diamond.2012.08.001

[13] X.F. Zhang, M.E. Sixta, L.C.D. Jonghe, Grain boundary evolution in hot-pressed ABC–SiC, J. Am. Ceram. Soc. 83 (2000) 2813–2820.

DOI: 10.1111/j.1151-2916.2000.tb01637.x
