Fabrication of Deep Cup with Flange by In-Plane Stretch Forming Applying Compressive Force in Thickness Direction

Abstract:

This paper presents a new stretch forming method that applies compressive force for forming a deep cup with a flange. In this method, a punch and a die having a hole are used, and the main parameters are the depth of the die hole, d_dh, and the clearance between the punch and the die, c. The effect of d_dh and c was investigated by using an aluminum blank of thickness 2 mm in an experiment and a finite element analysis (FEA). When d_dh was too small, the material flow could not be controlled appropriately, and when d_dh was too large, a local thinning occurred during initial stretching into the die hole. When c was set at large, the side wall thickness of the formed cup was uneven, but a deep cup could be obtained by setting c below a half of the blank thickness. As a result, a deep cup of height 8.3 mm and with a flange was formed successfully under the condition that d_dh was 1.5 mm and c was 0.5 mm.

You might also be interested in these eBooks

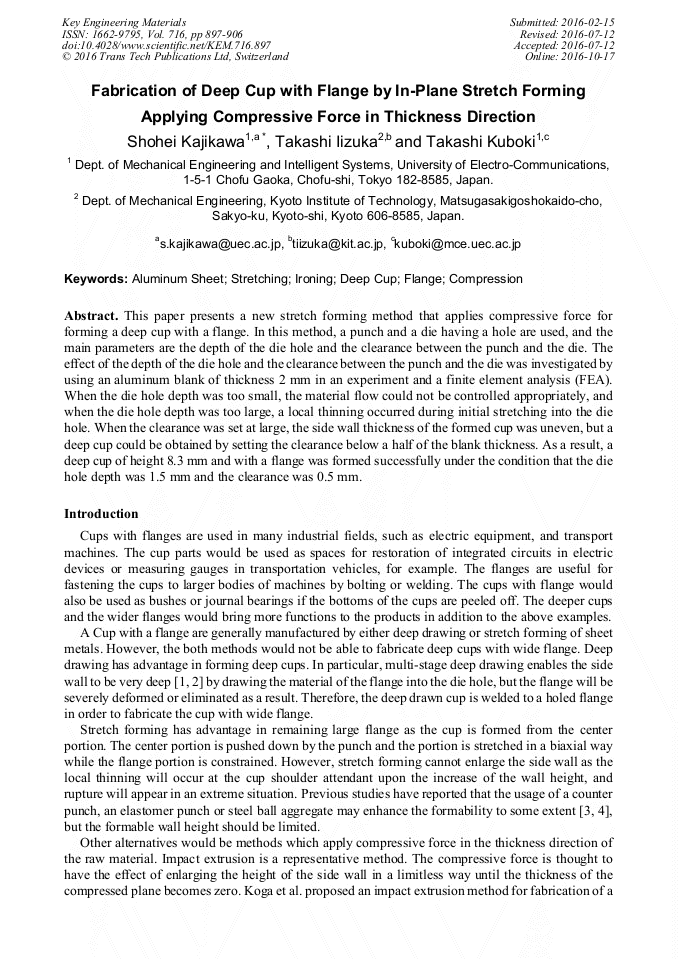

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 716)

Pages:

897-906

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.716.897

Citation:

Cite this paper

Online since:

October 2016

Authors:

Shohei Kajikawa*, Takashi Iizuka, Takashi Kuboki

Keywords:

Aluminum Sheet, Compression, Deep Cup, Flange, Ironing, Stretching

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] D. Y. Yang, J. B. Kim, D. W. Lee, Investigation into Manufacturing of Very Long Cups by Hydromechanical Deep Drawing and Ironing with Controlled Radial Pressure, CIRP Ann., 44-1 (1995), 255-258.

DOI: 10.1016/s0007-8506(07)62320-8

Google Scholar

[2] A. Shirazi, K. Abrinia, G. Faraji, Analytical and experimental investigations on the novel hydro ironing process, The Int. J. Adv. Manuf. Tech., 84-9 (2016), 2003-(2017).

DOI: 10.1007/s00170-015-7535-y

Google Scholar

[3] N. Takakura, H. Nakasone, K. Yamaguchi, T. Iizuka, Production of deep cups with wide flange by combined process of punch stretching with ironing, Adv. Technol. Plast., 2 (2002), 1769-1774.

Google Scholar

[4] T. Iizuka, K. Fujita, S. Waki, N. Takakura, Feature and Possibility of Sheet Metal Bulging Using Steel Ball Aggregate, Proc. 9th ICTP (2008), 1395-1400.

Google Scholar

[5] N. Koga, W. Jiang, J. Kageyama, T. Suzuki, Shape precision improvement of impact extruded 3003 aluminum alloy square cups by means of ironing, J. JPN Inst. of Light Met., 63-3 (2013), 106-110 (in Japanese).

DOI: 10.2464/jilm.63.106

Google Scholar

[6] T. Iizuka, N. Hatanaka, N. Takakura, Deep Drawing of High Cup of Magnesium Alloy AZ31 by Compressive Force, Steel Res. Int., 81-9 (2010), 1247-1250.

Google Scholar
