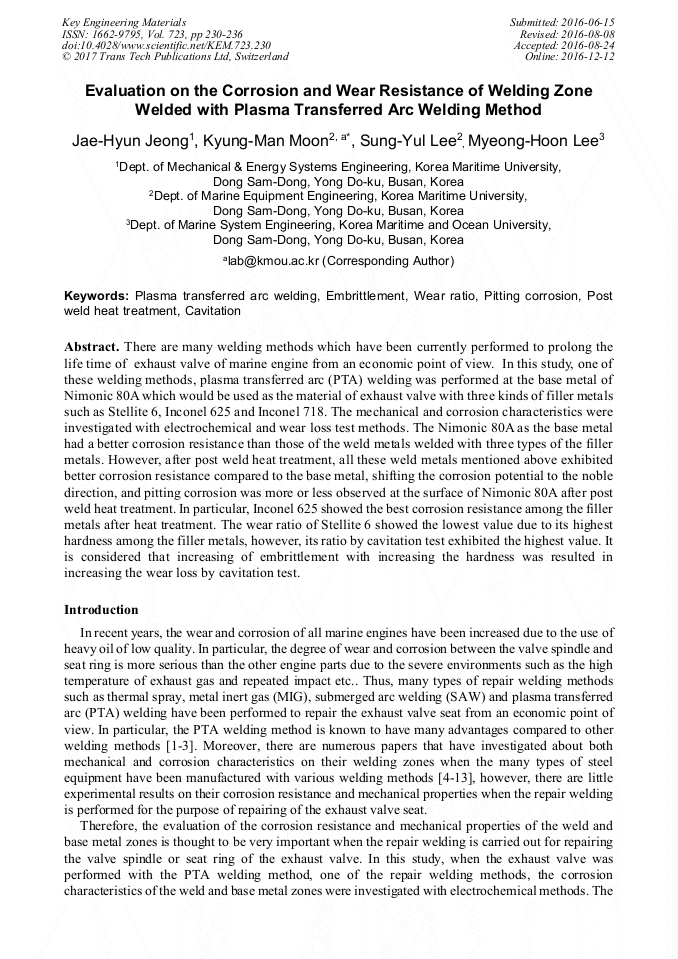

Evaluation on the Corrosion and Wear Resistance of Welding Zone Welded with Plasma Transferred Arc Welding Method

Abstract:

There are many welding methods which have been currently performed to prolong the life time of exhaust valve of marine engine from an economic point of view. In this study, one of these welding methods, plasma transferred arc (PTA) welding was performed at the base metal of Nimonic 80A which would be used as the material of exhaust valve with three kinds of filler metals such as Stellite 6, Inconel 625 and Inconel 718. The mechanical and corrosion characteristics were investigated with electrochemical and wear loss test methods. The Nimonic 80A as the base metal had a better corrosion resistance than those of the weld metals welded with three types of the filler metals. However, after post weld heat treatment, all these weld metals mentioned above exhibited better corrosion resistance compared to the base metal, shifting the corrosion potential to the noble direction, and pitting corrosion was more or less observed at the surface of Nimonic 80A after post weld heat treatment. In particular, Inconel 625 showed the best corrosion resistance among the filler metals after heat treatment. The wear ratio of Stellite 6 showed the lowest value due to its highest hardness among the filler metals, however, its ratio by cavitation test exhibited the highest value. It is considered that increasing of embrittlement with increasing the hardness was resulted in increasing the wear loss by cavitation test.

• Periodical: Key Engineering Materials (Volume 723)
• Pages: 230-236
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.723.230
• Online since: December 2016
• Authors: Jae Hyun Jeong, Kyung Man Moon*, Sung Yul Lee, Myeong Hoon Lee
• Keywords: Cavitation, Embrittlement, Pitting Corrosion, Plasma Transferred Arc Welding, Post Weld Heat Treatment, Wear Ratio

References

[1] X. Huang, Applications of PTA powder welding in petroleum chemical industry, Proc. 15th Intl. Thermal Spray Conf. Nice, France, (1998), p.1013.

[2] Y. S. Kim, Plasma Transferred Arc Surfacing Process, J. Korea Weld. Soc, 14(2) (1996) 28-32.

[3] T. Baohui, Local microstructure and its influence on precipitation behavior in hot deformed Nimonic 80A, J. Acta Mater. 51 (2003) 4150.

DOI: 10.1016/s1359-6454(03)00233-7

[4] S. K. Jang, J. I. Jeon, Weldability of Al 7075 Alloy According to Different Tools and Welding Conditions by F.S.W., J. Korean Soc. Marine Eng. 30(1) (2006) 30-41.

[5] J. D. Kim, B. L. Kil, C. J. Lee, The Weldability of laminated Stator Core for Motor by Pulsed Nd: YAG Laser, J. Korean Soc. Marine Eng. 30(5) (2006) 629-635.

[6] J. D. Kim, S. J. Yoo, J. S. Kim, Optimization of Pulsed Nd: YAG Laser Welding Conditions for Sealing of Lithium-ion Battery, J. Korean Soc. Marine Eng. 30(5) (2006) 623-628.

[7] P. D. Bilmes, C. L. Liorente, Saire Huaman, L. M. Gassa, C. A. Gervasi, Microstructure and Pitting Corrosion of 13CrNiMo Weld Metal, Corr. Sci. 48 (2006) 3261-3270.

DOI: 10.1016/j.corsci.2005.10.009

[8] Y. H. Lee, Y. H. Kim, H. Kim, Crevice Corrosion Resistance of Stainless Steel in Natural Sea Water with Different Post Welding Treatment, Corr. Sci. Tech. 2(5) (2003) 219-224.

[9] I. H. Lo, M. C. Lee, K. Y. Lim, W. Ho, G. C. Y. Yang, W. T. Tsai, Effect of Heat Treatment on the Pitting Corrosion Behavior of 347SS Weld Overlay, Corr. Sci. Tech. 31(5) (2002) 361-367.

[10] K. M. Moon, M. H. Lee, K. J. Kim, J. G. Kim, S. J. Kim, A Study on the Post-Weld Heat Treatment Effect to Mechanical Properties and Hydrogen Embrittlement for Heating Affected Zone of a RE36 Steel, Corr. Sci. Tech. 2(6) (2003) 283-288.

[11] V. S. Raja, S. K. Vershney, R. Raman, S. D. Kulkarni, Influence of Nitrogen on the Pitting Corrosion Behavior of 904L Weld Clad, Corr. Sci. 40(10) (1998) 1609-1625.

DOI: 10.1016/s0010-938x(97)00174-1

[12] L. W. Tsay, W. L. Lin, S. W. Chenct, G. S. Leu, Hydrogen Sulphide Stress Corrosion Cracking of 2. 25 Cr-Mo Steel Weldments, Corr. Sci. 39(7) (1997) 1165-1176.

DOI: 10.1016/s0010-938x(97)00015-2

[13] D. A. Jones, Principles and Prevention of Corrosion, Original American Edition Published by Prentice-Hall, Inc., (1998), p.314.

[14] S. H. An, J. H. Jung, K. W. Nam, Characteristics Evaluation of SS 400 and SYS 304 Steel by Welding Thermal Recycle, J. Ocean Eng. Tech. 19(4) (2005) 64-71.

[15] J. V. Muylder, M. Pourbaix, Atlas of Electrochemical Equilibria in Aqueous Solution, Ed. by M. Pourbaix, Pergamon press and Cebelcor, (1966), pp.260-509.
