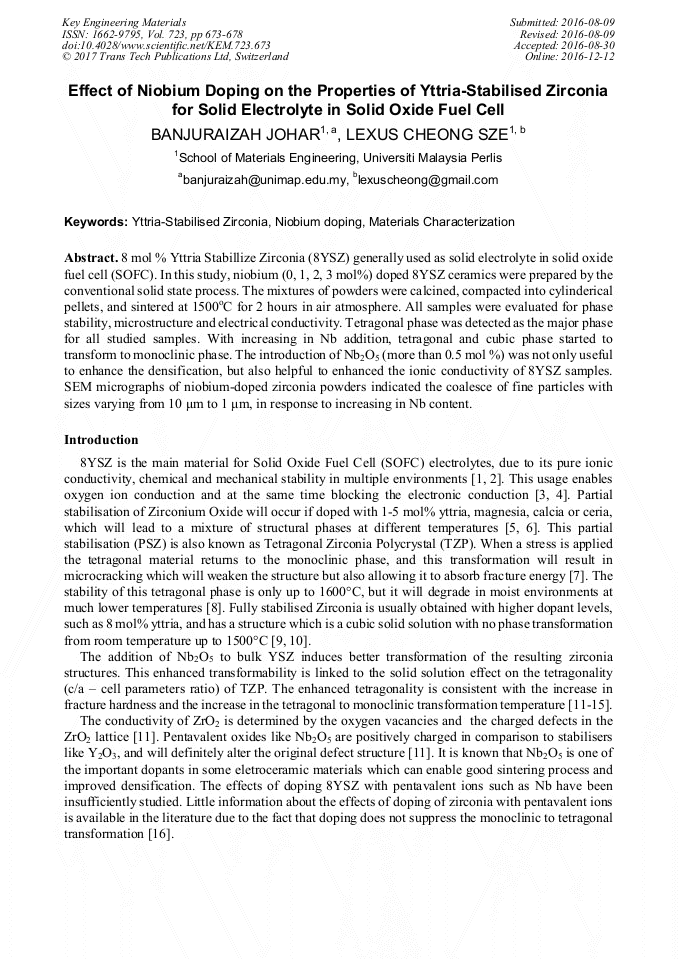

Effect of Niobium Doping on the Properties of Yttria-Stabilised Zirconia for Solid Electrolyte in Solid Oxide Fuel Cell

Abstract:

8 mol % Yttria Stabillize Zirconia (8YSZ) generally used as solid electrolyte in solid oxide fuel cell (SOFC). In this study, niobium (0, 1, 2, 3 mol%) doped 8YSZ ceramics were prepared by the conventional solid state process. The mixtures of powders were calcined, compacted into cylinderical pellets, and sintered at 1500°C for 2 hours in air atmosphere. All samples were evaluated for phase stability, microstructure and electrical conductivity. Tetragonal phase was detected as the major phase for all studied samples. With increasing in Nb addition, tetragonal and cubic phase started to transform to monoclinic phase. The introduction of Nb₂O₅ (more than 0.5 mol %) was not only useful to enhance the densification, but also helpful to enhanced the ionic conductivity of 8YSZ samples. SEM micrographs of niobium-doped zirconia powders indicated the coalesce of fine particles with sizes varying from 10 μm to 1 μm, in response to increasing in Nb content.

• Periodical: Key Engineering Materials (Volume 723)
• Pages: 673-678
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.723.673
• Online since: December 2016
• Authors: Banjuraizah Johar*, Cheong Sze Lexus
• Keywords: Materials Characterization, Niobium Doping, Yttria-Stabilised Zirconia

References

[1] E. Courtin, P. Boy, T. Piquero, J. Vulliet, N. Poirot, C. Laberty-Robert, A composite sol–gel process to prepare a YSZ electrolyte for Solid Oxide Fuel Cells, J. Pow. Source. 206 (2012) 77-83.

DOI: 10.1016/j.jpowsour.2012.01.109

[2] S. M. Haile, Fuel cell materials and components☆☆, Acta Mater. 51 (2003) 5981-6000.

[3] N. Q. Minh, Ceramic Fuel Cells, J. Am. Ceram. Soc. 76 (1993) 563-588.

[4] E. J. De Guire, Solid Oxide Fuel Cells, Review Article, (2003).

[5] J. Judes, V. Kamaraj, Preparation and characterization of yttria stabilized zirconia minispheres by the sol-gel drop generation method, Mater. Sci. Poland, 27 (2009) 407-415.

DOI: 10.1007/s10971-008-1853-6

[6] R. C. Garvie, Stabilization of the tetragonal structure in zirconia microcrystals, J. Phys. Chem. 82 (1978) 218-224.

DOI: 10.1021/j100491a016

[7] R. C. Garvie, R. H. Hannink, R. T. Pascoe, Ceramic steel?, Nat. 258 (1975) 703-704.

DOI: 10.1038/258703a0

[8] H. Tsubakino, M. Hamamoto, R. Nozato, Tetragonal-to-monoclinic phase transformation during thermal cycling and isothermal ageing in yttria-partially stabilized zirconia, J. Mater. Sci. 26 (1991) 5521-5526.

DOI: 10.1007/bf02403953

[9] S. Nazarpour, C. López-Gándara, C. Zamani, J. M. Fernández-Sanjuán, F. M. Ramos, A. Cirera, Phase transformation studies on YSZ doped with alumina. Part 2: Yttria segregation, J. Alloy. Comp. 505 (2010) 534-541.

DOI: 10.1016/j.jallcom.2010.05.137

[10] R. C. Pullar, M. D. Taylor, A. K. Bhattacharya, The manufacture of partially-stabilised and fully-stabilised zirconia fibres blow spun from an alkoxide derived aqueous sol–gel precursor, J. European Cer. Soc. 21 (2001) 19-27.

DOI: 10.1016/s0955-2219(00)00178-3

[11] X. Guo, Z. Wang, Effect of niobia on the defect structure of yttria-stabilized zirconia, J. European Ceram. Soc. 18 (1998) 237-240.

DOI: 10.1016/s0955-2219(97)00123-4

[12] S. Raghavan, H. Wang, W. Porter, R. Dinwiddie, M. Mayo, Thermal properties of zirconia co-doped with trivalent and pentavalent oxides, Acta Mater. 49 (2001) 169-179.

DOI: 10.1016/s1359-6454(00)00295-0

[13] H. Guo, X. Bi, S. Gong, H. Xu, Microstructure investigation on gradient porous thermal barrier coating prepared by EB-PVD, Scripta Mater. 44 (2001) 683-687.

DOI: 10.1016/s1359-6462(00)00646-1

[14] S. Raghavan, H. Wang, R. B. Dinwiddie, W. D. Porter, M. J. Mayo, The effect of grain size, porosity and yttria content on the thermal conductivity of nanocrystalline zirconia, Scripta Mater. 39 (1998) 1119-1125.

DOI: 10.1016/s1359-6462(98)00290-5

[15] D. J. Kim, T. Y. Tien, Phase stability and physical properties of cubic and tetragonal ZrO2 in the system ZrO2–Y2O3–Ta2O5, J. Am. Ceram. Soc. 74 (1991) 3061-3065.

DOI: 10.1111/j.1151-2916.1991.tb04302.x

[16] M. M. Bucko, Ionic conductivity of CaO-Y2O3-ZrO2 materials with constant oxygen vacancy concentration, J. European Ceram. Soc. 24 (2004) 1305-1308.

DOI: 10.1016/s0955-2219(03)00502-8

[17] S. M. Vidyavathy, V. Kamaraj, Microwave sintering of niobium co-doped yttria stabilized zirconia, Mod. Appl. Sci. 3 (2009) 102-105.

DOI: 10.5539/mas.v3n6p102

[18] X. Guo, Effect of Nb 2 O 5 on the space-charge conduction of Y 2 O 3-stabilized ZrO 2, Sol. State Ion. 99 (1997) 137-142.

[19] H. Scott, Phase relationships in the zirconia-yttria system, J. Mater. Sci. 10 (1975) 1527-1535.

[20] J. R. Macdonald, Impedance spectroscopy: emphasizing solid materials and systems, Appl. Opt. 28 (1989) 1083.

[21] X. Guo, Physical origin of the intrinsic grain-boundary resistivity of stabilized-zirconia: role of the space-charge layers, Sol. State Ion. 81 (1995) 235-242.

DOI: 10.1016/0167-2738(95)00180-e
