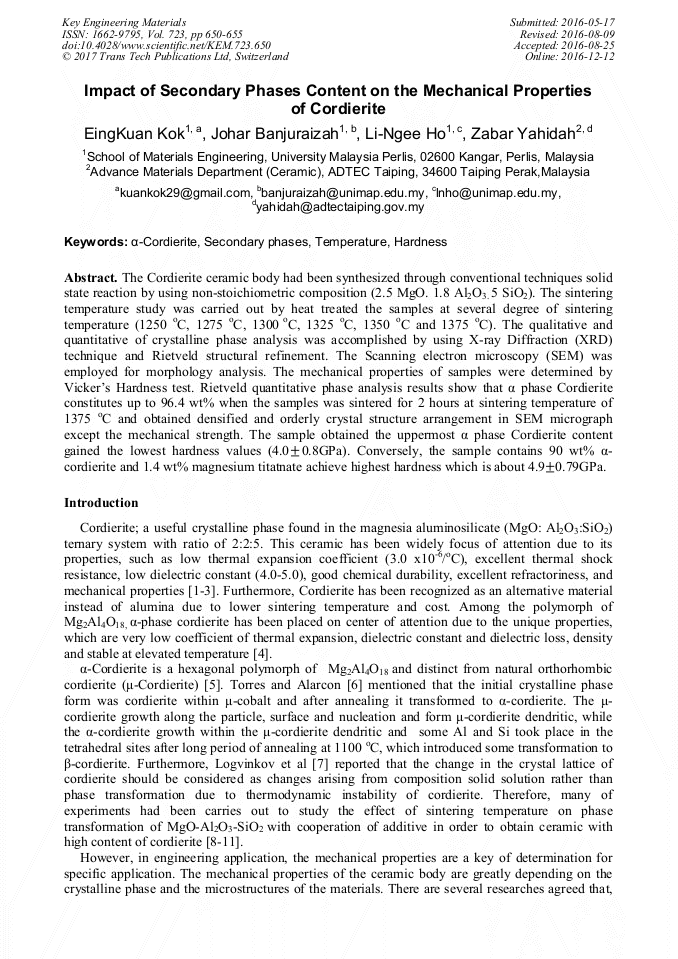

Impact of Secondary Phases Content on the Mechanical Properties of Cordierite

Abstract:

The Cordierite ceramic body had been synthesized through conventional techniques solid state reaction by using non-stoichiometric composition (2.5 MgO. 1.8 Al₂O_3. 5 SiO₂). The sintering temperature study was carried out by heat treated the samples at several degree of sintering temperature (1250 °C, 1275 °C, 1300 ^oC, 1325 °C, 1350 °C and 1375 °C). The qualitative and quantitative of crystalline phase analysis was accomplished by using X-ray Diffraction (XRD) technique and Rietveld structural refinement. The Scanning electron microscopy (SEM) was employed for morphology analysis. The mechanical properties of samples were determined by Vicker’s Hardness test. Rietveld quantitative phase analysis results show that α phase Cordierite constitutes up to 96.4 wt% when the samples was sintered for 2 hours at sintering temperature of 1375 °C and obtained densified and orderly crystal structure arrangement in SEM micrograph except the mechanical strength. The sample obtained the uppermost α phase Cordierite content gained the lowest hardness values (4.00.8GPa). Conversely, the sample contains 90 wt% α-cordierite and 1.4 wt% magnesium titatnate achieve highest hardness which is about 4.90.79GPa.

• Periodical: Key Engineering Materials (Volume 723)
• Pages: 650-655
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.723.650
• Online since: December 2016
• Authors: Eing Kuan Kok, Banjuraizah Johar*, Li Ngee Ho, Zabar Yahidah
• Keywords: Hardness, Secondary Phases, Temperature, α-Cordierite

References

[1] X. Z. Guo, N. Kazuki, K. Kazuyoshi, Y. Zhu, H. Yang, Preparation of macroporous cordierite monoliths via the sol–gel process accompanied by phase separation, J. European Ceram. Soc. 34(3) (2014) 817-823.

DOI: 10.1016/j.jeurceramsoc.2013.08.016

[2] P. Orosco, M. del C. Ruiz, J. González, Synthesis of cordierite by dolomite and kaolinitic clay chlorination. Study of the phase transformations and reaction mechanism, Powd. Tech. 267 (2014) 111-118.

DOI: 10.1016/j.powtec.2014.07.009

[3] Y. C. Dong, X. Q. Liu, Q. L. Ma, G. Y. Meng, Preparation of cordierite-based porous ceramic micro-filtration membranes using waste fly ash as the main raw materials, J. Membr. Sci. 285(2006) 173-181.

DOI: 10.1016/j.memsci.2006.08.032

[4] J. Banjuraizah, H. Mohamad, Z. A. Ahmad, Effect of impuritis content from minerals on phase transformation, densification and crystallization of alpha-cordierite glass-ceramic, J. Alloy. Comp. 509 (2011) 7645-7651.

DOI: 10.1016/j.jallcom.2011.04.129

[5] M. Valášková, J. Zdrálková, J. Tokarský, G. Simha Martynková, M. Ritz, S. Študentová, Structural characteristics of cordierite/steatite ceramics sintered from mixture scontaining pore-forming organovermiculite, Ceram. Int. 40 (2014) 15717–15725.

DOI: 10.1016/j.ceramint.2014.07.095

[6] F. J. Torres, J. Alarcón, Phase evolution by thermal treatment of equimolar cobalt–magnesium cordierite glass powders, J. European Ceram. Soc. 24(4) (2004) 681-691.

DOI: 10.1016/s0955-2219(03)00265-6

[7] S. M. Logvinkov, G. D. Semchenko, D. A. Kobyzeva, V. I. Babushkin, Thermodynamics of Phase Relations in the Subsolidus of the MgO – Al2O3 – SiO2 System, Refract. Ind. Ceram. 42(11-12) (2001) 434-439.

DOI: 10.1023/a:1015087606871

[8] Z. Yuea, J. Zhoua, Z. Maa, J. Baoa, Z. Guia, L. Lia, Crystallization and dielectric properties of cordierite gel-derived glasses containing B2O3 and P2O5, Ferroelectr. 262(1) (2001) 31-36.

[9] X. Hao, Z. Luo, X. Hu, J. Song, Y. Tang, A. Lu, Effect of replacement of B2O3 by ZnO on preparation and properties of transparent cordierite-based glass-ceramics, J. Non-Crystal. Sol. 432 (2016) 265-270.

DOI: 10.1016/j.jnoncrysol.2015.10.017

[10] L. Barbieri, C. Leonelli, T. Manfredini, R. Bertoncello, Solubility, reactivity and nucleation effect of Cr2O3 in the CaO-MgO-Al2O3-SiO2 glassy system, J. Mater. Sci. 29(23) (1994) 6273-6280.

DOI: 10.1007/bf00354571

[11] C. Leonelli, T. Manfredini, M. Paganelli, P. Pozzi, G. C. Pellacani, Crystallization of some anorthite-diopside glass precursors, J. Mater. Sci. 26(18) (1991) 5041-5046.

DOI: 10.1007/bf00549889

[12] M. Camerucci, G. Urretavizcaya, A. Cavalieri, Mechanical behavior of cordierite and cordierite–mullite materials evaluated by indentation techniques, J. European Ceram. Soc. 21(9) (2001) 1195–1204.

DOI: 10.1016/s0955-2219(00)00334-4

[13] M. Camerucci, G. Urretavizcaya, M. Castro, A. Cavalieri, Electrical properties and thermal expansion of cordierite and cordierite-mullite materials, J. European Ceram. Soc. 21(16) (2001) 2917–2923.

DOI: 10.1016/s0955-2219(01)00219-9

[14] D. P. Mukherjee, S. K. Das, The influence ofTiO2 content on the properties of glass ceramics: Crystallization, micro structure and hardness, Ceram. Int. 40 (2014) 4127–4134.

DOI: 10.1016/j.ceramint.2013.08.067

[15] S. K. Marikkannan, E. P. Ayyasamy, Synthesis, characterisation and sintering behaviour influencing the mechanical, thermal and physical properties of cordierite-doped TiO2, J. Mater. Res. Tech. 2(3) (2013) 269-275.

DOI: 10.1016/j.jmrt.2013.03.016
