Lattice Structure and Magnetic Behavior of Ga Ion Doped Multiferroics CaMn₇O₁₂

Abstract:

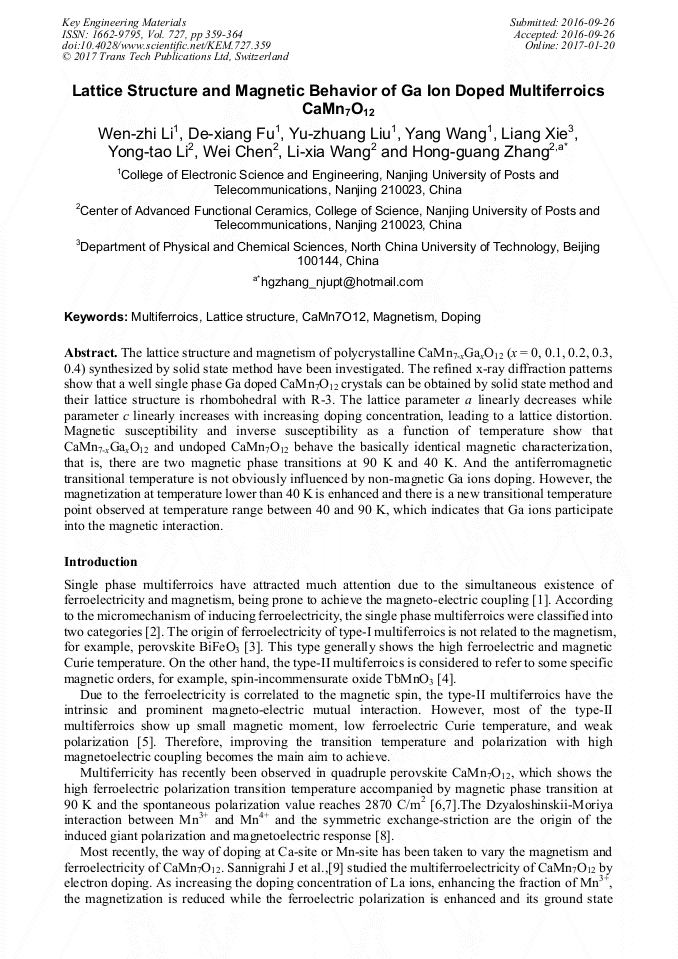

The lattice structure and magnetism of polycrystalline CaMn_7-xGa_xO₁₂ (x = 0, 0.1, 0.2, 0.3, 0.4) synthesized by solid state method have been investigated. The refined x-ray diffraction patterns show that a well single phase Ga doped CaMn₇O₁₂ crystals can be obtained by solid state method and their lattice structure is rhombohedral with R-3. The lattice parameter a linearly decreases while parameter c linearly increases with increasing doping concentration, leading to a lattice distortion. Magnetic susceptibility and inverse susceptibility as a function of temperature show that CaMn_7-xGa_xO₁₂ and undoped CaMn₇O₁₂ behave the basically identical magnetic characterization, that is, there are two magnetic phase transitions at 90 K and 40 K. And the antiferromagnetic transitional temperature is not obviously influenced by non-magnetic Ga ions doping. However, the magnetization at temperature lower than 40 K is enhanced and there is a new transitional temperature point observed at temperature range between 40 and 90 K, which indicates that Ga ions participate into the magnetic interaction.

• Periodical: Key Engineering Materials (Volume 727)
• Pages: 359-364
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.727.359
• Online since: January 2017
• Authors: Wen Zhi Li, De Xiang Fu, Yu Zhuang Liu, Yang Wang, Liang Xie, Yong Tao Li, Wei Chen, Li Xia Wang, Hong Guang Zhang
• Keywords: CaMn₇O₁₂, Doping, Lattice Structure, Magnetism, Multiferroics

References

[1] K. F. Wang, J. M. Liu, and Z. F. Ren, Adv. Phys., 58(2009)321.

[2] D. Khomskii, Physics, 2(2009)20.

[3] J. B. Neaton, C. Ederer, U. V. Waghmare, N. A. Spaldin, and K. M. Rabe, Phys. Rev. B, 71(2005)014113.

[4] T. Kimura, T. Goto, and H. Shintani, Nature, 55(2003)426.

[5] S. Dong, and J. M. Liu, Modern Physics Letters B, 26(2012)857.

[6] R. D. Johnson, L. C. Chapon, D. D. Khalyavin, P. Manuel，P. G. Radaelli, and C. Martin, Phys. Rev. Lett., 108(2012)067201.

[7] G. Zhang, S. Dong , Z. B. Yan, and Q. Zhang, Phys. Rev. B, 84(2011)174413.

[8] X. Z. Lu, M. H. Whangbo, S. Dong ,X. G. Gong, and H. J. Xiang, Phys. Rev. Lett., 108(2012)187204.

[9] J. Sannigrahi , S. Chattopadhyay, D. Dutta, S. Giri, and S. Majumdar, J. Phys.: Condens. Matter, 25(2013)246001.

[10] H. G. Zhang, X. C. Ma, and L. Xie, International Journal of Modern Physics B, 29(2015)1550221.

[11] M. M. Seikh, V. Caignaert, O. I. Leedev, and B. Raveau, Solid State Communications, 180(2014)52.

[12] R. H. Zhang, J. Q. Dai, Z. H. Niu, Y. Li, Z. Y. Cheng, Z. Y. Wang, Chines. Journal of Inorganic Chemistry, 32(2016)762.

[13] B. H. Toby, J. Appl. Cryst, 34(2001)210.

[14] A. C. Larson, R. B. V. Dreele, Los Alamos National Laboratory Report LAUR, 86(2004)748.

[15] K. Binder, and A. P. Young, Rev. Mod. Phys., 58(1986)801.
