Investigation of Microstructure and Hardness Properties of Hardfacing Surface on SCM 440 Alloy Steel by Using Metal Active Gas and Flux Cored Arc Welding Processes

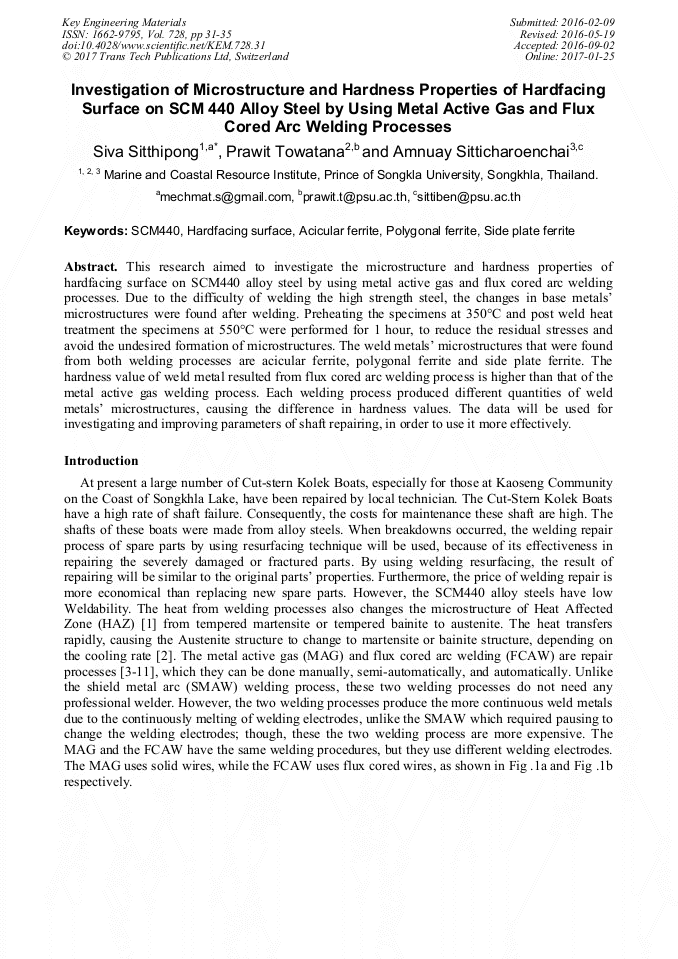

Article Preview

Abstract:

This research aimed to investigate the microstructure and hardness properties of hardfacing surface on SCM440 alloy steel by using metal active gas and flux cored arc welding processes. Due to the difficulty of welding the high strength steel, the changes in base metals’ microstructures were found after welding. Preheating the specimens at 350°C and post weld heat treatment the specimens at 550°C were performed for 1 hour, to reduce the residual stresses and avoid the undesired formation of microstructures. The weld metals’ microstructures that were found from both welding processes are acicular ferrite, polygonal ferrite and side plate ferrite. The hardness value of weld metal resulted from flux cored arc welding process is higher than that of the metal active gas welding process. Each welding process produced different quantities of weld metals’ microstructures, causing the difference in hardness values. The data will be used for investigating and improving parameters of shaft repairing, in order to use it more effectively.

You might also be interested in these eBooks

Engineering Innovation

Info:

Periodical:

Key Engineering Materials (Volume 728)

Pages:

31-35

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.728.31

Citation:

Cite this paper

Online since:

January 2017

Authors:

Siva Sitthipong*, Prawit Towatana, Amnuay Sitticharoenchai

Keywords:

Acicular Ferrite, Hardfacing Surface, Polygonal Ferrite, SCM440, Side Plate Ferrite

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2017 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] R. Hinton, R. Wiswesser, Estimating Welding Preheat Requirements for Unknown Grades of Carbon and Low-Alloy Steels, Weld J. 87 (2008) 273-278.

[2] N. Paul, E. Morris, A. Raymond, Cyclic stress strain relations and strain-controlled fatigue of 4140 steel, Acta. Metall. 24(1976) 1-10.

DOI: 10.1016/0001-6160(76)90140-1

[3] M. Anzehaee, M. Haeri, Estimation and Control of Droplet Size and Frequency in Projected Spray Mode of a Gas Metal Arc Welding (GMAW) Process, ISA Trans. 50 (2011) 409–418.

DOI: 10.1016/j.isatra.2011.02.004

[4] L. Kehai, W. Chuansong, Mechanism of Metal Transfer in DE-GMAW, J. Mater. Sci. Technol. 25 (2009) 415–418.

[5] E. Vernon, Solidification and Microstructural Characterization of Iron–Chromium Based Hardfaced Coatings Deposited by SMAW and Electric Arc Spraying, Surf. Coat. Technol. 203 (2009) 3638–364.

DOI: 10.1016/j.surfcoat.2009.05.051

[6] M. Weglowski, Y. Huang, Y. Zhang, Effect of Welding Current on Metal Transfer in GMAW, Arch. Mater. Sci. Eng. 33 (2008) 49-56.

[7] J. Luo, Q. Luo, X. Wang, EMS-CO2 Welding: A New Approach to Improve Droplet Transfer Characteristics and Welding Formation, Mater. Manuf. Process. 25 (2010) 1233-1241.

DOI: 10.1080/10426914.2010.481000

[8] J. Luo, Y. Lin, Q. Luo, Y. Wu, New Structure of Automatic Torch and New Approach for Controlling Drop Transfer in Rotating Spray Welding Arc, Sci. Technol. Weld. Joi. 9 (2004) 465-469.

DOI: 10.1179/136217104225021742

[9] R. Suzuki, State of the Art of Process Control of Molten Droplet and Pool in Gas Metal Arc Welding, Weld. Int. 26 (2012) 178-186.

DOI: 10.1080/09507116.2011.590663

[10] Y. Hirota, New Technology of the Arc Welding, Weld. Int. 25 (2011) 945-951.

[11] C. Starling, P. Modenesi T. Borba, Comparison of Operational Performance and Bead Characteristics When Welding with Different Turbular Wires, Weld. Int. 24 (2010) 579-592.

DOI: 10.1080/09507110903568810

[12] G. Magudeeswaran, V. Balasubramaniarr, G. Madhusudhan Reddy, T. S. Balasubrarnaniarr, Effect of welding processes and consumables on tensile and impact properties of high strength quenched and tempered steel joints, J. Iron. Steel. Res. Int. 15 (2008).

DOI: 10.1016/s1006-706x(08)60273-3

[13] G. Magudeesawaran, V. Balasubramanian, G. Madhusudhan Reddy, Effect of welding processes and consumables on high cycle fatigue life of high strength, quenched and tempered steel joints, Mater. Des. 29 (2008) 1821-1827.

DOI: 10.1016/j.matdes.2008.03.006

[14] G. Magudeesawaran, V. Balasubramanian, G. Madhusudhan Reddy, Effect of welding processes and consumables on fatigue crack growth behaviour of armour grade quenched and tempered steel joints, Def. Technol. 10 (2014) 47-59.

DOI: 10.1016/j.dt.2014.01.005

[15] V. Balasubramanian, Influence of Welding Consumables on High Cycle Fatigue Life of Flux Cored Arc Welded High Strength Quenched and Tempered Steel Joints, Met Mater Int. 14 (2008) 523-529.

DOI: 10.3365/met.mat.2008.08.523
