Study of Blanking Process with V-Ring Using Experiment and Finite Element Method

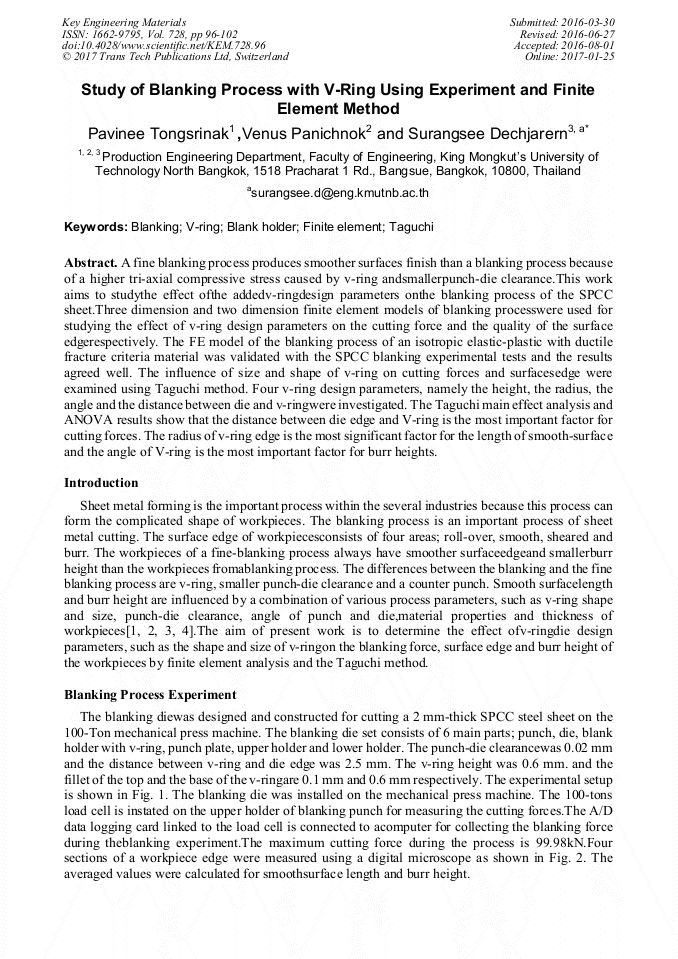

Abstract:

A fine blanking process produces smoother surfaces finish than a blanking process because of a higher tri-axial compressive stress caused by v-ring and smaller punch-die clearance. This work aims to study the effect of the added v-ring design parameters on the blanking process of the SPCC sheet. Three dimension and two dimension finite element models of blanking process were used for studying the effect of v-ring design parameters on the cutting force and the quality of the surface edge respectively. The FE model of the blanking process of an isotropic elastic-plastic with ductile fracture criteria material was validated with the SPCC blanking experimental tests and the results agreed well. The influence of size and shape of v-ring on cutting forces and surfaces edge were examined using Taguchi method. Four v-ring design parameters, namely the height, the radius, the angle and the distance between die and v-ring were investigated. The Taguchi main effect analysis and ANOVA results show that the distance between die edge and V-ring is the most important factor for cutting forces. The radius of v-ring edge is the most significant factor for the length of smooth-surface and the angle of V-ring is the most important factor for burr heights.

• Periodical: Key Engineering Materials (Volume 728)
• Pages: 96-102
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.728.96
• Online since: January 2017
• Authors: Pavinee Tongsrinak, Venus Panichnok, Surangsee Dechjarern*
• Keywords: Blank Holder, Blanking, Finite Element, Taguchi, V-Ring

References

[1] A. Mackensen a, M. Golle a, b, R. Golleand H. Hoffmann, Experimental Investigation of the Cutting Force Reduction during the Blanking Operation of AHSS Sheet Materials, Manufacturing Technology. 59 (2010) 283-286.

DOI: 10.1016/j.cirp.2010.03.110

[2] Nobuo Hatanaka et al., Simulation of Sheared Edge Formation Process in Blanking of Sheet Metals, J. Mater. Process. Tech. 140 (2003) 628-634.

DOI: 10.1016/s0924-0136(03)00803-3

[3] Zafer Tekiner, Muammer Nalbant, Hakan Gurun, An Experimental Study of The Effect of Different Clearances on Burr, Smooth-Sheared, and Blanking Force on Aluminium Sheet Metal, Materials and Design. 27 (2006) 1134-1138.

DOI: 10.1016/j.matdes.2005.03.013

[4] C. Husson1 et al., Finite Elements Simulations of Thin Copper Sheets Blanking: Study of Blanking Parameters on Sheared Edge Quality, J. Mater. Process. Tech. 199 (2008) 74-83.

DOI: 10.1016/j.jmatprotec.2007.08.034
