An In Situ End-Point Detection System Using Motor Power Signal for Chemical Mechanical Planarization Process
p.75
Development of Mixing Methods of UHMWPE/Carbon Nanotubes (CNT) Composites for Use in Artificial Joints
p.81
Use of Artificial Neural Network (ANN) to Determining Surface Parameters, Friction and Wear during Pin-on-Disc Tribotesting
p.87
Study of Unipolar and Bipolar Hip Prostheses Using Finite Element Simulation: Contact Stress Analysis
p.96
Comparative Study on Nano-Structural and Traditional Al2O3-13TiO2 Air Plasma Sprayed Coatings and their Thermal Shock Performance
p.103

An In Situ End-Point Detection System Using Motor Power Signal for Chemical Mechanical Planarization Process

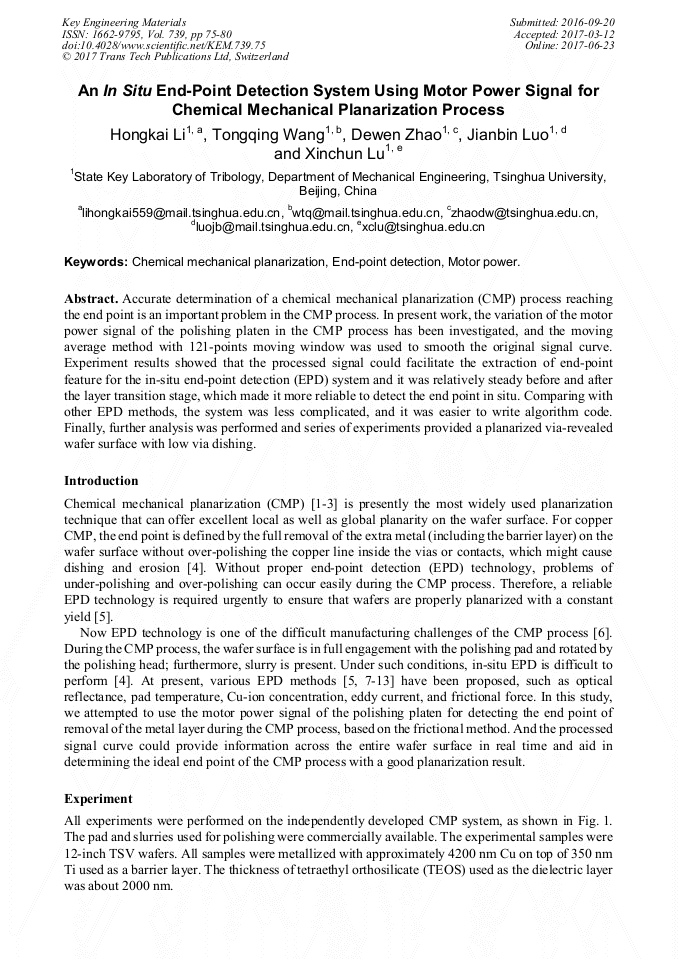

Article Preview

Abstract:

Accurate determination of a chemical mechanical planarization (CMP) process reaching the end point is an important problem in the CMP process. In present work, the variation of the motor power signal of the polishing platen in the CMP process has been investigated, and the moving average method with 121-points moving window was used to smooth the original signal curve. Experiment results showed that the processed signal could facilitate the extraction of end-point feature for the in-situ end-point detection (EPD) system and it was relatively steady before and after the layer transition stage, which made it more reliable to detect the end point in situ. Comparing with other EPD methods, the system was less complicated, and it was easier to code for algorithm development. Finally, further analysis was performed and series of experiments provided a planarized via-revealed surface with low via dishing.
