Impact of Weld Locations of TWBs of Different Thickness Ratios on Dissimilar Steels on its Bulging Formability

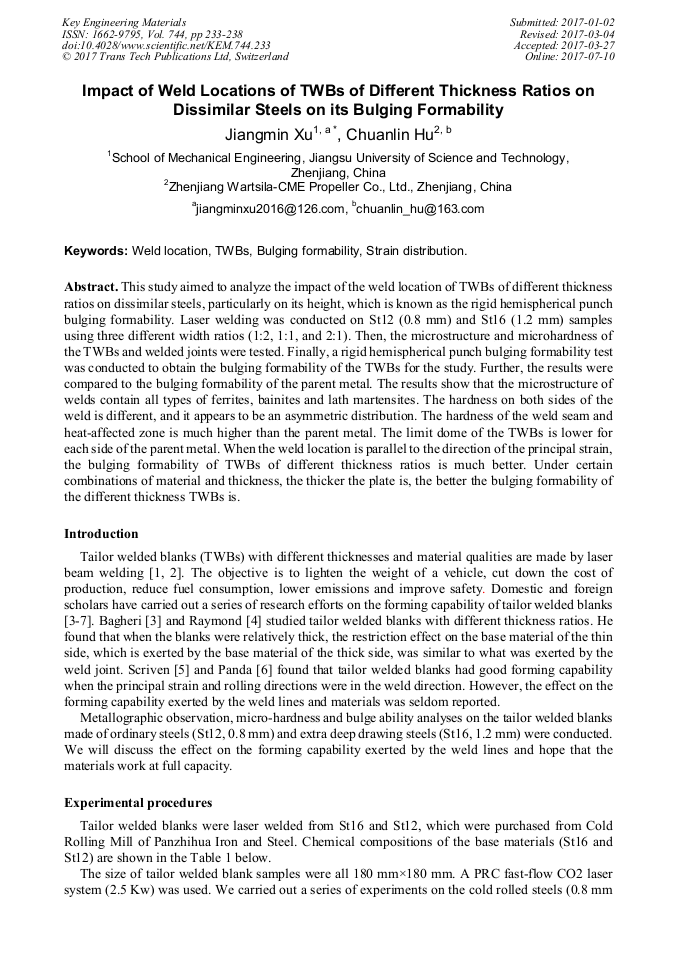

Article Preview

Abstract:

This study aimed to analyze the impact of the weld location of TWBs of different thickness ratios on dissimilar steels, particularly on its height, which is known as the rigid hemispherical punch bulging formability. Laser welding was conducted on St12 (0.8 mm) and St16 (1.2 mm) samples using three different width ratios (1:2, 1:1, and 2:1). Then, the microstructure and microhardness of the TWBs and welded joints were tested. Finally, a rigid hemispherical punch bulging formability test was conducted to obtain the bulging formability of the TWBs for the study. Further, the results were compared to the bulging formability of the parent metal. The results show that the microstructure of welds contain all types of ferrites, bainites and lath martensites. The hardness on both sides of the weld is different, and it appears to be an asymmetric distribution. The hardness of the weld seam and heat-affected zone is much higher than the parent metal. The limit dome of the TWBs is lower for each side of the parent metal. When the weld location is parallel to the direction of the principal strain, the bulging formability of TWBs of different thickness ratios is much better. Under certain combinations of material and thickness, the thicker the plate is, the better the bulging formability of the different thickness TWBs is.

You might also be interested in these eBooks
Symposium on Materials Science and Engineering View Preview

Info:

Periodical:

Key Engineering Materials (Volume 744)

Pages:

233-238

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.744.233

Citation:

Cite this paper

Online since:

July 2017

Authors:

Jiang Min Xu*, Chuan Lin Hu

Keywords:

Bulging Formability, Strain Distribution, TWBs, Weld Location

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2017 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] K. Krishnan, B. M. Bravar, Comparison of analytical model to experimental and numerical simulations results for tailor welded blank forming, J. Man. Sci. Eng. 129 (2007) 211-215.

DOI: 10.1115/1.2401628

Google Scholar

[2] M. Abbasi, M. Ketabchi, H. R. Shakeri, et al. Formability Enhancement of Galvanized IF-Steel TWB by Modification of Forming Parameters. J. Mater. Eng. Perform. 21(4) (2012) 564-571.

DOI: 10.1007/s11665-011-9946-8

Google Scholar

[3] B. Bagheri, M. Abbasi, M. Ketabchi. Application of response surface methodology to drive GTN model parameters and determine the FLD of tailor welded blank, Comp. Mat. Sci. 53 (2012) 368-376.

DOI: 10.1016/j.commatsci.2011.08.020

Google Scholar

[4] S. D. Raymond, P. M. Wild, C. J. Bayley, On modeling of the weld line in finite element analyses of tailor-welded blank forming operations. J. Mat. Proc. Tec. 147 (2004) 28-37.

DOI: 10.1016/j.jmatprotec.2003.09.005

Google Scholar

[5] P. J. Scriven, J. A. Brandon, N. T. Williams, Relative influence of sheet rolling direction and weld orientation on formability of laser welded steel sheet. Iron. Steel. 24 (1997) 79-83.

Google Scholar

[6] S. K. Panda, D. R. Kumar, Study of formability of tailor-welded blanks in plane-strain stretch forming. Int. J. Adv. Manuf. Tech. 44 (2009) 675-685.

DOI: 10.1007/s00170-008-1888-4

Google Scholar

[7] H. R. Shakeri, M. Abbasi, M. Ketabchi, Formability Enhancement of Galvanized IF-Steel TWB by Modification of Forming Parameters. J. Mat. Eng. Per. 21 (2012) 564-571.

DOI: 10.1007/s11665-011-9946-8

Google Scholar
