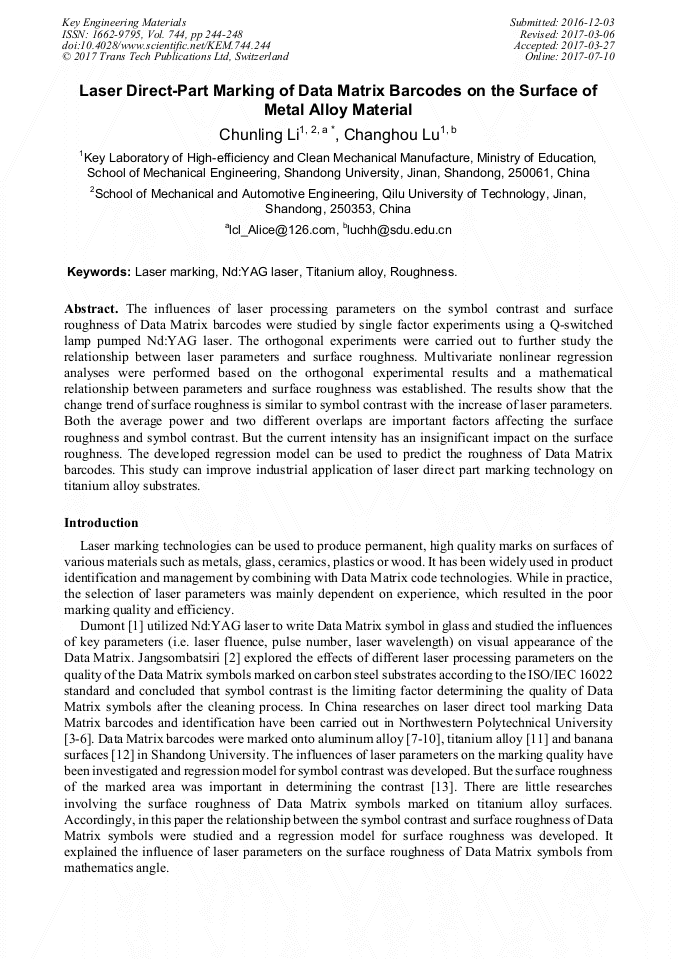

Laser Direct-Part Marking of Data Matrix Barcodes on the Surface of Metal Alloy Material

Abstract:

The influences of laser processing parameters on the symbol contrast and surface roughness of Data Matrix barcodes were studied by single factor experiments using a Q-switched lamp pumped Nd:YAG laser. The orthogonal experiments were carried out to further study the relationship between laser parameters and surface roughness. Multivariate nonlinear regression analyses were performed based on the orthogonal experimental results and a mathematical relationship between parameters and surface roughness was established. The results show that the change trend of surface roughness is similar to symbol contrast with the increase of laser parameters. Both the average power and two different overlaps are important factors affecting the surface roughness and symbol contrast. But the current intensity has an insignificant impact on the surface roughness. The developed regression model can be used to predict the roughness of Data Matrix barcodes. This study can improve industrial application of laser direct part marking technology on titanium alloy substrates.

• Periodical: Key Engineering Materials (Volume 744)
• Pages: 244-248
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.744.244
• Online since: July 2017
• Authors: Chun Ling Li*, Chang Hou Lu
• Keywords: Laser Marking, Nd:YAG Laser, Roughness, Titanium Alloy

References

[1] Th. Dumont, T. Lippert, A. Wokaun, P. Leyvraz, Laser writing of 2D data matrices in glass, Thin Solid Films. 453/454 (2004) 42−45.

DOI: 10.1016/j.tsf.2003.11.148

[2] W. Jangsombatsiri, J. David Porter, Laser direct-part marking of Data Matrix symbols on carbon steel substrates, J. Manuf. Sci. Eng. 129 (2007) 583-591.

DOI: 10.1115/1.2716704

[3] S. A. Wang, W. P. He, W. Zhang, Direct tool marking and identification method, Comput. Ingetra. Manuf. Sys. 13(2007) 1169-1174.

[4] Z. F. Xie, W. Zhang, L. Lei, Optimization of laser marking process parameters on 2D barcode in part surface, Chin. Mech. Eng. 22 (2011) 592-596.

[5] X. S. Li, W. P. He, L. Lei, Y. F. Xu, B. H. Song, Q. N. Tian, Process and Optimal Parameter Domain of Laser Marking Two-Dimension Code, Chinese J. Lasers. 41 (2014) 78-84.

DOI: 10.3788/cjl201441.0703006

[6] X. S. Li, W. P. He, L. Lei, J. Wang, G. F. Guo, T. Y. Zhang, T. Yue, Laser direct marking applied to rasterizing miniature data matrix code on aluminum alloy, Opt. Laser Technol. 77 (2016) 31-39.

DOI: 10.1016/j.optlastec.2015.08.020

[7] H. D. Qiu, C. H. Lu, R. J. Xiao, Laser parameters influence in direct-part marking barcodes on aluminum alloy, Chinese J. Lasers. 38 (2011) 95-99.

DOI: 10.3788/cjl201138.0803006

[8] J. M. Li, C. H. Lu, A. Q. Wang, Y. S. Wu, Z. Ma, X. X. Fang, L. Tao, Experimental investigation and mathematical modeling of laser marking two-dimensional barcodes on surfaces of aluminum alloy, J. Manuf. Process. 21 (2016) 141–152.

DOI: 10.1016/j.jmapro.2015.12.007

[9] Y. S. Wu, J. M. Li, C. H. Lu, J. Q. Zhang, J. R. Li, Influence of laser parameters on quality of laser direct marked data matrix symbols on aluminum alloy, J. Mech. Electr. Eng. 31 (2014) 865-869.

[10] X. X. Fang, J. M. Li, C. H. Lu, Z. Ma, L. Tao, Highlight area reconstruction of Data Matrix barcodes marked on metal surface, Comput. Eng. Appl. 52 (2016) 205-209.

[11] C. L. Li, C. H. Lu, J. M. Li, Laser Direct Part Marking parameters based on 2D-barcodes quality, J. Cent. South U-Sci. Technol. 46 (2015) 4488-4496.

[12] Z. Ma, J. M. Li, C. H. Lu, J. Q. Zhang, X. X. Fang, Study on Laser Marking Two Dimensional Barcodes on Banana Surfaces, Appl. Lasers. 35 (2015) 88-92.

[13] C. Leone, S. Genna, G. Caprino, I. De Iorio, AISI 304 stainless steel marking by a Q-switched diode pumped Nd: YAG laser, J. Mater. Process. Tech. 210 (2010) 1297–1303.

DOI: 10.1016/j.jmatprotec.2010.03.018

[14] J. Qi, K. L. Wang, Y. M. Zhu, A study on the laser marking process of stainless steel, J. Mater. Process. Tech. 139 (2003) 273–276.
