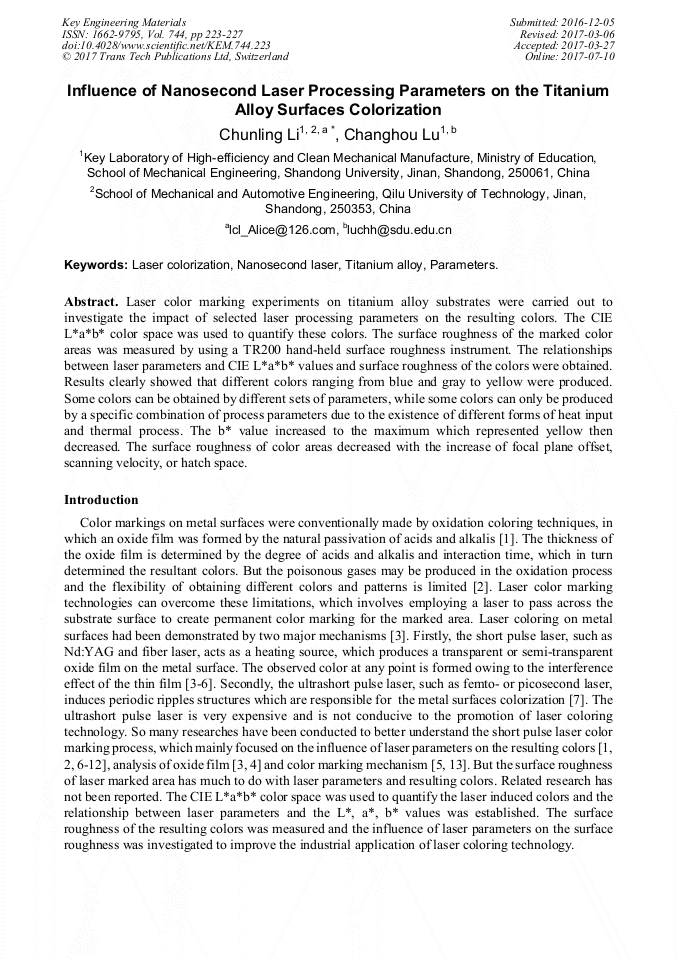

Influence of Nanosecond Laser Processing Parameters on the Titanium Alloy Surfaces Colorization

Abstract:

Laser color marking experiments on titanium alloy substrates were carried out to investigate the impact of selected laser processing parameters on the resulting colors. The CIE L*a*b* color space was used to quantify these colors. The surface roughness of the marked color areas was measured by using a TR200 hand-held surface roughness instrument. The relationships between laser parameters and CIE L*a*b* values and surface roughness of the colors were obtained. Results clearly showed that different colors ranging from blue and gray to yellow were produced. Some colors can be obtained by different sets of parameters, while some colors can only be produced by a specific combination of process parameters due to the existence of different forms of heat input and thermal process. The b* value increased to the maximum which represented yellow then decreased. The surface roughness of color areas decreased with the increase of focal plane offset, scanning velocity, or hatch space.

• Periodical: Key Engineering Materials (Volume 744)
• Pages: 223-227
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.744.223
• Online since: July 2017
• Authors: Chun Ling Li, Chang Hou Lu
• Keywords: Laser Colorization, Nanosecond Laser, Parameters, Titanium Alloy

References

[1] T. Q. Huang, J. M. Li, C. H. Lu, A. Q. Wang, J. Q. Zhang, Laser-induced color marking on 304 stainless steel by Nd: YAG nanosecond laser, Appl. Laser. 33 (2013) 586-590.

DOI: 10.3788/al20133306.0586

[2] H. Y. Zheng, Laser-induced colours on metal surfaces. SIMTech Technical Report PT/01/005/AM, 2001, p.15.

[3] Z. L. Li, H. Y. Zheng, K. M. Teh, Y. C. Liu, G. C. Lim, H. L. Seng, N. L. Yakovlev, Analysis of oxide formation induced by UV laser coloration of stainless steel, Appl. Surf. Sci. 256 (2009) 1582-1588.

DOI: 10.1016/j.apsusc.2009.09.025

[4] S. K. Lawrence, D. P. Adams, D. F. Bahr, N. R. Moody, Mechanical and electromechanical behavior of oxide coatings grown on stainless steel 304L by nanosecond pulsed laser irradiation, Surf. Coat. Technol. 235 (2013) 860-866.

DOI: 10.1016/j.surfcoat.2013.09.013

[5] L. Guo, Y. T. Lin, Z. H. Zhang, Q, M, Zhang, Mechanism of Laser Coloration of Stainless Steel and Color Prediction Based on Neural Network, Chinese J. Lasers. 43 (2016) 1102008.

DOI: 10.3788/cjl201643.1102008

[6] V. Veiko, G. Odintsova, E. Gorbunova, E. Ageev, A. Shimko, Y. Karlagina, Y. Andreeva, Development of complete color palette based on spectrophotometric measurements of steel oxidation results for enhancement of color laser marking technology, Mater. Des. 89 (2016).

DOI: 10.1016/j.matdes.2015.10.030

[7] F. Bai, W. Z. Fan, Y. B. Li, H. H. Pan, H. J. Li, Q. Z. Zhao, Influence of Overlapping Rate of Focused Femtosecond Laser Spot on the Silicon Surfaces Colorization, Chinese J. Lasers. 43 (2016) 141-147.

DOI: 10.3788/cjl201643.0703001

[8] P. Laakso, S. Ruotsalainen, H. Pantsar, R. Penttilä, Relation of laser parameters in color marking of stainless steel, Physica B. s 378-380 (2009) 563-564.

[9] A. J. Antończak, D. Kocoń, M. Nowak, P. Kozioł, K. M. Abramski, Laser-induced colour marking—sensitivity scaling for a stainless steel, Appl. Surf. Sci. 264 (2013) 229-236.

DOI: 10.1016/j.apsusc.2012.09.178

[10] A. J. Antończak, B. Stępak, P. E. Kozioł, K. M. Abramski, The influence of process parameters on the laser-induced coloring of titanium, Appl. Phys. A. 115 (2013) 1003-1013.

DOI: 10.1007/s00339-013-7932-8

[11] E. H. Amara, F. Haïd, A. Noukaz, Experimental investigations on fiber laser color marking of steels, Appl. Surf. Sci. 351 (2015) 1-12.

DOI: 10.1016/j.apsusc.2015.05.095

[12] Z. M. Liu, Q. M. Zhang, L. Guo, Q. T. Lü, K. Yang, Influence of Laser Process Parameters on Color Obtained by Marking, Chinese J. Lasers. 41 (2014) 121-127.

[13] Z. H. Zhang, Q. M. Zhang, L. Guo, Y. T. Lin, Research on Color Marking Mechanism based on Nanosecond Laser, Appl. Laser. 36 (2016) 331-336.
