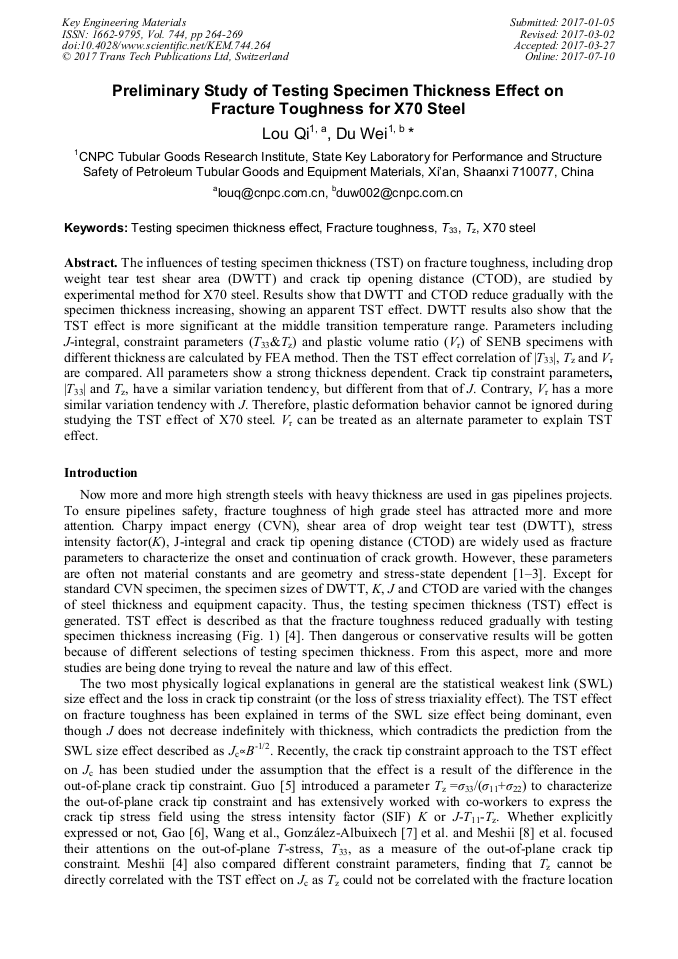

Preliminary Study of Testing Specimen Thickness Effect on Fracture Toughness for X70 Steel

Abstract:

The influences of testing specimen thickness (TST) on fracture toughness, including drop weight tear test shear area (DWTT) and crack tip opening distance (CTOD), are studied by experimental method for X70 steel. Results show that DWTT and CTOD reduce gradually with the specimen thickness increasing, showing an apparent TST effect. DWTT results also show that the TST effect is more significant at the middle transition temperature range. Parameters including J-integral, constraint parameters (T₃₃&T_z) and plastic volume ratio (V_r) of SENB specimens with different thickness are calculated by FEA method. Then the TST effect correlation of |T₃₃|, T_z and V_r are compared. All parameters show a strong thickness dependent. Crack tip constraint parameters, |T₃₃| and T_z, have a similar variation tendency, but different from that of J. Contrary, V_r has a more similar variation tendency with J. Therefore, plastic deformation behavior cannot be ignored during studying the TST effect of X70 steel. V_r can be treated as an alternate parameter to explain TST effect.

• Periodical: Key Engineering Materials (Volume 744)
• Pages: 264-269
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.744.264
• Online since: July 2017
• Authors: Qi Lou, Wei Du*
• Keywords: Fracture Toughness, T₃₃, Testing Specimen Thickness Effect, T_z, X70 Steel

References

[1] C. F. Shih, M. D. German, Requirements for a one parameter characterization of crack tip fields by the HRR singularity. Int. J. Fract. 17(1) (1981) 27-43.

DOI: 10.1007/bf00043119

[2] T. V. Pavankumar, J. Chattopadhyay, B. K. Dutta, H. S. Kushwaha, Transferability of specimen JR- curve to straight pipes with through wall circumferential flaws. Int. J. Press. Vessel. Pip. 79(2) (2002) 127-134.

DOI: 10.1016/s0308-0161(01)00134-x

[3] K. R. Wallin. Critical assessment of the standard ASTM E 399J. n 1461, Fatigue and Fracture Mechanics,. ASTM Special Technical Publication, (2005).

[4] T. Meshii, K. Lu, Y. Fujiwarab, Extended investigation of test specimen thickness (TST) effect on the fracture toughness (Jc) of a material in the transition temperature region as a difference in the crack tip constraint - what is a loss in constraint in the TST effect on Jc?. 20th European Conference on Fracture (ECF20), Proc. Mater. Sci. 3 (2014).

DOI: 10.1016/j.mspro.2014.06.013

[5] W. L. Guo, Elastoplastic Three Dimensional Crack Border Field-I. Singular Structure of the Field. Eng. Fract. Mech. 46 (1993) 93-104.

DOI: 10.1016/0013-7944(93)90306-d

[6] H. Gao, Variation of Elastic T-stresses along Slightly Wavy 3D Crack Fronts. Int. J. Fract. 58 (1992) 241-257.

DOI: 10.1007/bf00015618

[7] V. F. González-Albuixech, E. Giner, J. Fernández-Sáez, A. Fernández-Canteli, Influence of the T33-stress on the 3-D Stress State around Corner Cracks in an Elastic Plate. Eng. Fract. Mech. 78 (2011) 412-427.

DOI: 10.1016/j.engfracmech.2010.11.003

[8] T. Meshii, T. Tanaka, Experimental T33-stress formulation of test specimen thickness effect on fracture toughness in the transition temperature region. Eng. Fract. Mech. 77 (2010) 867-877.

DOI: 10.1016/j.engfracmech.2010.01.014

[9] C. Ruggieri, E. Hippert. Delamination effects on fracture behavior of a pipeline steel: A numerical investigation of 3D crack front fields and constraint. Int. J. Press. Vessel. Pip. 128 (2015) 18-35.

DOI: 10.1016/j.ijpvp.2015.01.004

[10] K. J. Han, J. Shuai, X. M. Deng, et al. The effect of constraint on CTOD fracture toughness of API X65 steel. Eng. Fract. Mech. 124-125 (2014) 167-181.

DOI: 10.1016/j.engfracmech.2014.04.014

[11] T. Nakamura, D. M. Parks. Determination of elastic T-stress along three-dimensional crack fronts using an interaction integral. Int. J. Solid. Struct. 29(13) (1992) 1597.

DOI: 10.1016/0020-7683(92)90011-h

[12] J. Qu, X. Wang, Solutions of T-stresses for quarter-elliptical corner cracks in finite thickness plates subject to tension and bending. Int. J. Press. Vessel. Pip. 83(8) (2006) 593-606.

DOI: 10.1016/j.ijpvp.2006.04.003

[13] X. Wang, R. Bell. Elastic T-stress solutions for semi-elliptical surface cracks in finite thickness plates subject to non-uniform stress distributions. Eng. Fract. Mech. 71(9-10) (2004) 1477.

DOI: 10.1016/s0013-7944(03)00140-1

[14] J. Zhao, W. Guo, C. She, The in-plane and out-of-plane stress constraint factors and K-T-Tz description of stress field near the border of a semi-elliptical surface crack. Int. J. Fat. 29(3) (2007) 435.

DOI: 10.1016/j.ijfatigue.2006.05.005

[15] T. Lewis, X. Wang, The T-stress solutions for through-wall circumferential cracks in cylinders subjected to general loading conditions. Eng. Fract. Mech. 75(10) (2008) 3206.

DOI: 10.1016/j.engfracmech.2007.12.001
