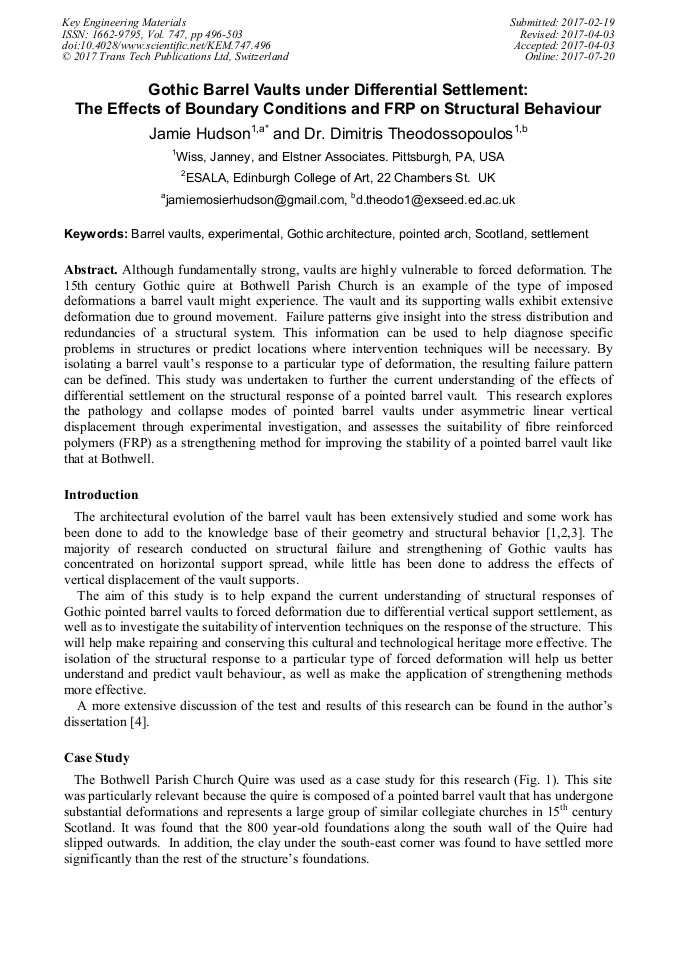

Gothic Barrel Vaults under Differential Settlement: The Effects of Boundary Conditions and FRP on Structural Behaviour

Abstract:

Vaults are fundamentally strong structures, however, they are particularly susceptible to forced deformation. The 15th century Gothic quire at Bothwell Parish Church is an example of the type of imposed deformations a barrel vault might experience. The vault and its supporting walls exhibit extensive deformation due to ground movement. Failure patterns give insight into the stress distribution and redundancies of a structural system. This information can be used to help diagnose specific problems in structures or predict locations where intervention techniques will be necessary. By isolating a barrel vault’s response to a particular type of deformation, the resulting failure pattern can be defined. This study was undertaken to further the current understanding of the effects of differential settlement on the structural response of a pointed barrel vault. This research explores the pathology and collapse modes of pointed barrel vaults under asymmetric linear vertical displacement through experimental investigation, and assesses the suitability of fibre reinforced polymers (FRP) as a strengthening method for improving the stability of a pointed barrel vault like that at Bothwell.

• Periodical: Key Engineering Materials (Volume 747)
• Pages: 496-503
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.747.496
• Online since: July 2017
• Authors: Jamie Hudson*, Dimitris Theodossopoulos
• Keywords: Barrel Vaults, Experimental, Gothic Architecture, Pointed Arch, Scotland, Settlement

References

[1] Fawcett, R., The architecture of the Scottish medieval church 1100-1560, Yale University Press, New Haven, Connecticut, (2011).

[2] Rudolph, C., Artistic Change at St-Denis: Abbot Suger's program and the Early Twelfth-Century Controversy Over Art, Princeton University Press, Princeton, New Jersey, (1990).

DOI: 10.2307/3168268

[3] Theodossopoulos D, Makoond N, Lily A., The Effect of Boundary Conditions on the Behaviour of Pointed Masonry Barrel Vaults: Late Gothic Cases in Scotland, The Open Construction and Building Technology Journal, 10 (2016) 274-292.

DOI: 10.2174/1874836801610010274

[4] Hudson, J.M., Structural Behaviour of Gothic Barrel Vaults Under Differential Settlement: An investigation into the effects of boundary conditions on vault behaviour and FRP as an intervention technique, University of Edinburgh (2016).

DOI: 10.4028/www.scientific.net/kem.747.496

[5] Theodossopoulos D., Sinha B.P., Usmani, A.S., Case study of the failure of a cross vault: Church of Holyrood Abbey, Journal of Architectural Engineering (2003) 109-117.

DOI: 10.1061/(asce)1076-0431(2003)9:3(109)

[6] Simulia DS, Abaqus/CAE User's Manual, Providence, Rhode Island, (2007).
