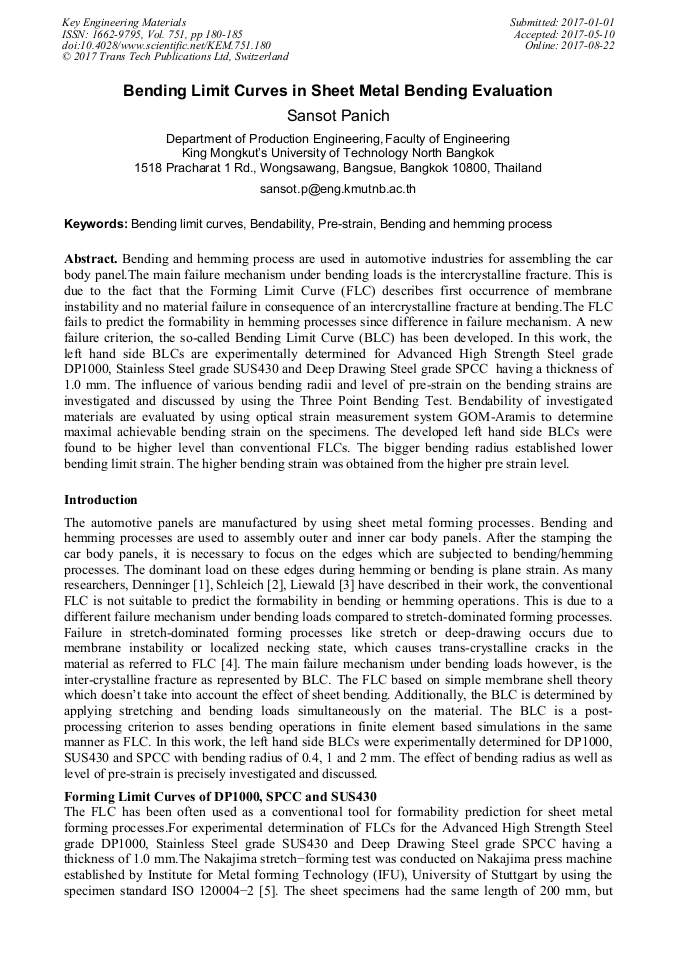

Bending Limit Curves in Sheet Metal Bending Evaluation

Abstract:

Bending and hemming process are used in automotive industries for assembling the car body panel.The main failure mechanism under bending loads is the intercrystalline fracture. This is due to the fact that the Forming Limit Curve (FLC) describes first occurrence of membrane instability and no material failure in consequence of an intercrystalline fracture at bending.The FLC fails to predict the formability in hemming processes since difference in failure mechanism. A new failure criterion, the so-called Bending Limit Curve (BLC) has been developed. In this work, the left hand side BLCs are experimentally determined for Advanced High Strength Steel grade DP1000, Stainless Steel grade SUS430 and Deep Drawing Steel grade SPCC having a thickness of 1.0 mm. The influence of various bending radii and level of pre-strain on the bending strains are investigated and discussed by using the Three Point Bending Test. Bendability of investigated materials are evaluated by using optical strain measurement system GOM-Aramis to determine maximal achievable bending strain on the specimens. The developed left hand side BLCs were found to be higher level than conventional FLCs. The bigger bending radius established lower bending limit strain. The higher bending strain was obtained from the higher pre strain level.

• Periodical: Key Engineering Materials (Volume 751)
• Pages: 180-185
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.751.180
• Online since: August 2017
• Authors: Sansot Panich*
• Keywords: Bendability, Bending Limit Curves, Bending Process, Hemming Process, Pre-Strain

References

[1] R. Denninger, M. Liewald, C. Held, M. Sindel, in Proceeding of the14th International ESAFORM Conference on Material Forming, ESAFORM 2011, Belfast, United Kingdom (2011), 1601-1605.

[2] R. Schleich, M. Sindel, M. Liewald, Int. J. Mater. Form. 2 (2009) 69–74.

[3] M. Liewald, S. Wagner, Acad. J. Manuf. Eng. 11(2013) 1–8.

[4] M. Liewald, K. Drotleff, in Proceeding of the International FLC 2014 Workshop, FLC 2014, Zurich, Switzerland, (2014), 17–22.

[5] International Standard ISO 12004-2 Metallic materials - Sheet and strip – Determination of forming-limit curves. Part 2: Determination of forming-limit curves in the laboratory, (2008).

DOI: 10.3403/30150423u

[6] VDA 238–100(Test Specification), Plate bending test for metallic materials, (2010), 1–13.

[7] K. Saxena, I. Das, J. Mukhopadhyay, Int. J. Mater. Form. 8 (2015) 1-11.

[8] R. Denninger, M. Liewald, M. Sindel, in Proceeding of the15th International ESAFORM Conference on Material Forming, ESAFORM 2012, Erlangen-Nuremberg, Germany, (2012), 101–106.
