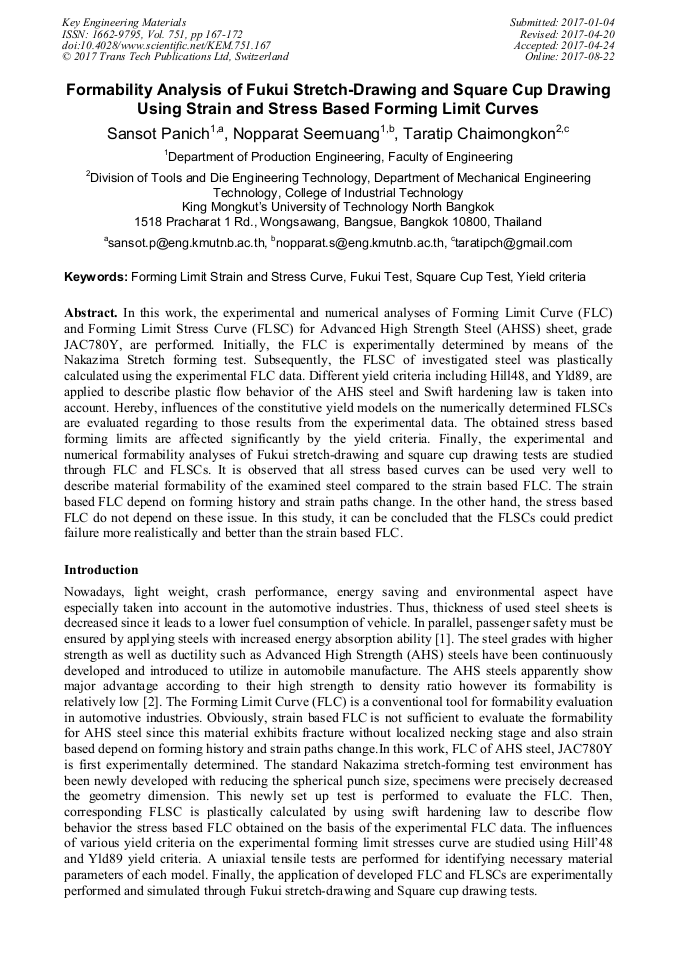

Formability Analysis of Fukui Stretch-Drawing and Square Cup Drawing Using Strain and Stress Based Forming Limit Curves

Abstract:

In this work, the experimental and numerical analyses of Forming Limit Curve (FLC) and Forming Limit Stress Curve (FLSC) for Advanced High Strength Steel (AHSS) sheet, grade JAC780Y, are performed. Initially, the FLC is experimentally determined by means of the Nakazima Stretch forming test. Subsequently, the FLSC of investigated steel was plastically calculated using the experimental FLC data. Different yield criteria including Hill48, and Yld89, are applied to describe plastic flow behavior of the AHS steel and Swift hardening law is taken into account. Hereby, influences of the constitutive yield models on the numerically determined FLSCs are evaluated regarding to those results from the experimental data. The obtained stress based forming limits are affected significantly by the yield criteria. Finally, the experimental and numerical formability analyses of Fukui stretch-drawing and square cup drawing tests are studied through FLC and FLSCs. It is observed that all stress based curves can be used very well to describe material formability of the examined steel compared to the strain based FLC. The strain based FLC depend on forming history and strain paths change. In the other hand, the stress based FLC do not depend on these issue. In this study, it can be concluded that the FLSCs could predict failure more realistically and better than the strain based FLC.

• Periodical: Key Engineering Materials (Volume 751)
• Pages: 167-172
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.751.167
• Online since: August 2017
• Authors: Sansot Panich*, Nopparat Seemuang, Taratip Chaimongkon
• Keywords: Forming Limit Curve, Forming Limit Stress Curve, Fukui Test, Square Cup Test, Yield Criteria

References

[1] S. Panich, F. Barlat, V. Uthaisangsuk, S. Suranuntchai, S. Jirathearanat, Mater. Sci. Forum. 773-774 (2014) 109-114.

DOI: 10.4028/www.scientific.net/msf.773-774.109

[2] S. Panich, F. Barlat, V. Uthaisangsuk, S. Suranuntchai, S. Jirathearanat, Mater. Des. 51 (2013) 756–766.

DOI: 10.1016/j.matdes.2013.04.080

[3] International Standard ISO 12004-2 Metallic materials - Sheet and strip – Determination of forming-limit curves. Part 2: Determination of forming-limit curves in the laboratory, (2008).

DOI: 10.3403/30150423u

[4] V. Uthaisangsuk, U. Prahl, S. Mueunstermann, W. Bleck, Comput. Mater. Sci. 43 (2008) 43-50.

[5] M.C. Butuc, J.J. Gracio, A.B. Da Rocha, Int. J. Mech. Sci. 48 (2006) 414-429.

[6] R. Hill, in: Proceeding of Royal Society, London, A 193 (1948) 281-297.

[7] F. Barlat, J. Lian, Int. J. Plast. 5 (1989) 51-66.

[8] P. Dasappa, K. Inal, R. Mishra, Int.J. Sol. Struc. 49 (2012) 3528-3550.

[9] T. B. Stoughton, Int. J. Mech. Sci. 42 (2000) 1-27.

[10] H. W. Swift, J. Mech. Phys. Solids. 1 (1952) 1-18.

[11] K. Nakazima, T. Kikuuma, K. Hasuka, (1971) Yawata Tech Report 284: 678-680.
