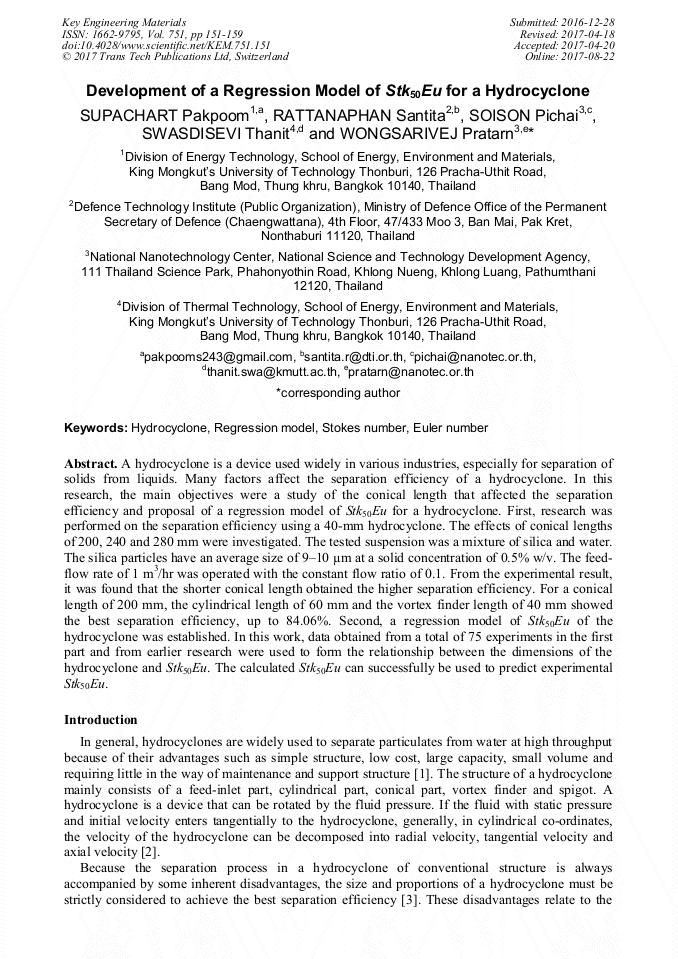

Development of a Regression Model of Stk₅₀Eu for a Hydrocyclone

Abstract:

A hydrocyclone is a device used widely in various industries, especially for separation of solids from liquids. Many factors affect the separation efficiency of a hydrocyclone. In this research, the main objectives were a study of the conical length that affected the separation efficiency and proposal of a regression model of Stk₅₀Eu for a hydrocyclone. First, research was performed on the separation efficiency using a 40-mm hydrocyclone. The effects of conical lengths of 200, 240 and 280 mm were investigated. The tested suspension was a mixture of silica and water. The silica particles have an average size of 9–10 μm at a solid concentration of 0.5% w/v. The feed-flow rate of 1 m³/hr was operated with the constant flow ratio of 0.1. From the experimental result, it was found that the shorter conical length obtained the higher separation efficiency. For a conical length of 200 mm, the cylindrical length of 60 mm and the vortex finder length of 40 mm showed the best separation efficiency, up to 84.06%. Second, a regression model of Stk₅₀Eu of the hydrocyclone was established. In this work, data obtained from a total of 75 experiments in the first part and from earlier research were used to form the relationship between the dimensions of the hydrocyclone and Stk₅₀Eu. The calculated Stk₅₀Eu can successfully be used to predict experimental Stk₅₀Eu.

• Periodical: Key Engineering Materials (Volume 751)
• Pages: 151-159
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.751.151
• Online since: August 2017
• Authors: Pakpoom Supachart, Santita Rattanaphan, Pichai Soison, Thanit Swasdisevi, Pratarn Wongsarivej*
• Keywords: Euler Number, Hydrocyclone, Regression Model, Stokes Number

References

[1] R.K. Dwari, M.N. Biswas, B.C. Meikap, Performance characteristics for particles of sand FCC and fly ash in a novel hydrocyclone, Chem. Eng. Sci. 59 (2004) 671–684.

DOI: 10.1016/j.ces.2003.11.015

[2] D. Bradley, The Hydrocyclone, first ed., Pergamon, London, U.K., 1965, p.2.

[3] L.Y. Chu, W.M. Chen, X.Z. Lee, Effect of structural modification on hydrocyclone performance, Sep. Purif. Technol. 21 (2000) 71–86.

[4] L.Y. Chu, Q. Luo, Hydrocyclone with high separation sharpness, Filtr. & Sep. 31 (1994) 733–736.

[5] P. Supachart, P. Kruakaew, T. Swasdisevi, P. Wongsarivej, Effects of vortex finder, inlet, and body diameter on separation efficiency of hydrocyclone for crude palm oil industry, Key Eng. Mater. 659 (2015) 652–658.

DOI: 10.4028/www.scientific.net/kem.659.652

[6] E.C. Statie, M.E. Salcudean, I.S. Gartshore, The influence of hydrocyclone geometry on separation and fibre classification, Filtr. & Sep. 38 (2001) 36–41.

DOI: 10.1016/s0015-1882(01)80380-3

[7] R. Xiang, S.H. Park, K.W. Lee, Effects of cone dimension on cyclone performance, J. Aerosol Sci. 32 (2001) 549–561.

DOI: 10.1016/s0021-8502(00)00094-x

[8] H. Yoshida, Y. Hayase, K. Fukui, T. Yamamoto, Effect of conical length on separation performance of sub-micron particles by electrical hydro-cyclone, Powder Technol. 219 (2012) 29–36.

DOI: 10.1016/j.powtec.2011.12.002

[9] N. Orrasin, T. Swasdisevi, P. Wongsarivej, Regression model for pressure drop of 50 mm solid–liquid hydrocyclone, KMUTT Research and Development Journal 1 (2014) 29–41.

[10] R. Sabbagh, M.G. Lipsett, C.R. Koch, D.S. Nobes, An experimental investigation on hydrocyclone underflow pumping, Powder Technol. 305 (2016) 98–107.

DOI: 10.1016/j.powtec.2016.09.045

[11] R.K. Dubey, E. Climent, C. Banerjee, A.K. Majumder, Performance monitoring of a hydrocyclone based on underflow discharge angle, Int. J. Miner. Process. 154 (2016) 41–52.

DOI: 10.1016/j.minpro.2016.07.002

[12] K. Heiskanen, Particle Classification, first ed., Chapman & Hall, London, 1993, p.71–74.

[13] L. Svarovsky, Solid–Liquid Separation, fourth ed., Butterworth-Heinemann, Oxford, 2000, p.214.

[14] M. Antunes, R.A. Medronho, Bradley hydrocyclone, Design and performance analysis, in: L. Svarovsky, M.T. Thew (Eds. ), Hydrocyclones. Analysis and Applications. Dordrecht: Kluwer Academic Publishers, 1992, p.3–13.

DOI: 10.1007/978-94-015-7981-0_1

[15] R. Azevedo, C.O. Veloso, R.A. Medronho, Performance dehidrociclones cbv-demco 4h, in: Proceedings of the XXII Brazilian Congress on Particulate Systems, Friburgo, Brazil, 1990, p.481–488.

[16] M.A.Z. Coelho, R.A. Medronho, A model for performance prediction of hydrocyclones, Chem. Eng. J. 84 (2001) 7–14.

[17] Information on https: /en. wikipedia. org/wiki/Mean_squared_error.

[18] P. Wongsarivej, W. Tanthapanichakoon, H. Yoshida, K. Fukui, Classification of silica fine particles using a novel electric hydrocyclone, Sci. Technol. Adv. Mater. 6 (2005) 364–369.

[19] L.F. Martinez, A.G. Lavin, M.M. Mahamud, J.L. Bueno, Vortex finder optimum length in hydrocyclone separation, Chem. Eng. Process. 47 (2008) 192–199.

DOI: 10.1016/j.cep.2007.03.003
