Effect of Powder Activated Carbon Circulation Rate on SO2 Adsorption

Abstract:

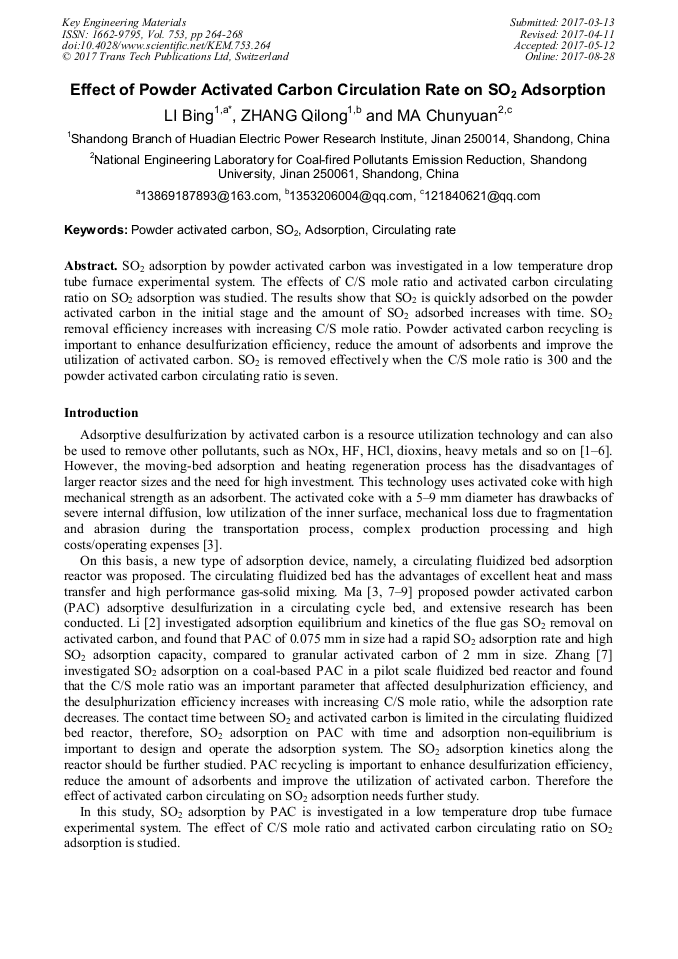

Article Preview

SO2 adsorption by powder activated carbon was investigated in a low temperature drop tube furnace experimental system. The effects of C/S mole ratio and activated carbon circulating ratio on SO2 adsorption was studied. The results show that SO2 is quickly adsorbed on the powder activated carbon in the initial stage and the amount of SO2 adsorbed increases with time. SO2 removal efficiency increases with increasing C/S mole ratio. Powder activated carbon recycling is important to enhance desulfurization efficiency, reduce the amount of adsorbents and improve the utilization of activated carbon. SO2 is removed effectively when the C/S mole ratio is 300 and the powder activated carbon circulating ratio is seven.

Info:

Periodical:

Edited by:

Prof. Dong Keon Kim

Pages:

264-268

Citation:

B. Li et al., "Effect of Powder Activated Carbon Circulation Rate on SO2 Adsorption", Key Engineering Materials, Vol. 753, pp. 264-268, 2017

Online since:

August 2017

Export:

Price:

$41.00

* - Corresponding Author

[1] I. Mochida, Y. Korai, M. Shirahama, Removal of SOx and NOx over activated carbon fibers, Carbon. 38 (2000) 227-239.

DOI: https://doi.org/10.1016/s0008-6223(99)00179-7

[2] B. Li, L. Q. Zhang, H. T. Jiang, Z. H. Wang, C. Y. Ma, Adsorption equilibrium and kinetics of SO2 on activated carbon, J. Chin. Coal. Soc. 37 (2012) 1737-1742.

[3] B. Li, Experimental Study on adsorption removal of SO2 from flue gas by powder activated carbon in circulating fluidized bed, Shan Dong University, Jinan, (2012).

[4] J. X. Gao, Studies of flue gas purification and sulfur recovery process by carbon moving bed temperature swing adsorption method, Tsinghua University, Beijing, (2010).

[5] S. Kisamori, K. Kuroda, S. Kawano, Oxidative removal of SO2 and recovery of H2SO4 over poly (acrylonitrile)-based activated carbon fibers, Energy Fuels, 11 (1994) 1337-1341.

DOI: https://doi.org/10.1021/ef00048a023

[6] E. R. Pinero, D. C. Amoros, L. Martinez, Factors controling the SO2 removal by porous carbons relevance of the SO2 oxidation step, Carbon, 38 (2000) 335-344.

DOI: https://doi.org/10.1016/s0008-6223(99)00109-8

[7] L. Q. Zhang, B. Li, H. T. Jiang, Z. H. Wang, C. Y. Ma, Kinetics of SO2 adsorption by powder activated carbon using fluidized bed reactor, J. Chin Coal. Soc. 37 (2012) 1046-1050.

[8] HY. Shao, Study on SO2 and NO removal with activated carbon in circulating fluidized bed, Shan Dong University, Jinan, (2008).

[9] B. Li, J. M. Xue, Y. Y. Xu, H. L. Wang, Equilibrium, kinetics and thermodynamics of SO2 adsorption on activated carbon, J. Chin Coal. Soc. 39 (2014) 2100-2106.
