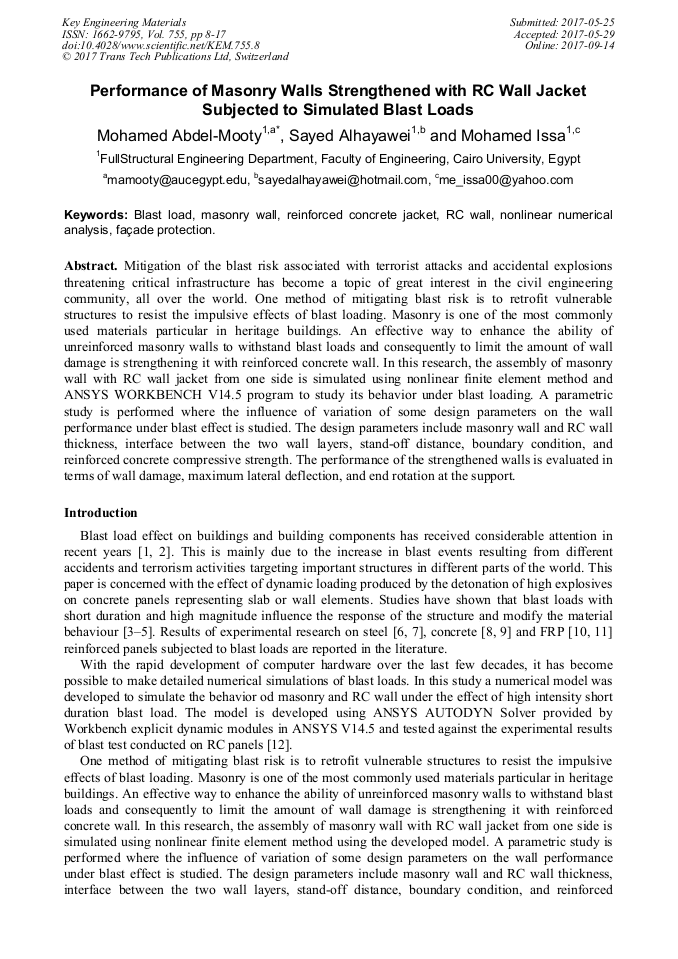

Performance of Masonry Walls Strengthened with RC Wall Jacket Subjected to Simulated Blast Loads

Abstract:

Mitigation of the blast risk associated with terrorist attacks and accidental explosions threatening critical infrastructure has become a topic of great interest in the civil engineering community, all over the world. One method of mitigating blast risk is to retrofit vulnerable structures to resist the impulsive effects of blast loading. Masonry is one of the most commonly used materials particular in heritage buildings. An effective way to enhance the ability of unreinforced masonry walls to withstand blast loads and consequently to limit the amount of wall damage is strengthening it with reinforced concrete wall. In this research, the assembly of masonry wall with RC wall jacket from one side is simulated using nonlinear finite element method and ANSYS WORKBENCH V14.5 program to study its behavior under blast loading. A parametric study is performed where the influence of variation of some design parameters on the wall performance under blast effect is studied. The design parameters include masonry wall and RC wall thickness, interface between the two wall layers, stand-off distance, boundary condition, and reinforced concrete compressive strength. The performance of the strengthened walls is evaluated in terms of wall damage, maximum lateral deflection, and end rotation at the support.

• Periodical: Key Engineering Materials (Volume 755)
• Pages: 8-17
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.755.8
• Online since: September 2017
• Authors: Mohamed Abdel-Mooty*, Sayed Alhayawei, Mohamed Issa
• Keywords: Blast Load, Façade Protection, Masonry Wall, Non-Linear Numerical Analysis, RC Wall, Reinforced Concrete Jacket

References

[1] Elliot, C.L., Mays, G.C., and Smith, P.D. The protection of buildings against terrorism and disorder. Proc Inst Civil Eng: Struct Build; 94: 287–97, (1992).

[2] Committee on Feasibility of Applying Blast-Mitigating Technologies and Design Methodologies from Military Facilities to Civilian Buildings. Protecting buildings from bomb damage. Washington: National Academy Press; (1995).

DOI: 10.17226/5021

[3] Malvar, L.J., Crawford, J.E., Wesevich, J.W., and Simons, D. A plasticity concrete material model for DYNA3D. Int J Impact Eng; (9–10): 847–73, (1997).

DOI: 10.1016/s0734-743x(97)00023-7

[4] Dube, J.F. and Pijudier-Cabot G. Rate-dependent damage model for concrete in dynamics. J Eng Mech ASCE, 122(10): 939–47, (1996).

[5] Sercombe J, Ulm F, and Toutlemonde, J. Viscous hardening plasticity for concrete in high rate dynamics. J Eng Mech ASCE 1998; 124(9): 1050–7.

DOI: 10.1061/(asce)0733-9399(1998)124:9(1050)

[6] Jacinto, A., Ambrosini, R.D., and Danesi, R.F. Experimental and computational analysis of plates under air blast loading. Int J Impact Eng, 25(10): 927–47, (2001).

DOI: 10.1016/s0734-743x(01)00031-8

[7] Jacinto, A., Ambrosini, R.D., and Danesi, R.F. Dynamic response of plates subjected to blast loading. Proc Inst Civil Eng: Struct Build, SB152(3): 269–73, (2002).

DOI: 10.1680/stbu.2002.152.3.269

[8] Yi, P. Explosionseinwirkungen auf Stahlbetonplatten. Zur Erlangung des akademischen Grades eines Doktor-Ingenieurs der Fakultat fur Bauingenieur- und Vermessungswessen der Universitat Fridericiana zu Karlsruhe (TH), (1991).

[9] Mays GC, Hetherington JG, Rose TA. Response to blast loading of concrete wall panels with openings. ASCE J Struct Eng 1999; 125(12): 1448–50.

DOI: 10.1061/(asce)0733-9445(1999)125:12(1448)

[10] Lok TS, Xiao JR. Steel-fibre-reinforced concrete panels exposed to air blast loading. Proc Inst Civil Eng Struct Build 1999; 134: 319–31.

DOI: 10.1680/istbu.1999.31898

[11] Razaqpur AG, Tolba A, Contestabile E. Blast loading response of reinforced concrete panels reinforced with externally bonded GFRP laminates. Elsevier, Composite, Part B38; 535–546, (2007).

DOI: 10.1016/j.compositesb.2006.06.016

[12] M. Abdel-Mooty, S. Alhayawei, and M. Issa, Numerical evaluation of the performance of two-way RC panels under blast loads, SUSI 2014, Structures Under Shock and Impact 3-5 June, 2014, New Forest, UK, pp.13-25.

DOI: 10.2495/susi140021
