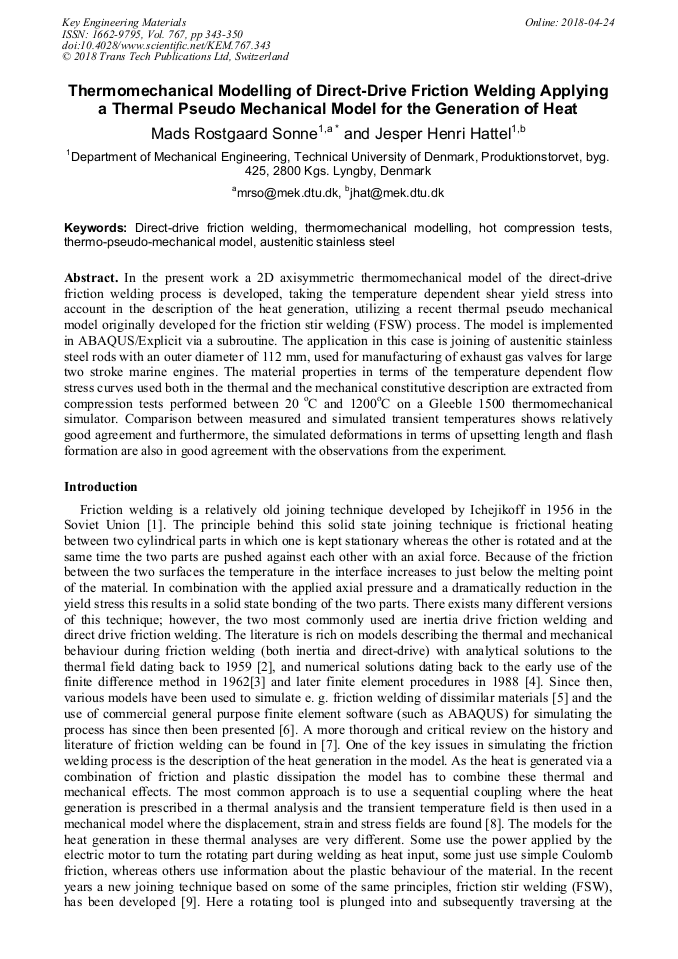

Thermomechanical Modelling of Direct-Drive Friction Welding Applying a Thermal Pseudo Mechanical Model for the Generation of Heat

Abstract:

In the present work a 2D axisymmetric thermomechanical model of the direct-drive friction welding process is developed, taking the temperature dependent shear yield stress into account in the description of the heat generation, utilizing a recent thermal pseudo mechanical model originally developed for the friction stir welding (FSW) process. The model is implemented in ABAQUS/Explicit via a subroutine. The application in this case is joining of austenitic stainless steel rods with an outer diameter of 112 mm, used for manufacturing of exhaust gas valves for large two stroke marine engines. The material properties in terms of the temperature dependent flow stress curves used both in the thermal and the mechanical constitutive description are extracted from compression tests performed between 20 °C and 1200°C on a Gleeble 1500 thermomechanical simulator. Comparison between measured and simulated transient temperatures shows relatively good agreement and furthermore, the simulated deformations in terms of upsetting length and flash formation are also in good agreement with the observations from the experiment.

• Periodical: Key Engineering Materials (Volume 767)
• Pages: 343-350
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.767.343
• Online since: April 2018
• Authors: Mads Rostgaard Sonne*, Jesper Henri Hattel
• Keywords: Austenitic Stainless Steel, Direct-Drive Friction Welding, Hot Compression Tests, Thermomechanical Modelling, Thermo-Pseudo-Mechanical Model

References

[1] N. Yurioka, Progress in Welding and Joining Technology and Its Future Prospect, Nippon Steel Technical Report, No. 65, April (1995).

[2] A.S. Gel'dman and M. P. Sander, Power and heating in the friction welding of thick-walled steel pipes, Weld. Prod. 6, 53-61 (1959).

[3] C.J. Cheng, 1962. Transient temperature distribution during friction welding of two similar materials in tubular form.Weld. J. 41 (12), 542-s–550-s.

[4] A. Sluzalec, Thermal effects in friction welding, Int, J. Mech. Sci. Vol. 32, No. 6, pp.467-478, (1990).

[5] L. D'Alvise, E. Massoni, S.J. Walløe, Finite element modelling of the inertia friction welding process between dissimilar materials Journal of Materials Processing Technology 125–126 (2002) 387–391.

DOI: 10.1016/s0924-0136(02)00349-7

[6] W. Li and F. Wang, Modeling of continuous drive friction welding of mild steel, Materials Science and Engineering A 528 (2011) 5921–5926.

DOI: 10.1016/j.msea.2011.04.001

[7] M. Maalekian, Friction welding – critical assessment of literature, Science and Technology of Welding and Joining — 2007, Volume 12, Issue 8, pp.738-759.

DOI: 10.1179/174329307x249333

[8] A. Francis and R. E. Craine, On a model for frictioning stage in friction welding of thin tubes, Int. J. Heat Mass Transfer. Vol. 28, No. 9, pp.1747-1755, (1985).

DOI: 10.1016/0017-9310(85)90148-6

[9] R. S. Mishra, Z.Y. Ma (2005), Friction stir welding and processing. Mater Sci Eng A 50:1–78.

[10] J. H. Hattel, M. R. Sonne, C. C. Tutum, Modelling residual stresses in friction stir welding of Al alloys—a review of possibilities and future trends, Int J Adv Manuf Technol (2015) 76:1793–1805.

DOI: 10.1007/s00170-014-6394-2

[11] H.B. Schmidt and J.H. Hattel, Thermal modelling of friction stir welding, Scripta Materialia 58 (2008) 332–337.

DOI: 10.1016/j.scriptamat.2007.10.008
