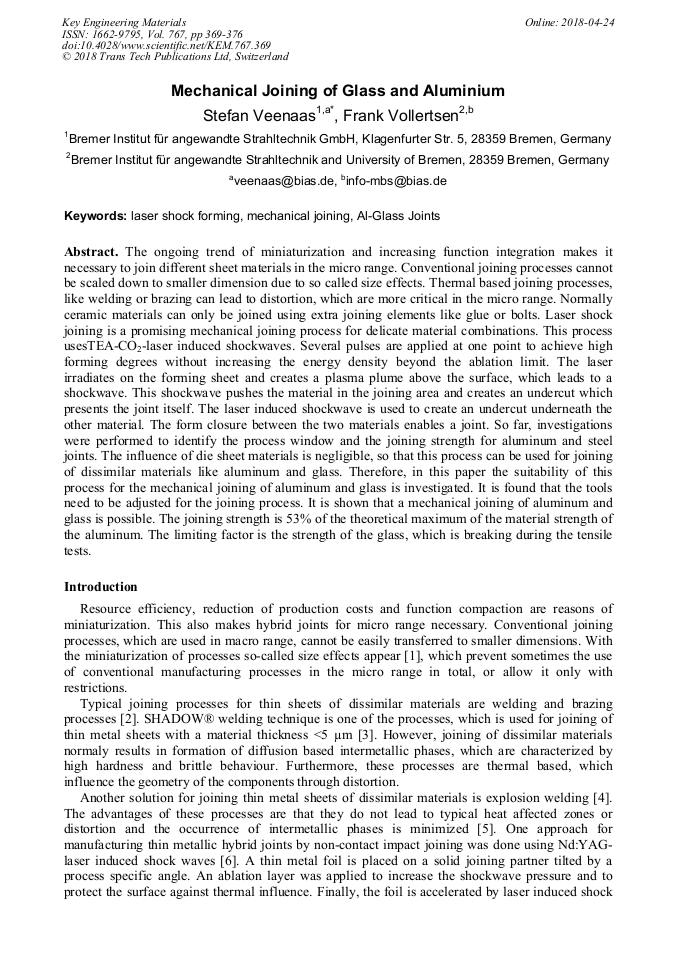

Mechanical Joining of Glass and Aluminium

Abstract:

The ongoing trend of miniaturization and increasing function integration makes it necessary to join different sheet materials in the micro range. Conventional joining processes cannot be scaled down to smaller dimension due to so called size effects. Thermal based joining processes, like welding or brazing can lead to distortion, which are more critical in the micro range. Normally ceramic materials can only be joined using extra joining elements like glue or bolts. Laser shock joining is a promising mechanical joining process for delicate material combinations. This process usesTEA-CO₂-laser induced shockwaves. Several pulses are applied at one point to achieve high forming degrees without increasing the energy density beyond the ablation limit. The laser irradiates on the forming sheet and creates a plasma plume above the surface, which leads to a shockwave. This shockwave pushes the material in the joining area and creates an undercut which presents the joint itself. The laser induced shockwave is used to create an undercut underneath the other material. The form closure between the two materials enables a joint. So far, investigations were performed to identify the process window and the joining strength for aluminum and steel joints. The influence of die sheet materials is negligible, so that this process can be used for joining of dissimilar materials like aluminum and glass. Therefore, in this paper the suitability of this process for the mechanical joining of aluminum and glass is investigated. It is found that the tools need to be adjusted for the joining process. It is shown that a mechanical joining of aluminum and glass is possible. The joining strength is 53% of the theoretical maximum of the material strength of the aluminum. The limiting factor is the strength of the glass, which is breaking during the tensile tests.

• Periodical: Key Engineering Materials (Volume 767)
• Pages: 369-376
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.767.369
• Online since: April 2018
• Authors: Stefan Veenaas, Frank Vollertsen
• Keywords: Al-Glass Joints, Laser Shock Forming, Mechanical Joining

References

[1] Vollertsen, F., 2008. Categories of size effects. In: Production Engineering.-Research and Development, vol. 2, no. 4, p.377–383.

[2] Smolka G, Gillner A, Bosse L, Lützeler R (2004) Micro electron beam welding and laser machining—potentials of beam welding methods in the micro-system technology. Microsyst Technol 10:187–192.

DOI: 10.1007/s00542-003-0347-2

[3] Wilden, J.; Bergmann, J.-P.; Holtz, R.; Richter, K.; Le Guin, A.: Einsatz von gepulsten Nd:YAG-Lasern für das Fügen von Werkstoffen und Werkstoffkombinationen mit anspruchsvollen Eigenschaften, DVS-Berichte Band 244 (Die Verbindungsspezialisten – Große Schweißtechnische Tagung, CD Band) (2007).

[4] Neugebauer R, Bouzakis K-D, Denkena B, Klocke F, Sterzing A, Tekkaya AE, Wertheim R (2011) Velocity effects in metal forming and machining processes. CIRP Ann Manuf Technol 60(2):627–650.

DOI: 10.1016/j.cirp.2011.05.001

[5] Zhang Y, Babu S, Daehn GS (2010) Impact welding in a variety of geometric configurations. In: 4th international conference on high speed forming, p.97–107.

[6] Patent (USA) (2011) Low-Temperature Spot Impact Welding Driven Without Contact, Pub. Nr. US 2011/0000953 A1.

[7] Zhang, Y., Suresh Babub, S., Prothec, C., Blakelyd, M., Kwasegroche, J., LaHae, M., Daehn, G.S. (2011) Application of high velocity impact welding at varied different length scales, Journal of Materials Processing Technology 211, pp.944-952.

DOI: 10.1016/j.jmatprotec.2010.01.001

[8] Veenaas, S., Wielage, H., Vollertsen, F. (2013) Joining by laser shock forming: realization and acting pressures, Production Engineering - Research and Development (WGP), DOI 10.1007/s11740-013-0521-z.

DOI: 10.1007/s11740-013-0521-z

[9] Barchukov, A. I., Bunkin, F. V., Konov, V. I., Lyubin, A. A. (1974) Investigation of low-threshold gas breakdown near solid targets by CO2 laser radiation, Sov. Phys.-JETP, 39-3, pp.469-477.

[10] Demtröder, W. (2010) Atoms, molecules and photons an introduction to atomic-, molecular-, and quantum-physics, Springer; 2nd ed., p.37.

[11] Miziolek, A. W., Palleschi, V., Schechter, I. (2006) Laser Induced Breakdown Spectroscopy, 1st ed., Cambridge University Press, Cambridge.

[12] O'Keefe, J.D., Skeen, C.H., York, C.M. (1973) Laser-induced deformation modes in thin metal targets, J. of App. Phys., 44-10, pp.4622-4626.

DOI: 10.1063/1.1662012

[13] Walter, D., Michalowski, A., Gauch, R., Dausinger, F. (2007).

[14] Radziemski, L.J., Cremers, D., Niemczyk, T.M. (1985), Measurement of the properties of a CO2 laser induced air-plasma by double floating probe and spectroscopic techniques, Spectrochimica Acta Part B Atomic Spectroscopy 40, 517-525.

DOI: 10.1016/0584-8547(85)80089-6

[15] Czotscher, T., Veenaas, S. & Vollertsen, F. (2017) Possibilites to characterise laser induced shock waves, Journal for Technology of Plasticity 42.

[16] Wielage, H., Schulze Niehoff, H., Vollertsen, F. (2008).

[17] Veenaas, S; Vollertsen, F, (2014).

[18] Czotscher, T; Vollertsen, F: Process stability of laser induced plasma for hardness measurements. Lasers in Manufacturing (LIM17) eds.: L. Overmeyer, U. Reisgen, A. Ostendorf, M. Schmidt (2017).

[19] Vollertsen, F. (2013) Micro Metal Forming, Springer, Heidelberg, Germany, p.86.
