Study of the Torsional Behavior of Aluminum Foam-Filled Galvanized Steel Tubes after High Temperature

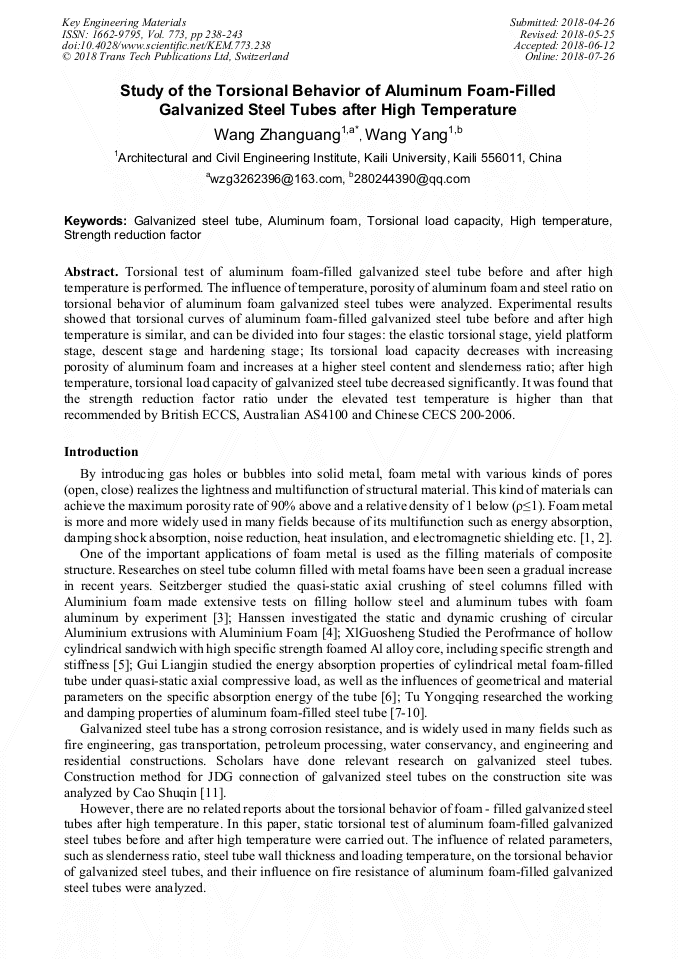

Article Preview

Abstract:

Torsional test of aluminum foam-filled galvanized steel tube before and after high temperature is performed. The influence of temperature, porosity of aluminum foam and steel ratio on torsional behavior of aluminum foam galvanized steel tubes were analyzed. Experimental results showed that torsional curves of aluminum foam-filled galvanized steel tube before and after high temperature is similar, and can be divided into four stages: the elastic torsional stage, yield platform stage, descent stage and hardening stage; Its torsional load capacity decreases with increasing porosity of aluminum foam and increases at a higher steel content and slenderness ratio; after high temperature, torsional load capacity of galvanized steel tube decreased significantly. It was found that the strength reduction factor ratio under the elevated test temperature is higher than that recommended by British ECCS, Australian AS4100 and Chinese CECS 200-2006.

You might also be interested in these eBooks

Applied Engineering, Materials and Mechanics II

Info:

Periodical:

Key Engineering Materials (Volume 773)

Pages:

238-243

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.773.238

Citation:

Cite this paper

Online since:

July 2018

Authors:

Zhan Guang Wang*, Yang Wang

Keywords:

Aluminum Foam, Galvanized Steel Tube, High Temperature, Strength Reduction Factor, Torsional Load Capacity

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2018 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] N. Wicks, J.W. Hutchinson. Optimal truss plates. Int. J. Sol. Struct. 38(30) (2001) 5165-5183.

[2] S. Chiras, D.R. Mumm, A.G. Evans, etc. The structural performance of near-optimized truss core panels. Int. J. Sol. Struct. 39(15) (2002) 4093-4115.

DOI: 10.1016/s0020-7683(02)00241-x

[3] M. Seitzberger, F.G. Rammerstorfer, R. Gradinger, et al. Experimental Studies on the Quasi-Static Axial Crushing of Steel Columns Filled with Aluminium Foam. Int. J. Sol. Struct. 37(30) (2000) 4125-4147.

DOI: 10.1016/s0020-7683(99)00136-5

[4] A.G. Hanssen, M. Langseth, O.S. Hopperstad. Static and Dynamic Crushing of Circular Aluminium Extrusions with Aluminium Foam Filler. Int. J. Imp. Eng. 24(5) (2000) 475-507.

DOI: 10.1016/s0734-743x(99)00170-0

[5] G.S. Xi, D.P. He, K.P. Li. Performance of hollow cylindrical sandwich with high speicific strength foamed A1 alloy core. Chinese J. Mater. Res. 17(2) (2003) 162-168.

[6] L J. Gui, Z.J. Fan, Q.C. Wang. Energy-absorption properties of foam-filled circular tubes subjected to axial 1crushing. J. Tsinghua Univ. (Sci. Tech.) 43(11) (2003) 1526-1529.

[7] C.T. Zhang, Y.Q. Tu. Experimental Study on the Performance of Axially Loaded Long Column of Foam Aluminum Filled Steel Tube. J. Harbin Inst. Tech. 39(2) (2007) 34-37.

[8] Y.Q. Tu, C.T. Zhang. Study on performance of stub column of foam Aluminum filled steel tube. Ind. Constr. 37(1) (2007) 494-496.

[9] G. X. Shao, Y.Q. Tu, H. Shen. Test Study on Damping Properties of Foamed Aluminum Filled Steel Tubes. Coal Mine Mach. 20(2) (2008) 49-52.

[10] G.L. Zhang, Y.P. Tu. Test of Hysteresis Behavior of Foamed Aluminium Filled Steel Brace. Earthq. Resist. Eng. Retrofit. 30(2) (2008) 77-81.

[11] S.Q. Cao. Inquiry on construction methods of galvanized steel pipe JDG connection . Shanxi Archit. 41(33) (2015) 114-115.

[12] Ministry of Housing and Urban-Rural Construction of the People's Republic of China. Technical code for concrete filled steel tubular structures GB50396-2014. China Architecture & Building Press, (2014).

[13] Tongji University, SCS. Technical code for fire safety of steel structure in bulidings CECS 200-2006[S]. China Planning Press, (2006).

[14] J. W. Hu, Response of Seismically Isolated Steel Frame Buildings with Sustainable Lead-Rubber Bearing Isolator Devices Subjected to Near-Fault (NF) Ground Motions. Sustain. 7 (2015) 111-137.

DOI: 10.3390/su7010111

[15] J.W. Seo, Y.C. Kim, J.W. Hu, Pilot Study for Investigating the Cyclic Behavior of Slit Damper Systems with Recentering Shape Memory Alloy (SMA) Bending Bars Used for Seismic Restrainers, Appl. Sci. 5(3) (2015) 187-208.

DOI: 10.3390/app5030187

[16] ECCS. European Recommendations for the Fire Safety of Steel Structures. (1983).

[17] Australian Standard ASAI00. 1998. Steel structures. StratitfieId, Australia.

[18] BS 5950-1:2000, Structural Use of Steel Works in Building. London: British Standard Institute, (2000).
