Investigation of Hot Section (Nozzle Guiding Vane) Distress due to Interaction of Thermal Barrier Coatings with CMAS

Abstract:

An investigation of distress of hot section nozzle guiding vane (NGV) was carried out. Thermal barrier coatings (TBCs) were applied to the components of gas turbine engines to operate at higher temperatures i.e. up to 1200°C. The cause of failure was hot corrosion of TBCs by chemical entities from atmosphere like oxides of Al, Ca, Si and Mg (CMAS). Source of CMAS was dust, which was ingested to airfoil engine components. Different techniques like scanning electron microscope, boroscopy, optical microscopy, X-ray Diffraction and optical emission spectroscopy were utilized to investigate the failure of nozzle guiding vanes.

By email View Pdf

You have full access to the following eBook

Read eBook

You might also be interested in these eBooks

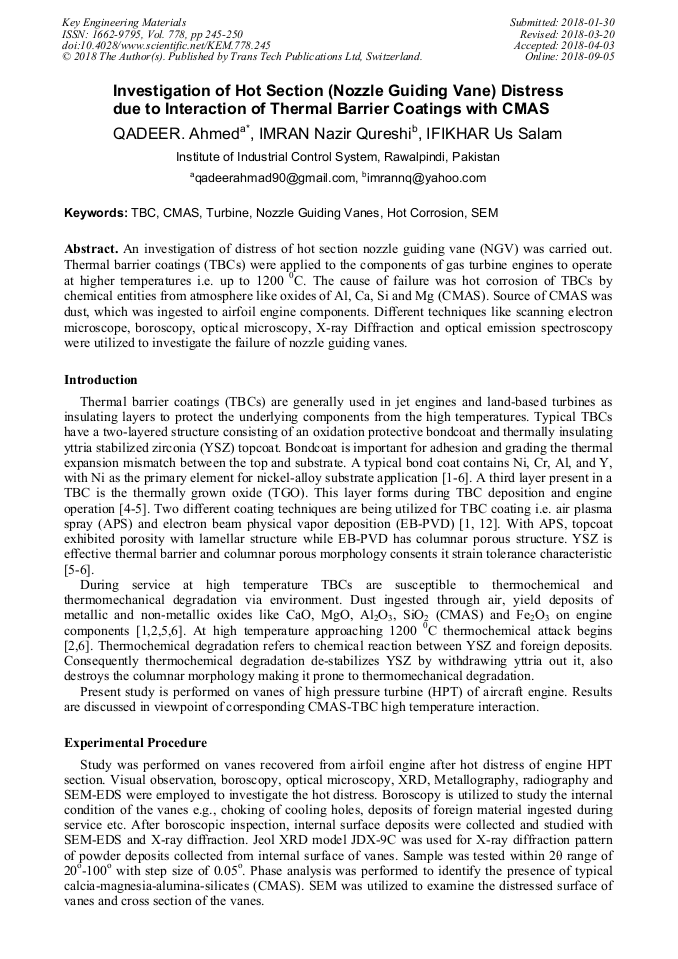

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 778)

Pages:

245-250

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.778.245

Citation:

Cite this paper

Online since:

September 2018

Authors:

Qadeer Ahmed*, Imran Nazir Qureshi, Iftichar Us Salam

Keywords:

CMAS, Hot Corrosion, Nozzle Guide Vanes, Scanning Electron Microscopy (SEM), TBC, Turbine

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Citation:

* - Corresponding Author
