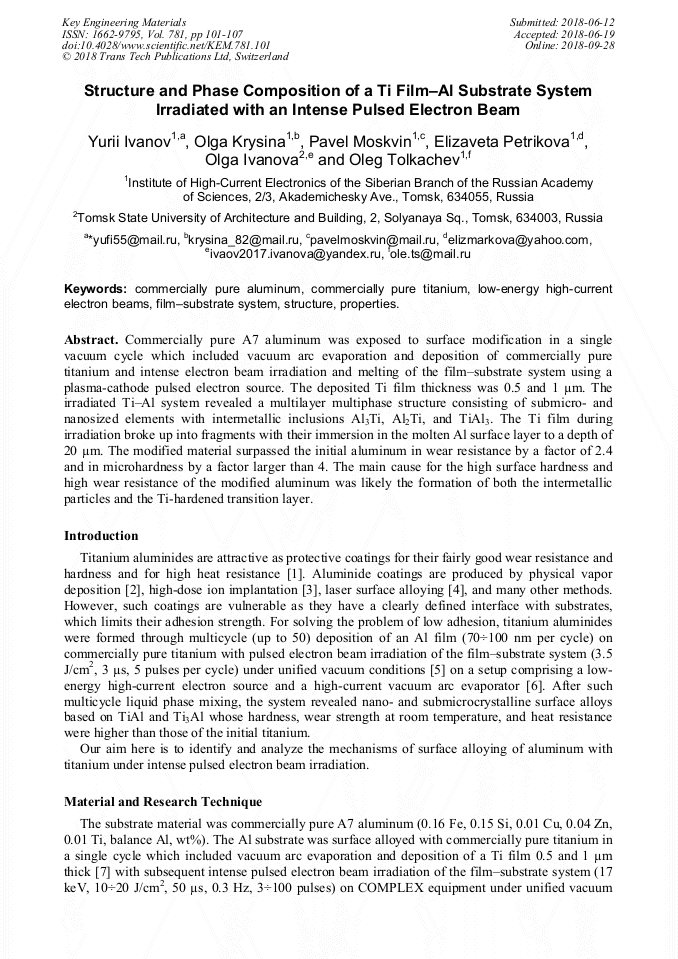

Structure and Phase Composition of a Ti Film–Al Substrate System Irradiated with an Intense Pulsed Electron Beam

Abstract:

Commercially pure A7 aluminum was exposed to surface modification in a single vacuum cycle which included vacuum arc evaporation and deposition of commercially pure titanium and intense electron beam irradiation and melting of the film–substrate system using a plasma-cathode pulsed electron source. The deposited Ti film thickness was 0.5 and 1 μm. The irradiated Ti–Al system revealed a multilayer multiphase structure consisting of submicro-and nanosized elements with intermetallic inclusions Al₃Ti, Al₂Ti, and TiAl₃. The Ti film during irradiation broke up into fragments with their immersion in the molten Al surface layer to a depth of 20 μm. The modified material surpassed the initial aluminum in wear resistance by a factor of 2.4 and in microhardness by a factor larger than 4. The main cause for the high surface hardness and high wear resistance of the modified aluminum was likely the formation of both the intermetallic particles and the Ti-hardened transition layer.

• Periodical: Key Engineering Materials (Volume 781)
• Pages: 101-107
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.781.101
• Online since: September 2018
• Authors: Yurii F. Ivanov*, Olga V. Krysina, Pavel Moskvin, Elizaveta A. Petrikova, Olga V. Ivanova, Oleg S. Tolkachev
• Keywords: Commercially Pure Aluminum, Commercially Pure Titanium, Film-Substrate System, Low-Energy High-Current Electron Beams, Properties, Structure

References

[1] F.H. Froes, C. Suryanarayana, D. Eliezer, Synthesis, properties and applications of titanium aluminides, J. Mater. Sci. 27(19) (1992) 5113-5140.

DOI: 10.1007/bf02403806

[2] J. Hampshire, P.J. Kelly, D.G. Teer, Structure and mechanical properties of co-deposited TiAl thin films, Thin Solid Films 420-421 (2002) 386-391.

DOI: 10.1016/s0040-6090(02)00851-9

[3] I.A. Kurzina, E.V. Kozlov, Yu.P. Sharkeev, A.I. Ryabchikov, I.B. Stepanov, I.A. Bozhko, M.P. Kalashnikov, D.O. Sivin, S.V. Fortuna, Influence of ion implantation on nanoscale intermetallic-phase formation in Ti–Al, Ni–Al and Ni–Ti systems, Surf. Coat. Technol. 201 (2007).

DOI: 10.1016/j.surfcoat.2006.02.062

[4] B. Guo, J. Zhou, S. Zhang, H. Zhou, Y. Pu, J. Chen, Tribological properties of titanium aluminides coatings produced on pure Ti by laser surface alloying, Surf. Coat. Technol. 202(17) (2008) 4121– 4129.

DOI: 10.1016/j.surfcoat.2008.02.026

[5] V.P. Rotshtein, Yu.F. Ivanov, Yu.A. Kolubaeva, X. Mei, A.B. Markov, E.P. Naiden, G.E. Ozur, K.V. Oskomov, S.A. Popov, E.L. Pryadko, A.D. Teresov, V.A. Shulov, Synthesis of Ti3Al and TiAl based surface alloys by pulsed electron-beam melting of Al(film)/Ti(substrate) system, Technical Physics Letters 37(3) (2011).

DOI: 10.1134/s1063785011030126

[6] S.A. Popov, D.I. Proskurovsky, E.L. Pryadko, A.V. Batrakov, A.B. Markov, G.E. Ozur, V.P Rotshtein, High-current pulsed vacuum-arc evaporator for surface-alloying technologies, IEEE Trans. Plasma Sci. 37(8) (2009) 1504-1510.

DOI: 10.1109/tps.2009.2024750

[7] N.N. Koval, Y.F. Ivanov, I.V. Lopatin, Y.H. Akhmadeev, V.V. Shugurov, O.V. Krysina, V.V. Denisov, Generation of low-temperature gas discharge plasma in large vacuum volumes for plasma chemical processes, Russian Journal of General Chemistry 85(5) (2015) 1326-1338.

DOI: 10.1134/s1070363215050485

[8] Yu.F. Ivanov, O.V. Krysina, E.A. Petrikova, A.D. Teresov, V.V. Shugurov, O.S. Tolkachev, Complex Electronion Plasma Treatment of Titanium: Methods, Structure, Properties, High Temperature Material Processes 21(1) (2017) 53–64.

DOI: 10.1615/hightempmatproc.2017021265

[9] V.N. Devyatkov, Yu.F. Ivanov, O.V. Krysina, N.N. Koval, E.A. Petrikova, V.V. Shugurov, Equipment and processes of vacuum electron-ion plasma surface engineering, Vacuum 143 (2017) 464-472.

DOI: 10.1016/j.vacuum.2017.04.016

[10] Yu.F. Ivanov, N.N. Koval, V.I. Vlasov, A.D. Teresov, E.A. Petrikova, V.V. Shugurov, O.V. Ivanova, I.A. Ikonnikova, A.A. Klopotov, The structure of the surface alloy formed as a result of high-speed melting of the film (TiCu)/substrate (Al) system, High Temperature Material Processes 17(4) (2013).

DOI: 10.1615/hightempmatproc.2015014039

[11] Yu.F. Ivanov, O.V. Krysina, M. Rygina, E.A. Petrikova, A.D. Teresov, V.V. Shugurov, O.V. Ivanova, I.A. Ikonnikova, Combined modification of aluminum by electron-ion-plasma methods, High Temperature Material Processes 18(4) (2014) 311-317.

DOI: 10.1615/hightempmatproc.2015015710

[12] N.N. Koval, Yu.F. Ivanov (eds.), Electron-ion-plasma modification of surfaces of non-ferrous metals and alloys Publishing House of Scientific and Technological Literature, Tomsk, (2016).

[13] Yu. Ivanov, O. Krysina, E. Petrikova, O. Ivanova, I.A. Ikonnikova, M. Rygina, Numerical simulation of thermal processes involved in surface alloying of aluminum with titanium by an intense pulsed electron beam, Key Engineering Materials 683 (2016).

DOI: 10.4028/www.scientific.net/kem.683.569
