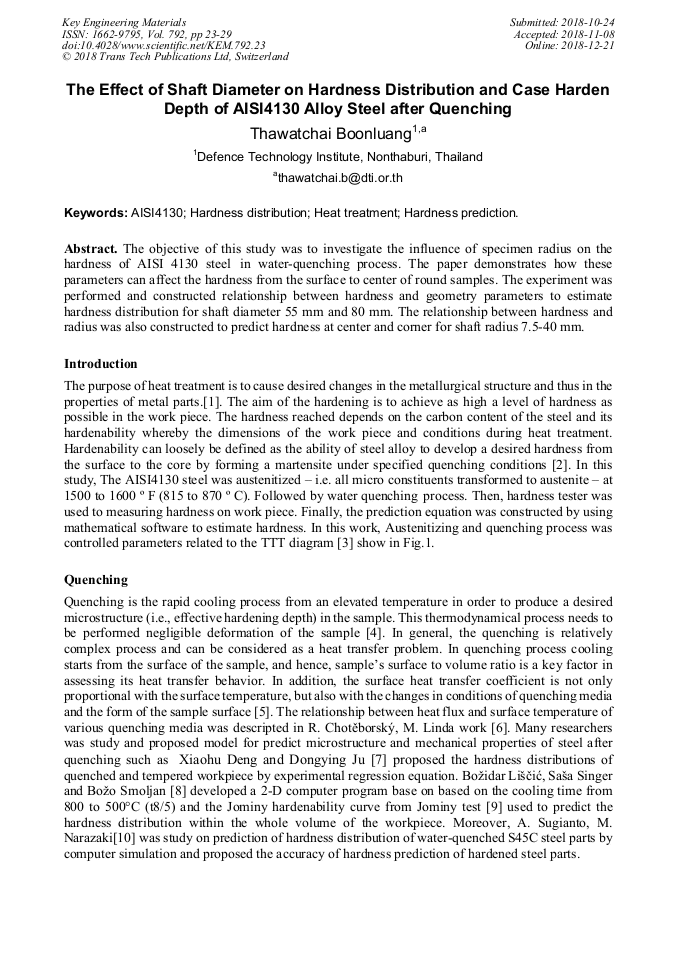

The Effect of Shaft Diameter on Hardness Distribution and Case Harden Depth of AISI4130 Alloy Steel after Quenching

Abstract:

The objective of this study was to investigate the influence of specimen radius on the hardness of AISI 4130 steel in water-quenching process. The paper demonstrates how these parameters can affect the hardness from the surface to center of round samples. The experiment was performed and constructed relationship between hardness and geometry parameters to estimate hardness distribution for shaft diameter 55 mm and 80 mm. The relationship between hardness and radius was also constructed to predict hardness at center and corner for shaft radius 7.5-40 mm.

• Periodical: Key Engineering Materials (Volume 792)
• Pages: 23-29
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.792.23
• Online since: December 2018
• Authors: Thawatchai Boonluang
• Keywords: AISI 4130, Hardness Distribution, Hardness Prediction, Heat Treatment

References

[1] George E. Totten: Ph.D., Fasm. Steel heat treatment hand book: Metallurgy and technologies, Second Edition. Portland state university, USA.(2007).

[2] Ali RafaAltaweel and Majid Tolouei-Rad: Effect of quenching media, specimen size and shape on the hardenability of AISI 4140 steel, Emirates Journal for Engineering Research, 19 (2), 33-39.

[3] Atlas of Time-Temperature Diagrams for Irons and Steels, Third Edition, United States Steel Corporation, Pittsburgh PA, 1963 as published in Atlas of Isothermal Transformation and Cooling Transformation Diagrams, American Society for Metals, Metals Park OH, (1977).

DOI: 10.1201/9781003070405-1

[4] W. D. Callister and D. G. Rethwisch: Materials science and engineering: an introduction, (2007).

[5] M. Çakir and A. Özsoy: Investigation of the correlation between thermal properties and hardenability of Jominy bars quenched with air– water mixture for AISI 1050 steel. Materials & Design, 32(5) (2011), pp.3099-3105.

DOI: 10.1016/j.matdes.2010.12.035

[6] R. Chotěborský, M. Linda: Prediction of Mechanical Properties of Quenching Hardening Steel: Scientia agriculturae bohemica, 46, 2015 (1): 26–32.

DOI: 10.1515/sab-2015-0013

[7] Xiaohu Deng, Dongying Ju: Modeling and Simulation of Quenching and Tempering Process in steels: International Federation for Heat Treatment and Surface Engineering 20th Congress Beijing, China, 23-25 October (2012).

[8] Božidar Liščić, Saša Singer and Božo Smoljan: Prediction of Quench-Hardness within the Whole Volume of Axially-Symmetric Workpieces of any Shape: Journal of Mechanical Engineering 56(2010)2, 104-114.

DOI: 10.1520/stp49166s

[9] James Alison Orivri: Design & Manufacturing Plan of a Jominy Testing Device: Mechanical Engineering & Production technology Riihimäki (2012).

[10] A. Sugianto, M. Narazaki: Prediction of Hardness Distribution of Water-Quenched S45C Steel Parts by Computer Simulation: Proceedings of the 8th Asia-Pacific Conference on Materials Processing June 15-20, 2008, Guilin-Guangzhou, China.
