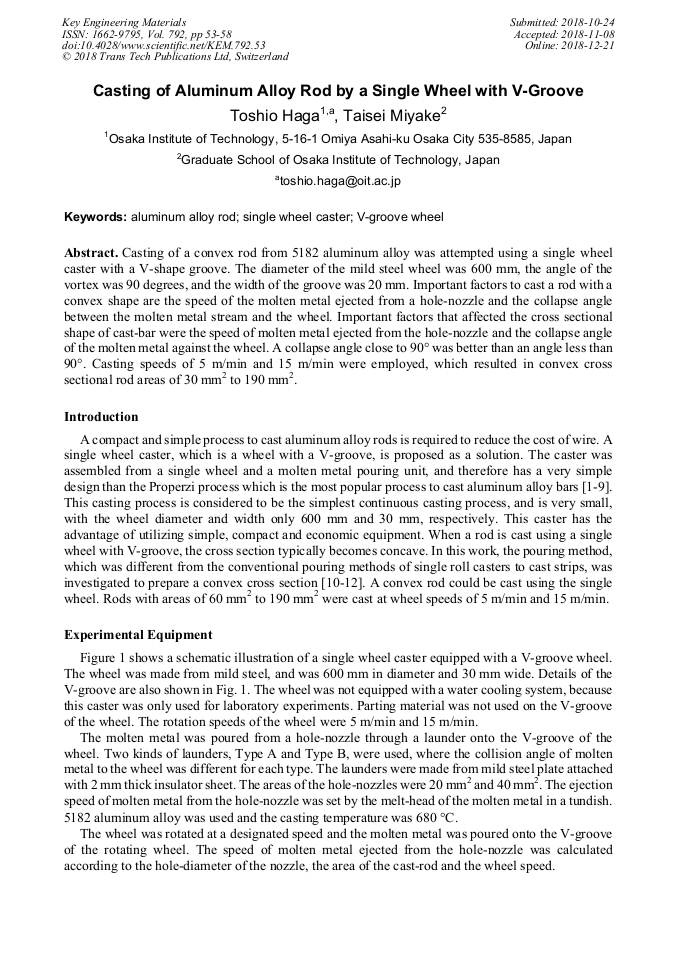

Casting of Aluminum Alloy Rod by a Single Wheel with V-Groove

Abstract:

Casting of a convex rod from 5182 aluminum alloy was attempted using a single wheel caster with a V-shape groove. The diameter of the mild steel wheel was 600 mm, the angle of the vortex was 90 degrees, and the width of the groove was 20 mm. Important factors to cast a rod with a convex shape are the speed of the molten metal ejected from a hole-nozzle and the collapse angle between the molten metal stream and the wheel. Important factors that affected the cross sectional shape of cast-bar were the speed of molten metal ejected from the hole-nozzle and the collapse angle of the molten metal against the wheel. A collapse angle close to 90° was better than an angle less than 90°. Casting speeds of 5 m/min and 15 m/min were employed, which resulted in convex cross sectional rod areas of 30 mm² to 190 mm².

• Periodical: Key Engineering Materials (Volume 792)
• Pages: 53-58
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.792.53
• Online since: December 2018
• Authors: Toshio Haga, Taisei Miyake
• Keywords: Aluminum Alloy Rod, Single Wheel Caster, V-Groove Wheel

References

[1] Giuseppe E. Marcantoni, FROM MOLTEN METAL TO 3.2 mm WIRE FOR MECHANICAL APPLICATIONS, Light Metals 2012 Edited by: Carlos E. Suarez TMS (2012).

DOI: 10.1002/9781118359259.ch44

[2] C. M. Brocato, Properzi updates the CCR (Continuous Casting & Rolling) technology with new rolling stands, Proceedings of the 4th International Melt Qality Workshop, Istanbul Turkey (2008).

[3] Y. Otsuka, T. Nishikawa, Y. Yoshimoto, Y. Akasofu, Development of Aluminum Wire for Low-Voltage Automotive Wiring Harnesses, SAE Int. J. Passeng. Cars - Electron. Electr. Syst. 5(2012), pp.486-491.

DOI: 10.4271/2012-01-0925

[4] M. G. Kim, Continuous Casting and Rolling for Aluminum Alloy Wire and Rod,, Materials Science Forum, 638-642(2010), pp.255-260.

DOI: 10.4028/www.scientific.net/msf.638-642.255

[5] M. Jabłoński, Effect of Iron Addition to Aluminium on the Structure and Properties of Wires Used for Electrical Purposes, Materials Science Forum, 690(2011), pp.459-462.

DOI: 10.4028/www.scientific.net/msf.690.459

[6] K. Buxmann, E. Gold, Solidification Conditions and Microstructure in Continuously Cast Aluminum , JOURNAL OF METALS, April 1982, Volume 34(1982), pp.28-34.

DOI: 10.1007/bf03337996

[7] N. Cheung, N. Santos, J. Quaresma, G. Dulikravich, A. Garcia, Interfacial heat transfer coefficients and solidification of an aluminum alloy in a rotary continuous caster, Int. J. Heat & Mass Transfer,52(2009), pp.451-459.

DOI: 10.1016/j.ijheatmasstransfer.2008.07.003

[8] D. Lewis, THE PRODUCTION OF NON-FERROUS METAL SLAB AND BAR BY CONTINUOUS-CASTING AND ROLLING METHODS, Metallurgical Reviews, 6(1961), pp.143-192.

DOI: 10.1179/mtlr.1961.6.1.143

[9] J. Birat, Continuous casting for tomorrow : Near-Net Shape Casting, Rev. Met. Paris, 86(1989), pp.317-334.

DOI: 10.1051/metal/198986040317

[10] T. Haga, Effect of the contacting condition between molten metal and roll on Al-12%Si alloy strip cast by melt drag method, The Japan Institute of Light Metals, 48(1998), pp.613-617.

DOI: 10.2464/jilm.48.613

[11] R. E. Maringer, Solidification on a substrate, Mater. Sci. & Eng. 98(1988), pp.13-20.

[12] T. A. Gaspar, T. J. Bruce, L. E. Hackman, S. E. Brasmer and J. A. Dantzig, Rapidly solidified titanium alloys by melt overflow,NASA-CR-4253, (1989).
