High Temperature Deformation Behavior and Processing Maps of AZ31 Alloy Deformed in Tension versus Compression

Abstract:

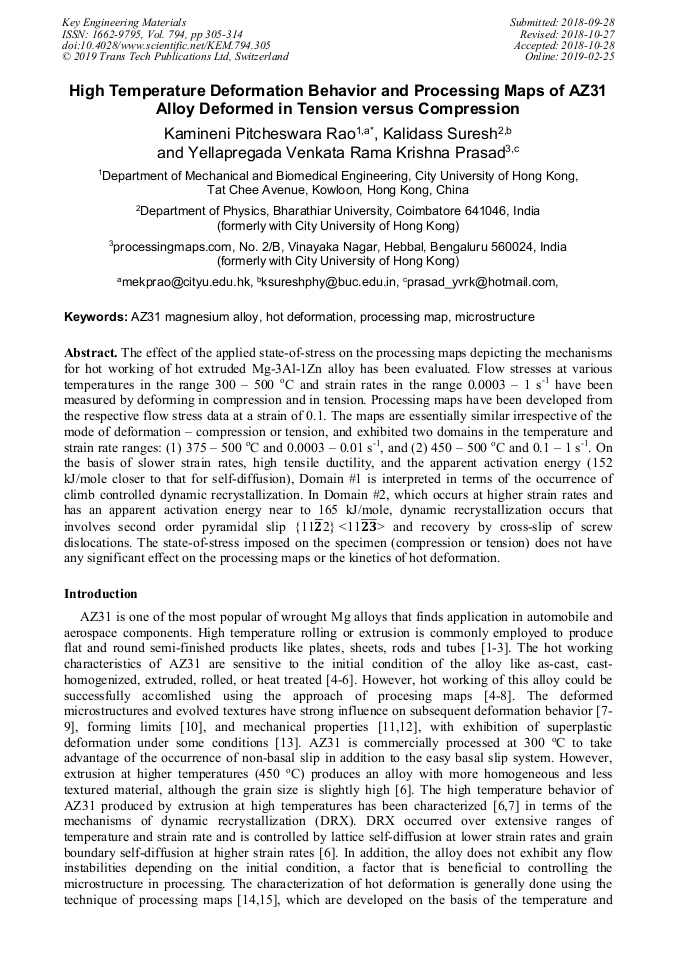

The effect of the applied state-of-stress on the processing maps depicting the mechanisms for hot working of hot extruded Mg-3Al-1Zn alloy has been evaluated. Flow stresses at various temperatures in the range 300 – 500 °C and strain rates in the range 0.0003 – 1 s^-1 have been measured by deforming in compression and in tension. Processing maps have been developed from the respective flow stress data at a strain of 0.1. The maps are essentially similar irrespective of the mode of deformation – compression or tension, and exhibited two domains in the temperature and strain rate ranges: (1) 375 – 500 °C and 0.0003 – 0.01 s^-1, and (2) 450 – 500 °C and 0.1 – 1 s^-1. On the basis of slower strain rates, high tensile ductility, and the apparent activation energy (152 kJ/mole closer to that for self-diffusion), Domain #1 is interpreted in terms of the occurrence of climb controlled dynamic recrystallization. In Domain #2, which occurs at higher strain rates and has an apparent activation energy near to 165 kJ/mole, dynamic recrystallization occurs that involves second order pyramidal slip {11-22} <11-2-3> and recovery by cross-slip of screw dislocations. The state-of-stress imposed on the specimen (compression or tension) does not have any significant effect on the processing maps or the kinetics of hot deformation.

• Periodical: Key Engineering Materials (Volume 794)
• Pages: 305-314
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.794.305
• Online since: February 2019
• Authors: Kamineni Pitcheswara Rao*, Kalidass Suresh, Yellapregada Venkata Rama Krishna Prasad
• Keywords: AZ31 Magnesium Alloy, Hot Deformation, Microstructure, Processing Map

References

[1] L. Jin, J. Dong, R. Wang, L.M. Peng, Effects of hot rolling processing on microstructure and mechanical properties of Mg-3%Al-1%Zn alloy sheet, Mater. Sci. Eng. A 527 (2010) 1970-1974.

DOI: 10.1016/j.msea.2009.11.047

[2] T. Murai, S-I .Matsuoka, S. Miyamoto, Y. Oki, Effect of extrusion conditions on microstructure and mechanical properties of AZ31B magnesium alloy extrusions, J. Mater. Proc. Tech 141 (2003) 207-212.

DOI: 10.1016/s0924-0136(02)01106-8

[3] G. Vespa, L.W.F. Mackenzie, R. Verma, F. Zarandi, E. Esadiqi, S. Yue, The influence of the as-hot rolled microstructure on the elevated temperature mechanical properties of magnesium AZ31 sheet, Mater. Sci. Eng. A 487 (2008) 243-250.

DOI: 10.1016/j.msea.2007.10.064

[4] Y.V.R.K. Prasad, K.P. Rao, Effect of homogenization on the hot deformation behavior of cast AZ31 magnesium alloy, Mater. Des. 30 (2009) 3723-3730.

DOI: 10.1016/j.matdes.2009.02.006

[5] Y.V.R.K. Prasad, K.P. Rao, Processing maps for hot deformation of rolled AZ31 magnesiuim alloy plate: Anisotropy of hot workability, Mater. Sci. Eng. A 487 (2008) 316-327.

DOI: 10.1016/j.msea.2007.10.038

[6] Y.V.R.K. Prasad, K.P. Rao, Hot deformation mechanisms and microstructural control in high temperature extruded AZ31 magnesium alloy, Adv. Eng. Mater. 9 (2007) 558-565.

DOI: 10.1002/adem.200700002

[7] Z-Y. Jin, N-N. Li, K. Yan, J. Wang, J. Bai, H. Dong, Deformation mechanism and hot workability of extruded magnesium alloy AZ31, Acta Metall. Sin-Engl. 31 (2018) 71-81.

DOI: 10.1007/s40195-017-0681-5

[8] X. Shang, J. Zhou, X. Wang, Y. Luo, Optimizing and identifying the process parameters of AZ31 magnesium alloy in hot compression on the base of processing maps, J. Alloys Compd. 629 (2015) 155-161.

DOI: 10.1016/j.jallcom.2014.12.251

[9] A.G. Beer, M.R. Barnett, Influence of initial microstructure on the hot working flow stress of Mg-3Al-1Zn, Mater. Sci. Eng. A 423 (2006) 292-299.

DOI: 10.1016/j.msea.2006.02.041

[10] T. Henseler, M. Ullmann, R. Kawalla, F. Berge, Influence of the sheet manufacturing process on the forming limit behaviour of twin-roll cast, rolled and heat-treated AZ31, Key Eng.Mater. 746 (2017) 154-160.

DOI: 10.4028/www.scientific.net/kem.746.154

[11] M. Eftekhari, A. Fata, G. Faraji, M.M. Mashhadi, Hot tensile deformation behavior of Mg-Zn-Al magnesium alloy tubes processed by severe plastic deformation, J. Alloys Compd. 742 (2018) 442-453.

DOI: 10.1016/j.jallcom.2018.01.246

[12] I. Shimizu, Temperature dependent plastic deformation behavior of AZ31 magnesium alloy in uniaxial and biaxial compressions, Key Eng.Mater. 725 (2017) 421-426.

DOI: 10.4028/www.scientific.net/kem.725.421

[13] X. Wu, Y. Liu, Superplasticity of coarse-grained magnesium alloy, Scripta Mater. 46 (2002) 269-274.

DOI: 10.1016/s1359-6462(01)01234-9

[14] Y.V.R.K. Prasad, K.P. Rao, S. Sasidhara, Hot Working Guide-A Compendium of Processing Maps, Second ed., ASM International, Materials Park, OH, (2015).

[15] Y.V.R.K. Prasad, T. Seshacharyulu, Modeling of hot deformation for microstructural control, Inter. Mater. Rev. 43 (1998) 243-258.

[16] S.Venugopal, S.L. Mannan, Y.V.R.K. Prasad, Influence of strain rate and state-of-stress on the formation of ferrite in stainless steel type AISI 304 during hot working, Mater. Let. 26 (1996) 161-165.

DOI: 10.1016/0167-577x(95)00215-4

[17] H. Ziegler, Some extremum principles in irreversible thermodynamics with applications to continuum mechanics. in: I.N. Sneddon, R. Hill (Eds.), Progress in Solid Mechanics, Vol.4, Wiley, New York, 1965, pp.91-193.

[18] J.J. Jonas, C.M. Sellars, W.J.McG.Tegart, Strength and structure under hot working conditions. Metall. Rev. 14 (1969) 1-24.

DOI: 10.1179/mtlr.1969.14.1.1

[19] H.J. Frost, M.F. Ashby, Deformation-Mechanism Maps. Pergamon Press, Oxford, UK (1982).

[20] J.R. Morris, J. Schraff, K.M. Ho, D.E. Turner, Y.Y.Ye, M.H. Yoo, Prediction of a {1122} hcp stacking fault using a modified generalized stacking-fault calculation. Phil. Mag. A 76 (1997) 1065-1077.

DOI: 10.1080/01418619708200015
