Finite Element Calculation of Anisotropy of Hole Expansion in a Thin Steel Sheet with Six Degrees Polynomial Yield Function

Abstract:

A sixth order yield function was used to analyze the anisotropic plasticity behavior of sheet metal forming. Based on a complete sixth order homogenous polynomial in plane stress, the yield function was implemented as user material subroutines in the FE code ABAQUS Explicit and Standard. The associated flow rule and isotropic hardening were assumed. Material parameter values in the yield function were decided by uniaxial yield stresses and plastic strain ratios along 7 different loading orientations and plane strain yield and equal biaxial stresses and plastic strain ratio. To show the superiority of the sixth order yield function, the hole expansion test by Kuwabara et al.[1] was considered. The results of finite element simulation using the sixth order yield function showed a better agreement with the test results than YLD2000-2D yield function with M=6.

You might also be interested in these eBooks

Advances in Engineering Plasticity and its Application IX

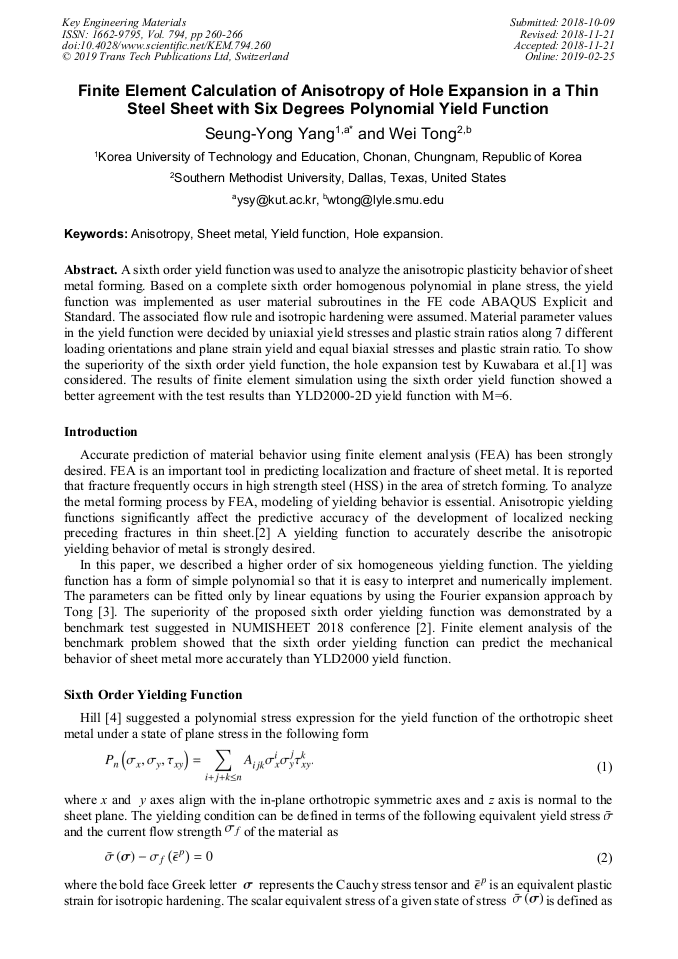

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 794)

Pages:

260-266

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.794.260

Citation:

Cite this paper

Online since:

February 2019

Authors:

Seung Yong Yang, Wei Tong

Keywords:

Anisotropy, Hole Expansion, Sheet Metal, Yield Function

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] T. Kuwabara, K. Hashimoto, E. Iizuka, J.W. Yoon, Effect of anisotropic yield functions on the accuracy of hole expansion simulations, Journal of Materials Processing Technology. 211 (2011) 475-481.

DOI: 10.1016/j.jmatprotec.2010.10.025

Google Scholar

[2] Information on http://numisheet2018.org/Benchmarks/BM1_Instruction_171212.pdf.

Google Scholar

[3] W. Tong, Calibration of a complete homogeneous polynomial yield function of six degrees for modeling orthotropic steel sheets, Acta Mech. 229 (2018) 2495-2519.

DOI: 10.1007/s00707-018-2113-7

Google Scholar

[4] R. Hill, The Mathematical Theory of Plasticity, Oxford University, Oxford, (1998).

Google Scholar

[5] C. R. Calladine, Plasticity for Engineers: Theory and Applications. Woodhead Publishing, Cambridge, (2000).

Google Scholar

[6] F. Barlat, J.W. Yoon, O. Cazacu, On linear transformations of stress tensors for the description of plastic anisotropy, Int. J. Plasticity 23 (2007) 876-896.

DOI: 10.1016/j.ijplas.2006.10.001

Google Scholar
