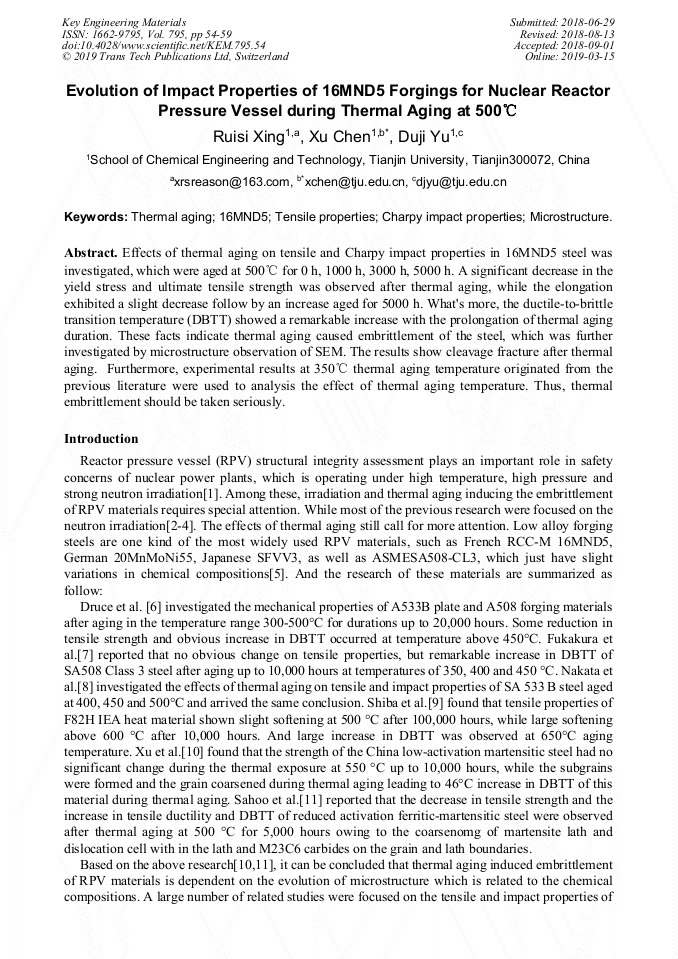

Evolution of Impact Properties of 16MND5 Forgings for Nuclear Reactor Pressure Vessel during Thermal Aging at 500°C

Abstract:

Effects of thermal aging on tensile and Charpy impact properties in 16MND5 steel was investigated, which were aged at 500°C for 0 h, 1000 h, 3000 h, 5000 h. A significant decrease in the yield stress and ultimate tensile strength was observed after thermal aging, while the elongation exhibited a slight decrease follow by an increase aged for 5000 h. What's more, the ductile-to-brittle transition temperature (DBTT) showed a remarkable increase with the prolongation of thermal aging duration. These facts indicate thermal aging caused embrittlement of the steel, which was further investigated by microstructure observation of SEM. The results show cleavage fracture after thermal aging. Furthermore, experimental results at 350°C thermal aging temperature originated from the previous literature were used to analysis the effect of thermal aging temperature. Thus, thermal embrittlement should be taken seriously.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 795)

Pages:

54-59

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.795.54

Citation:

Cite this paper

Online since:

March 2019

Authors:

Rui Si Xing, Xu Chen*, Dun Ji Yu

Keywords:

16MND5, Charpy Impact Properties, Microstructure, Tensile Properties, Thermal Aging

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Bement, A.L. FUNDAMENTAL MATERIALS PROBLEMS IN NUCLEAR REACTORS, Journal of the American Society for Naval Engineers. 69 (1970) 37–44.

Google Scholar

[2] Fujii K, Fukuya K. Characterization of defect clusters in ion-irradiated A533B steel, Journal of Nuclear Materials. 336 (2005) 323-30.

DOI: 10.1016/j.jnucmat.2004.10.090

Google Scholar

[3] Lambrecht M, Almazouzi A. Positron annihilation study of neutron irradiated model alloys and of a reactor pressure vessel steel, Journal of Nuclear Materials. 385 (2009) 334-8.

DOI: 10.1016/j.jnucmat.2008.12.020

Google Scholar

[4] Li XH, Lei J, Shu GG, Wan QM. A study on the microstructure and mechanical property of proton irradiated A508-3 steel, Nuclear Instruments & Methods in Physics Research. 350 (2015) 14-9.

DOI: 10.1016/j.nimb.2015.03.037

Google Scholar

[5] Yu M, Luo Z, Chao YJ. Correlations Between Charpy V-Notch Impact Energy and Fracture Toughness of Nuclear Reactor Pressure Vessel (RPV) Steels. In: ASME 2015 Pressure Vessels and Piping Conference. (2015).

DOI: 10.1115/pvp2015-45747

Google Scholar

[6] Wright S. The Interpretation of Population Structure by F-Statistics with Special Regard to Systems of Mating, Evolution. 19 (1965) 395-420.

DOI: 10.1111/j.1558-5646.1965.tb01731.x

Google Scholar

[7] Fukakura J, Asano M, Kikuchi M, Ishikawa M. Effect of thermal aging on fracture toughness of RPV steel ☆, Nuclear Engineering & Design. 144 (1993) 423-9.

DOI: 10.1016/0029-5493(93)90037-a

Google Scholar

[8] HayatoNAKATA, KatsuhikoFUJII, KojiFUKUYA, RyutaKASADA, AkihikoKIMURA. Grain Boundary Phosphorus Segregation in Thermally Aged Low Alloy Steels, Journal of Nuclear Science & Technology. 43 (2006) 785-93.

DOI: 10.1080/18811248.2006.9711160

Google Scholar

[9] Shiba K, Tanigawa H, Hirose T, Sakasegawa H, Jitsukawa S. Long-term properties of reduced activation ferritic/martensitic steels for fusion reactor blanket system, Fusion Engineering & Design. 86 (2011) 2895-9.

DOI: 10.1016/j.fusengdes.2011.06.005

Google Scholar

[10] Wang W, Liu S, Xu G, Zhang B, Huang Q. Effect of Thermal Aging on Microstructure and Mechanical Properties of China Low-Activation Martensitic Steel at 550 °C, Nuclear Engineering & Technology. 48 (2016) 518-24.

DOI: 10.1016/j.net.2015.11.004

Google Scholar

[11] Sahoo KC, Vanaja J, Parameswaran P, Vijayanand VD, Laha K. Effect of thermal ageing on microstructure, tensile and impact properties of reduced activated ferritic-martensitic steel, Materials Science & Engineering A. 686 (2017) 54-64.

DOI: 10.1016/j.msea.2017.01.030

Google Scholar

[12] Barsom JM, Rolfe ST. Fracture and fatigue control in structures : applications of fracture mechanics, (1999).

DOI: 10.1520/mnl41-3rd-eb

Google Scholar

[13] Eichler B, Feldmann M, Kühn B, Stranghöner N, Sedlacek G, Kouhi J, et al. Choice of Steel Material to avoid Brittle Fracture for Hollow Section Structures - JRC Scientific and Policy Reports, (2012).

DOI: 10.1201/b13139-107

Google Scholar

[14] Xing R, Yu D, Xie G, Yang Z, Wang X, Chen X. Effect of thermal aging on mechanical properties of a bainitic forging steel for reactor pressure vessel, Materials Science & Engineering A. 720 (2018).

DOI: 10.1016/j.msea.2018.02.036

Google Scholar
