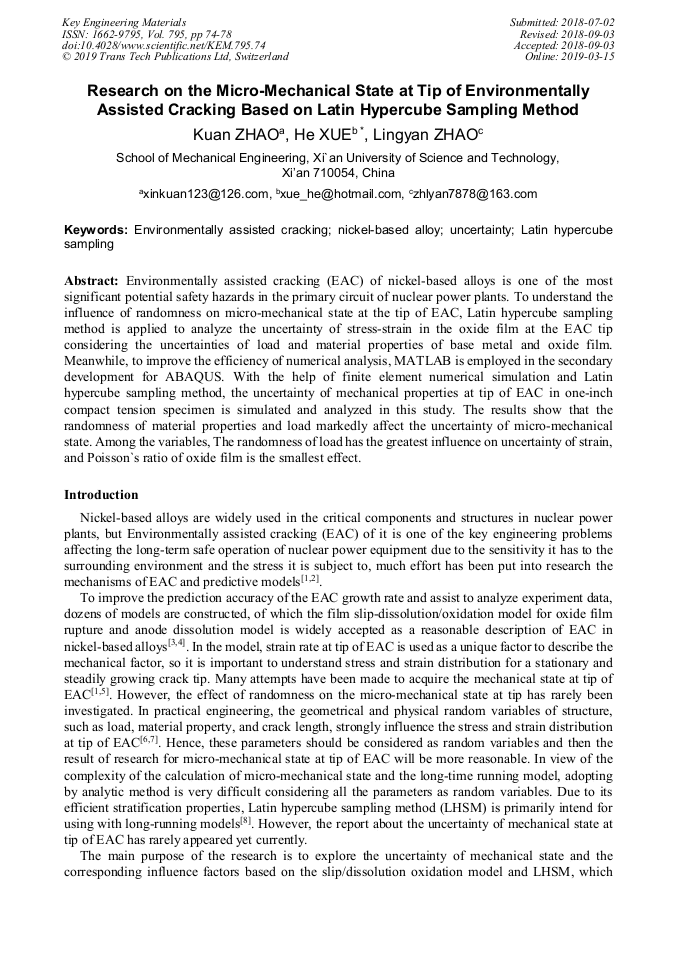

Research on the Micro-Mechanical State at Tip of Environmentally Assisted Cracking Based on Latin Hypercube Sampling Method

Abstract:

Environmentally assisted cracking (EAC) of nickel-based alloys is one of the most significant potential safety hazards in the primary circuit of nuclear power plants. To understand the influence of randomness on micro-mechanical state at tip of EAC, Latin hypercube sampling method is applied to analyze the uncertainty of stress-strain in the oxide film at the EAC tip considering the uncertainties of load and material properties of base metal and oxide film. Meanwhile, to improve the efficiency of numerical analysis, MATLAB is employed in the secondary development for ABAQUS. With the help of finite element numerical simulation and Latin hypercube sampling method, the uncertainty of mechanical properties at tip of EAC in one-inch compact tension specimen is simulated and analyzed in this study. The results show that the randomness of material properties and load markedly affect the uncertainty of micro-mechanical state. Among the variables, The randomness of load has the greatest influence on uncertainty of strain, and Poisson`s ratio of oxide film is the smallest effect.

• Periodical: Key Engineering Materials (Volume 795)
• Pages: 74-78
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.795.74
• Online since: March 2019
• Authors: Kuan Zhao, He Xue*, Ling Yan Zhao
• Keywords: Environmentally Assisted Cracking, Latin Hypercube Sampling, Nickel-Based Alloy, Uncertainty

References

[1] Yang F, Xue H, Zhao L, et al. Effects of stress intensity factor on electrochemical corrosion potential at crack tip of nickel-based alloys in high-temperature water environments. Rare Metal Materials and Engineering, 2014, 43(3): 513-518.

DOI: 10.1016/s1875-5372(14)60067-9

[2] Shoji T, Lu Z, Murakami H. Formulating stress corrosion cracking growth rates by combination of crack tip mechanics and crack tip oxidation kinetics. Corrosion Science, 2010, 52(3): 769-779.

DOI: 10.1016/j.corsci.2009.10.041

[3] Ford F P. 3 Mechanisms of environmentally-assisted cracking. International journal of pressure vessels and piping, 1989, 40(5): 343-362.

DOI: 10.1016/0308-0161(89)90097-5

[4] Dong L, Peng Q, Xue H, et al. Correlation of microstructure and stress corrosion cracking initiation behavior of the fusion boundary region in a SA508 Cl. 3-Alloy 52M dissimilar weld joint in primary pressurized water reactor environment. Corrosion Science, 2018, 132: 9-20.

DOI: 10.1016/j.corsci.2017.12.011

[5] Yang F, Xue H, Zhao L, et al. Effects of Grain Orientation on Stress State near Grain Boundary of Austenitic Stainless Steel Bicrystals. Advances in Materials Science and Engineering, 2018, (2018).

DOI: 10.1155/2018/9409868

[6] Xiaofeng X, Yunwen F, Zhongwei Y, et al. Research on the plane multiple cracks stress intensity factors based on stochastic finite element method. Chinese Journal of Aeronautics, 2009, 22(3): 257-261.

DOI: 10.1016/s1000-9361(08)60096-5

[7] He B L, Huo L X, Zhang Y F. Reliability analysis of welded structure with cracks based on three dimensional stochastic FEM. Journal of Mechanical Strength, 2000, 22(4): 291-293.

[8] Helton J C, Davis F J. Latin hypercube sampling and the propagation of uncertainty in analyses of complex systems. Reliability Engineering & System Safety, 2003, 81(1): 23-69.

DOI: 10.1016/s0951-8320(03)00058-9

[9] Astm E. 399-90:" Standard test method for plane-strain fracture toughness of metallic materials. Annual book of ASTM standards, 1997, 3(01): 506-536.

DOI: 10.1520/stp33670s

[10] Pebesma E J, Heuvelink G B M. Latin hypercube sampling of Gaussian random fields. Technometrics, 1999, 41(4): 303-312.

DOI: 10.1080/00401706.1999.10485930
