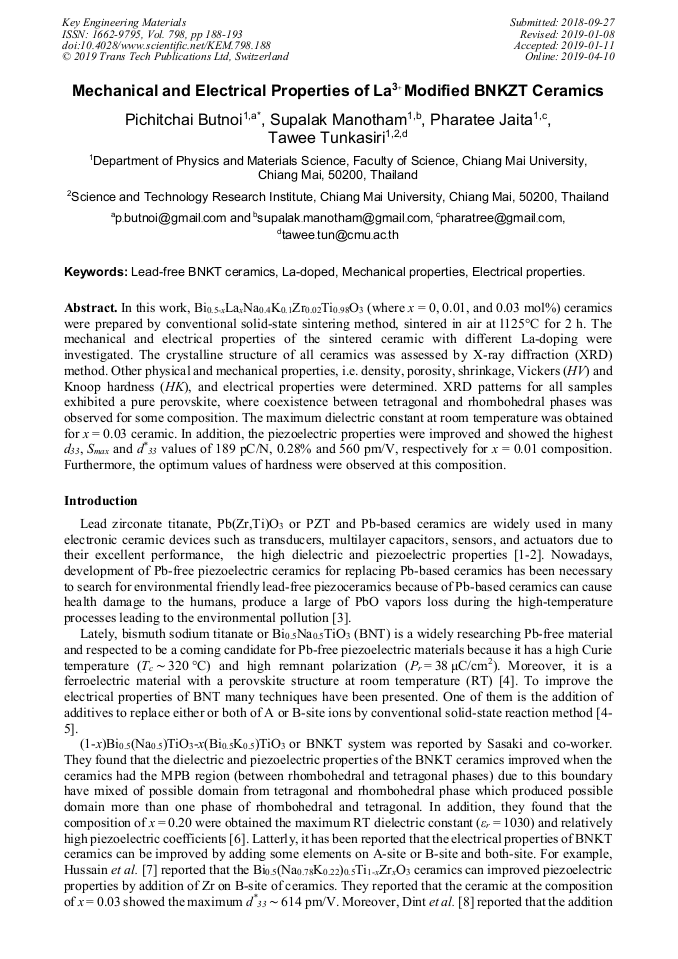

Mechanical and Electrical Properties of La³⁺ Modified BNKZT Ceramics

Abstract:

In this work, Bi_0.5-xLa_xNa_0.4K_0.1Zr_0.02Ti_0.98O₃ (where x = 0, 0.01, and 0.03 mol%) ceramics were prepared by conventional solid-state sintering method, sintered in air at l125°C for 2 h. The mechanical and electrical properties of the sintered ceramic with different La-doping were investigated. The crystalline structure of all ceramics was assessed by X-ray diffraction (XRD) method. Other physical and mechanical properties, i.e. density, porosity, shrinkage, Vickers (HV) and Knoop hardness (HK), and electrical properties were determined. XRD patterns for all samples exhibited a pure perovskite, where coexistence between tetragonal and rhombohedral phases was observed for some composition. The maximum dielectric constant at room temperature was obtained for x = 0.03 ceramic. In addition, the piezoelectric properties were improved and showed the highest d₃₃, S_max and d^*₃₃ values of 189 pC/N, 0.28% and 560 pm/V, respectively for x = 0.01 composition. Furthermore, the optimum values of hardness were observed at this composition.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 798)

Pages:

188-193

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.798.188

Citation:

Cite this paper

Online since:

April 2019

Authors:

Pichitchai Butnoi*, Supalak Manotham, Pharatree Jaita, Tawee Tunkasiri

Keywords:

Electrical Properties, La-Doped, Lead-Free BNKT Ceramics, Mechanical Properties

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] S. Manotham, P. Butnoi, P. Jaita, N. Kumar, K. Chokethawai, G. Rujijanagul, David P. Cann, Large electric field-induced strain and large improvement in energy density of bismuth sodium potassium titanate-based piezoelectric ceramics, J. Alloys Compd. 739 (2018) 457-467.

DOI: 10.1016/j.jallcom.2017.12.175

Google Scholar

[2] B. Jaffe, W.R. Cook, H. Jaffe, Piezoelectric ceramics, Academic Press, London and New York, (1971).

Google Scholar

[3] J. Yoo, J. Hong, H. Lee, Y. Jeong, B. Lee, H. Song, J. Kwon, Piezoelectric and dielectric properties of La2O3 added Bi(Na,K)TiO3-SrTiO3 ceramics for pressure sensor application, Sens. Actuator. A. 126 (2006) 41–47.

DOI: 10.1016/j.sna.2005.09.005

Google Scholar

[4] P. Butnoi, S. Manotham, P. Jaita, C. Randorn, G. Rujijanagul, High thermal stability of energy storage density and large strain improvement of lead-free Bi0.5(Na0.40K0.10)TiO3 piezoelectric ceramics doped with La and Zr, J. Eur. Ceram. Soc. 38 (2018) 3822–3832.

DOI: 10.1016/j.jeurceramsoc.2018.04.024

Google Scholar

[5] R. Zuo, H. Wang, B. Ma, L. Li, Effects of Nb5+ doping on sintering and electrical properties of lead-free (Bi0.5Na0.5)TiO3 ceramics, J. Mater. Sci. Mater. Electron. 20 (2009) 1140–1143.

DOI: 10.1007/s10854-008-9840-9

Google Scholar

[6] A. Sasaki, T. Chiba, Y. Mamiya, E. Otsuki, Dielectric and piezoelectric properties of (Bi0.5Na0.5)TiO3-(Bi0.5K0.5)TiO3 systems, Jpn. J. Appl. Phys. 38 (1999) 5564–5567.

Google Scholar

[7] A. Hussain, C.W. Ahn, J.S. Lee, A. Ullah, I.W. Kim, Large electric-field-induced strain in Zr-modified lead-free Bi0.5(Na0.78K0.22)0.5TiO3 piezoelectric ceramics, Sens. Actuator. A. 158 (2010) 84–89.

DOI: 10.1016/j.sna.2009.12.027

Google Scholar

[8] T. H. Dinh, H.Y. Lee, C.H Yoon, R.A. Malik, Y.M Kong, J.S. Lee, Effect of lanthanum doping on the structural, ferroelectric, and strain properties of Bi1/2(Na0.82K0.18)1/2TiO3 lead-free ceramics, J. Kor. Phys. Soc, 62, (2013) 1004-1008.

DOI: 10.3938/jkps.62.1004

Google Scholar

[9] D. B. Marshall, T. Noma, and A. G. Evans, A simple method for determining elastic modulus to hardness ratios using knoop indentation measurements, J.Am.Ceram.Soc. 65, (1982) C175–176.

DOI: 10.1111/j.1151-2916.1982.tb10357.x

Google Scholar

[10] G. R. Antis, P. Chantikul, B. R. Lawn, and D. B. Marshall, A critical evaluation of indentation techniques for measuring fracture toughness: I, direct crack measurement, J. Am. Ceram. Soc. 64, (1981) 533–538.

DOI: 10.1111/j.1151-2916.1981.tb10320.x

Google Scholar

[11] P. Jaita, S. Manotham, P. Butnoi, R. Sanjoom, P. Arkornsakul, D. R. Sweatman, C. Kruea-In, T. Tunkasiri, The mechanical and electrical properties of modified-BNKT lead-free ceramics, Integrated Ferroelectrics, 187 (2018) 147-155.

DOI: 10.1080/10584587.2018.1444888

Google Scholar

[12] A. Kumar, S. K. Mishra, Dielectric, piezoelectric, and ferroelectric properties of lanthanum modified PZTFN ceramics, Int. J. Miner. Metall. Mater. 21 (2014) 1-8.

DOI: 10.1007/s12613-014-1003-9

Google Scholar
