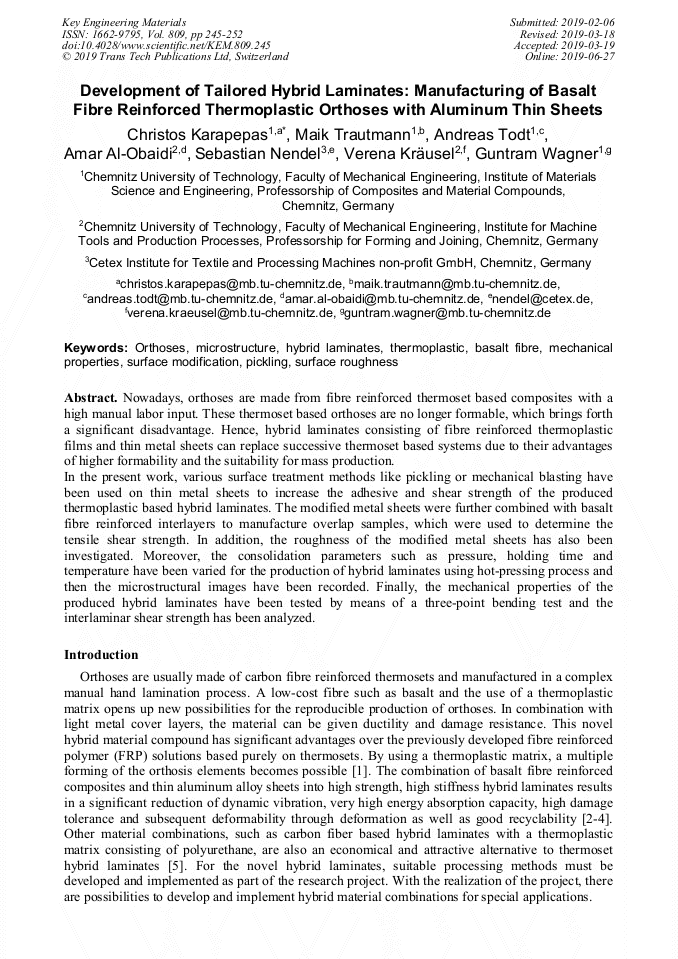

Development of Tailored Hybrid Laminates: Manufacturing of Basalt Fibre Reinforced Thermoplastic Orthoses with Aluminum Thin Sheets

Abstract:

Nowadays, orthoses are made from fibre reinforced thermoset based composites with a high manual labor input. These thermoset based orthoses are no longer formable, which brings forth a significant disadvantage. Hence, hybrid laminates consisting of fibre reinforced thermoplastic films and thin metal sheets can replace successive thermoset based systems due to their advantages of higher formability and the suitability for mass production. In the present work, various surface treatment methods like pickling or mechanical blasting have been used on thin metal sheets to increase the adhesive and shear strength of the produced thermoplastic based hybrid laminates. The modified metal sheets were further combined with basalt fibre reinforced interlayers to manufacture overlap samples, which were used to determine the tensile shear strength. In addition, the roughness of the modified metal sheets has also been investigated. Moreover, the consolidation parameters such as pressure, holding time and temperature have been varied for the production of hybrid laminates using hot-pressing process and then the microstructural images have been recorded. Finally, the mechanical properties of the produced hybrid laminates have been tested by means of a three-point bending test and the interlaminar shear strength has been analyzed.

• Periodical: Key Engineering Materials (Volume 809)
• Pages: 245-252
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.809.245
• Online since: June 2019
• Authors: Christos Karapepas*, Maik Trautmann, Andreas Todt, Amar Al-Obaidi, Sebastian Nendel, Verena Kräusel, Guntram Wagner
• Keywords: Basalt Fibre, Hybrid Laminates, Mechanical Properties, Microstructure, Orthoses, Pickling, Surface Modification, Surface Roughness, Thermoplastic

References

[1] D. Nestler, Beitrag zum Thema: Verbundwerkstoffe - Werkstoffverbunde - Status quo und Forschungsansätze. Habilitation, TU Chemnitz, (2013).

[2] S.M.R. Khalili, V. Daghigh, R. Eslami Farsani, Mechanical behavior of basalt fiber-reinforced and basalt fiber metal laminate composites under tensile and bending loads, Journal of Reinforced Plastics and Composites 30 (8) (2011) 647-659.

DOI: 10.1177/0731684411398535

[3] L. Ferrante, F. Sarasini, J. Tirillò, et al., Low velocity impact response of basalt-aluminium fibre metal laminates, Materials & Design 98 (2016) 98-107.

DOI: 10.1016/j.matdes.2016.03.002

[4] V. Daghigh, S.M.R. Khalili, R. Eslami Farsani, Creep behavior of basalt fiber-metal laminate composites, Composites Part B Engineering 91 (2016) 275-282.

DOI: 10.1016/j.compositesb.2016.01.017

[5] C. Zopp, D. Nestler, J. Tröltzsch, et al., CATPUAL – An Innovative and High-Performance Hybride Laminate with Carbon Fibre-Reinforced Thermoplastic Polyurethane, Key Engineering Materials 742 (2017) 294-301. https://doi.org/10.4028/www.scientific.net/KEM.742.294.

DOI: 10.4028/www.scientific.net/kem.742.294

[6] D. Nestler, M. Trautmann, S. Nendel, et al., Innovative hybrid laminates of aluminium alloy foils and fibre-reinforced thermoplastic layers, Materials Science and Engineering Technology 47 (11) (2016) 1121-1131.

DOI: 10.1002/mawe.201600636

[7] D. Nestler, M. Trautmann, C. Zopp, et al., Continuous film stacking and thermoforming process for hybrid CFRP/aluminium laminates, procedia CIRP 66 (2017) 107-112. https://doi.org/10.1016/j.procir.2017.03.221.

DOI: 10.1016/j.procir.2017.03.221

[8] K.L. Mittal and A. Pizzi, Adhesion Promotion Techniques: Technological Applications, Ney York M. Dekker (1999) 416. ISBN: 0824702395.
