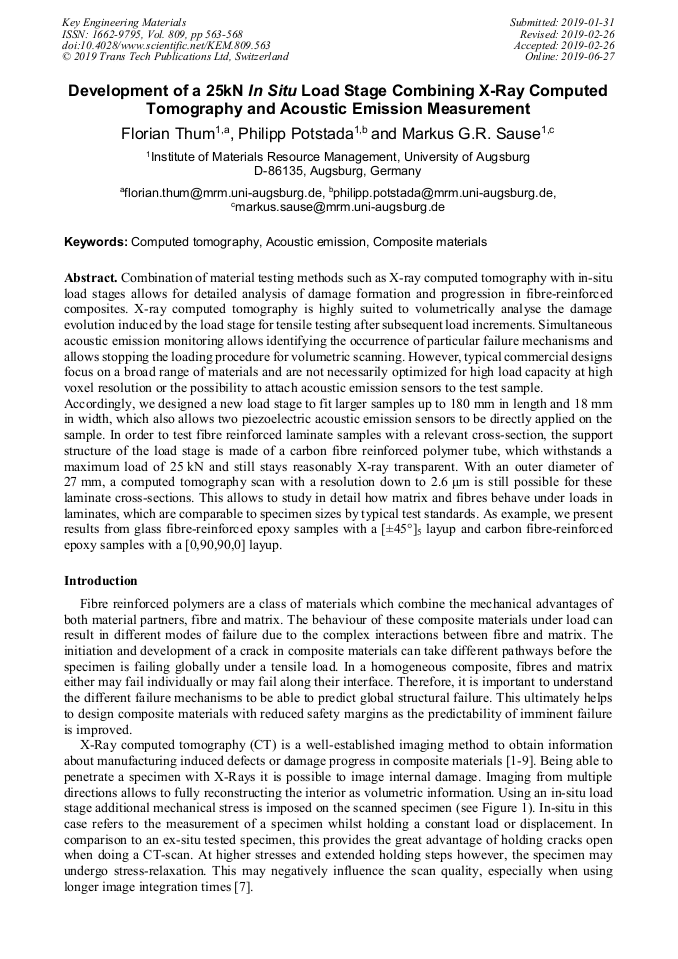

Development of a 25kN In Situ Load Stage Combining X-Ray Computed Tomography and Acoustic Emission Measurement

Abstract:

Combination of material testing methods such as X-ray computed tomography with in-situ load stages allows for detailed analysis of damage formation and progression in fibre-reinforced composites. X-ray computed tomography is highly suited to volumetrically analyse the damage evolution induced by the load stage for tensile testing after subsequent load increments. Simultaneous acoustic emission monitoring allows identifying the occurrence of particular failure mechanisms and allows stopping the loading procedure for volumetric scanning. However, typical commercial designs focus on a broad range of materials and are not necessarily optimized for high load capacity at high voxel resolution or the possibility to attach acoustic emission sensors to the test sample. Accordingly, we designed a new load stage to fit larger samples up to 180 mm in length and 18 mm in width, which also allows two piezoelectric acoustic emission sensors to be directly applied on the sample. In order to test fibre reinforced laminate samples with a relevant cross-section, the support structure of the load stage is made of a carbon fibre reinforced polymer tube, which withstands a maximum load of 25 kN and still stays reasonably X-ray transparent. With an outer diameter of 27 mm, a computed tomography scan with a resolution down to 2.6 μm is still possible for these laminate cross-sections. This allows to study in detail how matrix and fibres behave under loads in laminates, which are comparable to specimen sizes by typical test standards. As example, we present results from glass fibre-reinforced epoxy samples with a [±45°]₅ layup and carbon fibre-reinforced epoxy samples with a [0,90,90,0] layup.

• Periodical: Key Engineering Materials (Volume 809)
• Pages: 563-568
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.809.563
• Online since: June 2019
• Authors: Florian Thum*, Philipp Potstada, Markus G.R. Sause
• Keywords: Acoustic Emission, Composite Materials, Computed Tomography

References

[1] Ivanov, D.S., Baudry, F., Van Den Broucke, B., Lomov, S. V., Xie, H., Verpoest, I.: Failure analysis of triaxial braided composite. Compos. Sci. Technol. 69, (2009), 1372–1380.

DOI: 10.1016/j.compscitech.2008.09.013

[2] Scott, A.E., Sinclair, I., Spearing, S.M., Mavrogordato, M., Bunsell, A.R., Thionnet, A.: Comparison of the accumulation of fibre breaks occurring in a unidirectional carbon / epoxy composite identified in a multi-scale micro-mechanical model with that of experimental observations using high resolution computed tomography. Matériaux 2010, (2010), 9 p.

DOI: 10.1016/j.compositesa.2012.03.011

[3] Scott, A.E., Sinclair, I., Spearing, S.M., Thionnet, A., Bunsell, A.R.: Damage accumulation in a carbon/epoxy composite: Comparison between a multiscale model and computed tomography experimental results. Compos. Part A Appl. Sci. Manuf. 43, 1514–1522 (2012).

DOI: 10.1016/j.compositesa.2012.03.011

[4] Scott, A.E., Sinclair, I., Spearing, S.M., Mavrogordato, M.N., Hepples, W.: Influence of voids on damage mechanisms in carbon/epoxy composites determined via high resolution computed tomography. Compos. Sci. Technol. 90, 147–153 (2014).

DOI: 10.1016/j.compscitech.2013.11.004

[5] R.Brault, a. Germaneau, J. C. Dupré, P. Doumalin, S. Mistou, and M. Fazzini, In-situ Analysis of Laminated Composite Materials by X-Ray Micro-Computed Tomography and Digital Volume Correlation,, Exp. Mech., vol. 53, no. 7, pp.1143-1151, (2013).

DOI: 10.1007/s11340-013-9730-9

[6] P. Wright, A. Moffat, I. Sinclair, S.M. Spearing. High resolution tomographic imaging and modelling of notch tip damage in a laminated composite. Composites Science and Technology 10, 70: 1444-52, (2010).

DOI: 10.1016/j.compscitech.2010.04.012

[7] S. Kalafat, M.G.R. Sause. Comparison of carbon composite failure with thermoset and thermoplastic matrix by in-situ monitoring using computed tomography and acoustic emission. ECCM17 - 17th European Conference on Composite Materials, Munich (2016).

[8] Philipp Potstada, Sebastian Rosini, Mark Mavrogordato, Ian Sinclair, S. Mark Spearing, Markus G. R. Sause. Cross-Validation of Single Filament Failure By Acoustic Emission And High- Resolution Synchrotron Computed Tomography. ECCM18 - 18th European Conference on Composite Materials, Athens (2018).

[9] S. Blassiau, A.R. Bunsell, A. Thionnet. Damage accumulation processes and life prediction in unidirectional composites. Proceedings of the Royal Society A: Mathematical, Physical and Engineering Sciences 2080, 463: 1135-52, (2007).

DOI: 10.1098/rspa.2007.1817

[10] H. Akaike, Markovian representation of stochastic process and its application to the analysis of autoregressive moving average processes,, Ann. Inst. Stat. Math., vol. 26, p.363–387, (1974).

DOI: 10.1007/bf02479833

[11] M.G.R. Sause, A. Gribov, A.R. Unwin, S. Horn. Pattern recognition approach to identify natural clusters of acoustic emission signals. Pattern Recognition Letters 1, 33: 17-23, (2012).

DOI: 10.1016/j.patrec.2011.09.018

[12] M.G.R. Sause, In Situ Monitoring of Fiber-Reinforced Composites: Theory, Basic Concepts, Methods, and Applications; Springer: Berlin, Germany (2016), 485-487.
