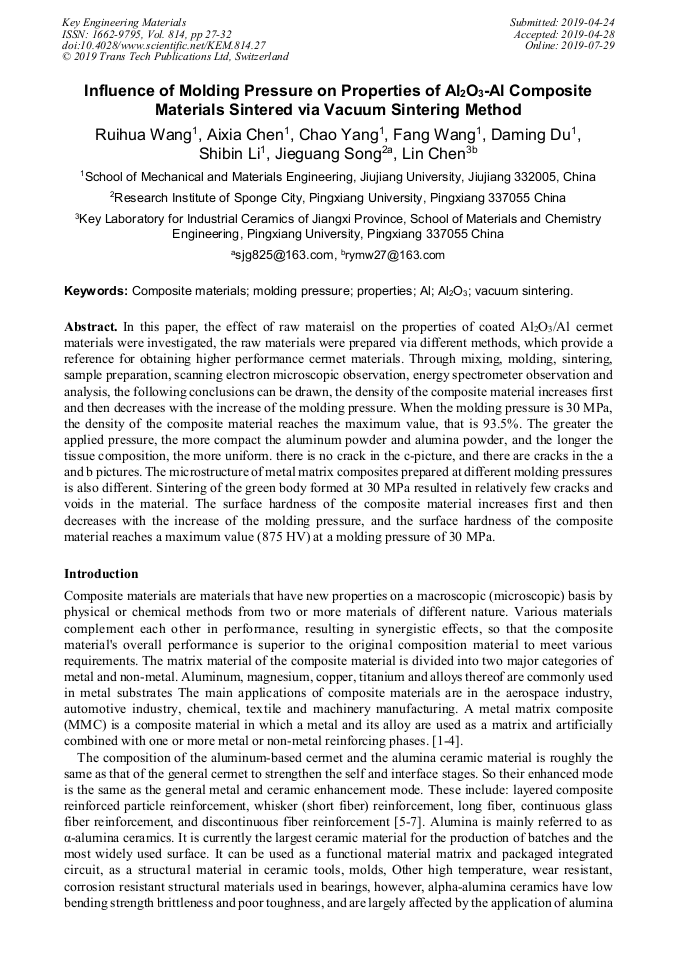

Influence of Molding Pressure on Properties of Al₂O₃- Al Composite Materials Sintered via Vacuum Sintering Method

Abstract:

In this paper, the effect of raw materaisl on the properties of coated Al₂O₃/Al cermet materials were investigated, the raw materials were prepared via different methods, which provide a reference for obtaining higher performance cermet materials. Through mixing, molding, sintering, sample preparation, scanning electron microscopic observation, energy spectrometer observation and analysis, the following conclusions can be drawn, the density of the composite material increases first and then decreases with the increase of the molding pressure. When the molding pressure is 30 MPa, the density of the composite material reaches the maximum value, that is 93.5%. The greater the applied pressure, the more compact the aluminum powder and alumina powder, and the longer the tissue composition, the more uniform. there is no crack in the c-picture, and there are cracks in the a and b pictures. The microstructure of metal matrix composites prepared at different molding pressures is also different. Sintering of the green body formed at 30 MPa resulted in relatively few cracks and voids in the material. The surface hardness of the composite material increases first and then decreases with the increase of the molding pressure, and the surface hardness of the composite material reaches a maximum value (875 HV) at a molding pressure of 30 MPa.

• Periodical: Key Engineering Materials (Volume 814)
• Pages: 27-32
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.814.27
• Online since: July 2019
• Authors: Rui Hua Wang, Ai Xia Chen, Chao Yang, Fang Wang, Da Ming Du, Shi Bin Li, Jie Guang Song*, Lin Chen
• Keywords: Al, Al₂O₃, Composite Materials, Molding Pressure, Properties, Vacuum Sintering

References

[1] H.Y. Li, P. Motamedi, J. D. Hogan, Characterization and mechanical testing on novel (γ + α2)-TiAl/Ti3Al/Al2O3 cermet, Mater. Sci. Eng. A, 750 (2019) 152-163.

DOI: 10.1016/j.msea.2019.02.039

[2] J.G. Song, X.Q. Wang, L. Chen, C.L. Pang, J. Zhang, W.G. Shi, S.L. Guo, X.Z. Wang, R.H. Wang. Preparation and properties of Al-Al2O3 metal ceramics via powder metallurgy methods. J. Ceram. Proc. Res. 19 (2018) 50-53.

[3] L.B. Zhao, N. Lin, Y.H. He, Improvement in microstructure and properties of Ti(C,N)-based cermets with Ruthenium additions, Ceram. Int. 44 (2018) 17553-17561.

DOI: 10.1016/j.ceramint.2018.06.156

[4] T. Gestrich, A. Kaiser, J. Potschke, J. Meinl, S. Hohn, Thermal behaviour of cermets and hardmetals during debinding and sintering, Int. J. Ref. Met. Hard Mater. 73 (2018) 210-214.

DOI: 10.1016/j.ijrmhm.2018.01.008

[5] X.H. Liu, M.L. Zhong, X.Y. Chen, Z.W. Zhao, Separating lithium and magnesium in brine by aluminum-based materials, Hydromet. 176 (2018) 73-77.

DOI: 10.1016/j.hydromet.2018.01.005

[6] Z.Y. Liu, K. Zhao, B.L. Xiao, W.G. Wang, Z.Y. Ma, Fabrication of CNT/Al composites with low damage to CNTs by a novel solution-assisted wet mixing combined with powder metallurgy processing, Mater. Design. 97 (2016) 424-430.

DOI: 10.1016/j.matdes.2016.02.121

[7] K.M. Chen, D.A. Tsai, H.C. Liao, I.G. Chen, W.S. Hwang, Investigation of Al-Cr alloy targets sintered by various powder metallurgy methods and their particle generation behaviors in sputtering process, J. Alloy. Compd. 663 (2016) 52-59.

DOI: 10.1016/j.jallcom.2015.11.231

[8] M.C. Rodríguez, A. Munoz, A.D. Rodríguez, Creep study on alumina and alumina/SWCNT nanocomposites, J. Eur. Ceram. Soc. 38 (2018) 5497-5502.

DOI: 10.1016/j.jeurceramsoc.2018.08.013

[9] S. Singh, R. Singh, Effect of process parameters on micro hardness of Al-Al2O3 composite prepared using an alternative reinforced pattern in fused deposition modelling assisted investment casting, Rob. Comp. Integ. Manuf. 37 (2016) 162-169.

DOI: 10.1016/j.rcim.2015.09.009

[10] R.H. Wang, A.X. Chen, F. Wang, J.G. Song, L. Chen, Preparation and characterization of Al2O3-Al cermet with coated microstructure using powder metallurgy method, Solid State Phen. 279 (2018) 119-123.

DOI: 10.4028/www.scientific.net/ssp.279.119

[11] C.W. Gal, G.W. Song, W.H. Baek, H.K. Kim, S.J. Park, Fabrication of pressureless sintered Si3N4 ceramic balls by powder injection molding, Ceram. Int. 45 (2019) 6418-6424.

DOI: 10.1016/j.ceramint.2018.12.129
