Effects of CeO₂ Addition on Slip - Cast Yttria Tetragonal Zirconia Polycrystals Toughened Alumina (ZTA)

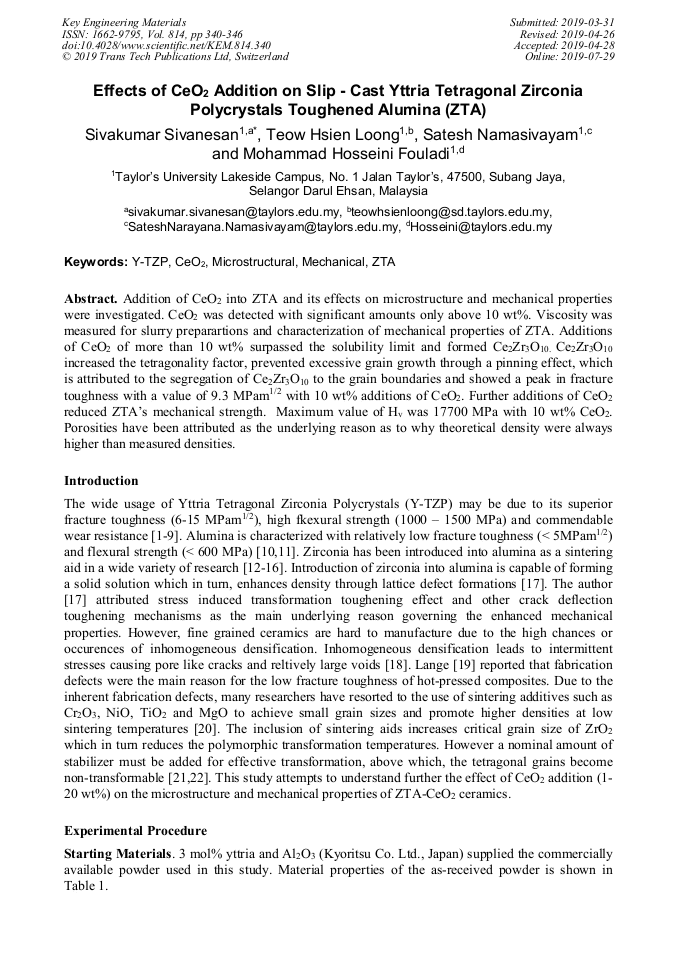

Article Preview

Abstract:

Addition of CeO₂ into ZTA and its effects on microstructure and mechanical properties were investigated. CeO₂ was detected with significant amounts only above 10 wt%. Viscosity was measured for slurry preparartions and characterization of mechanical properties of ZTA. Additions of CeO₂ of more than 10 wt% surpassed the solubility limit and formed Ce₂Zr₃O_10.Ce₂Zr₃O₁₀increased the tetragonality factor, prevented excessive grain growth through a pinning effect, which is attributed to the segregation of Ce₂Zr₃O₁₀ to the grain boundaries and showed a peak in fracture toughness with a value of 9.3 MPam^1/2 with 10 wt% additions of CeO₂. Further additions of CeO₂ reduced ZTA’s mechanical strength. Maximum value of H_v was 17700 MPa with 10 wt% CeO₂. Porosities have been attributed as the underlying reason as to why theoretical density were always higher than measured densities.

You might also be interested in these eBooks

Advanced Materials and Engineering Materials VIII

Info:

Periodical:

Key Engineering Materials (Volume 814)

Pages:

340-346

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.814.340

Citation:

Cite this paper

Online since:

July 2019

Authors:

Sivakumar Sivanesan*, Teow Hsien Loong, Satesh Namasivayam, Mohammad Hosseini Fouladi

Keywords:

CeO₂, Mechanical, Microstructural, Y-TZP, ZTA

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2019 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] T.Masaki, K.Kobayashi, HIGH TOUGHENED PSZ(PARTIALLY STABILISED ZIRCONIA). Advanced Ceramics Oxford, Oxford University Press, (1988) 210-226.

[2] S.Lawson, C.Gill, G.P. Dransfield, The effects of copper and iron oxide additions on the sintering and properties of Y-TZP. Journal of materials science, 30(12), (1995) 3057-3060.

DOI: 10.1007/bf01209217

[3] I.Birkby, R.Stevens, Applications of zirconia ceramics. In Key Engineering Materials 122, Trans Tech Publications. (1996) 527-552.

DOI: 10.4028/www.scientific.net/kem.122-124.527

[4] R. Singh, C.Gill, S.Lawson G.P. Dransfield, Sintering, microstructure and mechanical properties of commercial Y-TZPs. Journal of materials science, 31(22), (1996) 6055-6062.

DOI: 10.1007/bf01152158

[5] S. Sivakumar, R.Singh, T.H. Loong, Y.L. Chuan, K.C. Leong, Effect of Short Time Sintering on the Mechanical Properties of Undoped Zirconia Ceramics. Applied Mechanics & Materials, (2014) 629.

DOI: 10.4028/www.scientific.net/amm.629.420

[6] S. Sivakumar, H.L. Teow, R. Singh, A. Niakan, N. Mase, The effect of iron oxide on the mechanical and ageing properties of Y-TZP ceramic. In Key Engineering Materials 701, Trans Tech Publications. (2016) 225-229.

DOI: 10.4028/www.scientific.net/kem.701.225

[7] S.Sivakumar, S.Ramesh K.L. Chin, C.Y. Teng, Effect of sintering profiles on the properties and ageing resistance of Y-TZP ceramic. International Journal of Automotive and Mechanical Engineering, 4, (2011) 405-413.

DOI: 10.15282/ijame.4.2011.3.0033

[8] M. Amiriyan, M.Satgunam, S.Sivakumar, S. Ramesh, R.Tolouei,, Sinterability and mechanical properties of MnO2-doped Y-TZP: The effects of holding time variations. In Applied Mechanics and Materials.110, (2014) 1284-1288.

DOI: 10.4028/www.scientific.net/amm.110-116.1284

[9] S.Sivanesan, R.Singh, C.K. Leong, The Governance of Sintering Regimes on the Properties and Ageing Resistance of Y-TZP Ceramic. In Advanced Materials Research Trans Tech Publications.545, (2011) 81-87.

DOI: 10.4028/www.scientific.net/amr.545.81

[10] T.Koyama, A. Nishiyama, K. Niihara,, Effect of grain morphology and grain size on the mechanical properties of Al 2 O 3 ceramics. Journal of materials science, 29(15) (2014) 3949-3954.

DOI: 10.1007/bf00355953

[11] S. Ramesh, L.F. Siah, A.N. Azmah, Sintering behaviour of slip-cast Al2O3–Y-TZP composites. Journal of materials science, 35(21), (2000) 5509-5515.

DOI: 10.1023/a:1004837516291

[12] N. Claussen, Fracture toughness of Al2O3 with an unstabilized ZrO2 Dispersed phase. Journal of the American Ceramic Society, 59(1‐2),(1976) 49-51.

DOI: 10.1111/j.1151-2916.1976.tb09386.x

[13] A.N. Pilyankevich, N.Claussen, Toughening of BN by stress-induced phase transformation. Materials Research Bulletin, 13(5), (1978) 413-417.

DOI: 10.1016/0025-5408(78)90147-2

[14] R.C. Garvie, R.H. Hannink, R.T. Pascoe, Ceramic steel?. Nature, 258(5537), (1975) 703.

DOI: 10.1038/258703a0

[15] F.F. Lange, Transformation toughening. Journal of Materials Science, 17(1), (1982) 225-234.

[16] R.F. Pabst, J. Steeb, N. Claussen, Microcracking in a process zone and its relation to continuum fracture mechanics. Crack Growth and Microstructure, (1978) 821-833.

DOI: 10.1007/978-1-4615-7020-2_18

[17] K. Tsukuma, K. Ueda, M. Shimada, Strength and fracture toughness of isostatically hot‐pressed composites of Al2O3 and Y2O3‐partially‐stabilized ZrO2. Journal of the American Ceramic Society, 68(1), (1985) C-4.

DOI: 10.1111/j.1151-2916.1985.tb15251.x

[18] R.M.McMeeking, A.G. Evans, Mechanics of transformation‐toughening in brittle materials. Journal of the American Ceramic Society, 65(5), (1982) 242-246.

DOI: 10.1111/j.1151-2916.1982.tb10426.x

[19] F.F. Lange, M. Metcalf, M., Processing‐related fracture origins: II, agglomerate motion and cracklike internal surfaces caused by differential sintering. Journal of the American Ceramic Society, 66(6), (1983) 398-406.

DOI: 10.1111/j.1151-2916.1983.tb10069.x

[20] Q.Like, L. Xikun, Q.Guanming, M. Weimin, S. Yanbin, Y. Huadong, Study on toughness mechanism of ceramic cutting tools. Journal of Rare Earths, 25, (1995) 309-316.

DOI: 10.1016/s1002-0721(07)60493-1

[21] B.Smuk, M.Szutkowska, J.Walter, J., Alumina ceramics with partially stabilized zirconia for cutting tools. Journal of Materials Processing Technology, 133(1-2), (2003)195-198.

DOI: 10.1016/s0924-0136(02)00232-7

[22] C.L. Lin, D.Gan, P.Shen,The effects of TiO2 addition on the microstructure and transformation of ZrO2 with 3 and 6 mol.% Y2O3. Materials Science and Engineering: A, 129(1), (1990) 147-155.

DOI: 10.1016/0921-5093(90)90353-5

[23] H.Toraya, M.Yoshimura, S.Somiya, Calibration curve for quantitative analysis of the Monoclinic‐Tetragonal ZrO2 system by X‐ray diffraction. Journal of the American Ceramic Society, 67(6), (1984) C-119.

DOI: 10.1111/j.1151-2916.1984.tb19715.x

[24] M.I. Mendelson, Average grain size in polycrystalline ceramics. Journal of the American Ceramic society, 52(8), (1969) 443-446.

DOI: 10.1111/j.1151-2916.1969.tb11975.x

[25] J.Chevalier, J. Gremillard, A.V. Virkar, D.R. Clarke, The tetragonal‐monoclinic transformation in zirconia: lessons learned and future trends. Journal of the American Ceramic Society, 92(9), (2009) 1901-1920.

DOI: 10.1111/j.1551-2916.2009.03278.x

[26] R.H. Hannink, P.M. Kelly, B.C. Muddle, Transformation toughening in zirconia‐containing ceramics. Journal of the American Ceramic Society, 83(3), (2000) 461-487.

DOI: 10.1111/j.1151-2916.2000.tb01221.x

[27] E.S. Elshazly, S.M. El-Hout M.E.S. Ali, Yttria tetragonal zirconia biomaterials: kinetic investigation. Journal of Materials Science & Technology, 27(4), (2011) 332-337.

DOI: 10.1016/s1005-0302(11)60070-4

[28] S.Ramesh, K.S. Lee C.Y. Tan, A review on the hydrothermal ageing behaviour of Y-TZP ceramics. Ceramics International.(2018).

DOI: 10.1016/j.ceramint.2018.08.216

[29] N.A. Rejab, A.Z.A. Azhar, M.M. Ratnam, Z.A. Ahmad, The effects of CeO2 addition on the physical, microstructural and mechanical properties of yttria stabilized zirconia toughened alumina (ZTA). International Journal of Refractory Metals and Hard Materials, 36, (2011) 162-166.

DOI: 10.1016/j.ijrmhm.2012.08.010

[30] P. Duran, M.Gonzalez, C.Moure, J.R. Jurado, C. Pascual,, A new tentative phase equilibrium diagram for the ZrO 2-CeO 2 system in air. Journal of materials science, 25(12), (1996) 5001-5006.

DOI: 10.1007/bf00580121

[31] K.Niihara, A fracture mechanics analysis of indentation-induced Palmqvist crack in ceramics. Journal of materials science letters, 2(5), (1983) 221-223.

DOI: 10.1007/bf00725625

[32] A.Z.A. Azhar, L.C. Choong, H. Mohamed, M.M. Ratnam, Z.A. Ahmad, Effects of Cr2O3 addition on the mechanical properties, microstructure and wear performance of zirconia-toughened-alumina (ZTA) cutting inserts. Journal of Alloys and Compounds, 513, (2012) 91-96.

DOI: 10.1016/j.jallcom.2011.09.092
