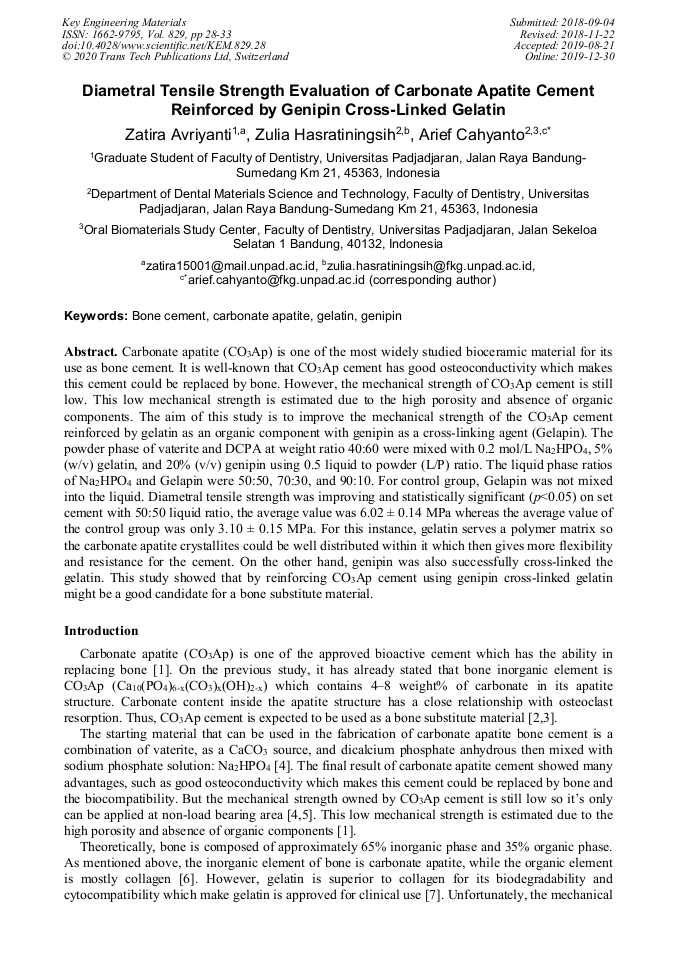

Diametral Tensile Strength Evaluation of Carbonate Apatite Cement Reinforced by Genipin Cross-Linked Gelatin

Abstract:

Carbonate apatite is one of the most widely studied bioceramic material for its use as bone cement. On the previous study, it has already stated that CO₃Ap cement has good osteoconductivity which makes this cement could be replaced by bone. However, the mechanical strength of CO₃Ap cement is still low. This low mechanical strength is estimated due to the high porosity and absence of organic components. The aim of this study is to improve the mechanical strength of the CO₃Ap cement reinforced by gelatin as an organic component with genipin as a cross-linking agent (Gelapin). The powder phase of vaterite and DCPA at weight ratio 40:60 were mixed with 0.2 mol/L Na₂HPO₄, 5% (w/v) gelatin, and 20% (v/v) genipin using 0.5 liquid to powder (L/P) ratio. The liquid phase ratios of Na₂HPO₄ and Gelapin were 50:50, 70:30, and 90:10. For control group, Gelapin were didn’t mixed in the liquid. Diametral tensile strength was improving and statistically significant (p<0.05) on set cement with 50:50 liquid ratio, the average value was 6.02 ± 0.14 MPa whereas the average value of the control group was only 3.10 ± 0.15 MPa. For this instance, gelatin serves a polymer matrix so the carbonate apatite crystallites could be well distributed within it which then gives more flexibility and resistance for the cement. On the other hand, genipin was also successfully cross-linked the gelatin. This study showed that by reinforcing CO₃Ap cement using genipin cross-linked gelatin might be a good candidate for a bone substitute material.

• Periodical: Key Engineering Materials (Volume 829)
• Pages: 28-33
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.829.28
• Online since: December 2019
• Authors: Zatira Avriyanti, Zulia Hasratiningsih, Arief Cahyanto*
• Keywords: Bone Cement, Carbonate Apatite, Gelatin, Genipin

References

[1] K. Hara, K. Fujisawa, H. Nagai, N. Takamaru, G. Ohe, K. Tsuru, K. Ishikawa, Y. Miyamoto, Fabrication and physical evaluation of gelatin-coated carbonate apatite foam, Materials. 9 (2016) 711.

DOI: 10.3390/ma9090711

[2] A. Cahyanto A, M. Maruta, K. Tsuru, S. Matsuya, K. Ishikawa, Basic properties of carbonate apatite cement consisting of vaterite and dicalcium phosphate anhydrous, Key Eng. Mater. 529–530 (2013) 192–196.

DOI: 10.4028/www.scientific.net/kem.529-530.192

[3] A. Cahyanto, K. Ishikawa, K. Tsuru, Effect of setting atmosphere on apatite cement resorption: An in vitro and in vivo study, J. Mech. Behav. Biomed. Mater. 88 (2018) 463-469.

DOI: 10.1016/j.jmbbm.2018.08.021

[4] A. Cahyanto A, M. Maruta, K. Tsuru, S. Matsuya, K. Ishikawa, Fabrication of bone cement that fully transforms to carbonate apatite, Dent. Mater. J. 34(3) (2015) 394–401.

DOI: 10.4012/dmj.2014-328

[5] A. Cahyanto, K. Tsuru, K. Ishikawa, Carbonate apatite formation during setting reaction of apatite cement, Advances in Bioceramics and Porous Ceramics V. 33(6) (2012) 7-10.

DOI: 10.1002/9781118217504.ch2

[6] P. Khanna, R.Z. LeGeros, Properties of gelatin/carbonate apatite composite compared to bovine bone, Key Eng. Mater. 529–530 (2012) 413–416.

DOI: 10.4028/www.scientific.net/kem.529-530.413

[7] SM Kim, SA Yi, SH Choi, KM Kim, YK Lee, Gelatin-layered and multi-sized porous β-tricalcium phosphate for tissue engineering scaffold, Nanoscale Res. Lett. 7 (2012) 1–16.

DOI: 10.1186/1556-276x-7-78

[8] L. Solorio, C. Zwolinski, AW Lund, MJ Farrel, JP Stegemann, Gelatin microspheres crosslinked with genipin for local delivery of growth factors, J. Tissue Eng. Regen. Med. 4(7) (2010) 514-523.

DOI: 10.1002/term.267

[9] Kirchmajer, D., Watson, C., Ranson, M. & in het Panhuis, M. Gelapin, a degradable genipin cross-linked gelatin hydrogel. RSC Advances. 3(4) (2012) 1073-1081.

DOI: 10.1039/c2ra22859a

[10] C. H. Yao, B. S. Liu, C. J. Chang, S. H. Hsu, Y. S. Chen, Preparation of networks of gelatin and genipin as degradable biomaterials, Mater. Chem. Phys. 83 (2004) 204-208.

DOI: 10.1016/j.matchemphys.2003.08.027

[11] B. Manickam, R. Sreedharan, M. Elumalai, Genipin, – The natural water soluble cross-linking agent and its importance in the modified drug delivery system: An overview, Curr. Drug Deliv. 11 (2014) 139-145.

DOI: 10.2174/15672018113106660059

[12] K. Schrodter, G. Bettermann, T. Staffel, F. Wahl, T. Klein, T. Hofmann, Phosphoric acid and phosphates. Ullmann's Encyclopedia of Industrial Chemistry. 26 (2012) 697.

DOI: 10.1002/14356007.a19_465.pub3

[13] A. Bigi, G. Cojazzi, S. Panzavolta, K. Rubini, N. Roveri, Mechanical and thermal properties of gelatin films at different degrees of glutaraldehyde crosslinking. Biomaterials. 22 (2001) 763-768.

DOI: 10.1016/s0142-9612(00)00236-2

[14] C. Tonda-Turo, P. Gentile, S. Saracino, V. Chiono, V.K. Nandagiri, G. Muzio, R.A. Canuto, G. Ciardelli, Comparative analysis of gelatin scaffolds crosslinked by genipin and silane coupling agent, Int. J. Biol. Macromol. 49 (2011) 700-706.

DOI: 10.1016/j.ijbiomac.2011.07.002

[15] J.E. Won, A. El-Fiqi, S.H. Jegal, C.M. Han, E.J. Lee, J.C. Knowles, H.W. Kim, Gelatin-apatite bone mimetic co-precipitates incorporated within biopolymer matrix to improve mechanical and biological properties useful for hard tissue repair, J. Biomater. Appl. 28(8) (2014) 1213-1225.

DOI: 10.1177/0885328213502100

[16] I. A. Neri-Numa, M.G. Pessoa, B.N. Paulino, G.M. Pastore, Genipin: A natural blue pigment for food and health purposes, Trends Food Sci. Technol. 67 (2017) 271-279.

DOI: 10.1016/j.tifs.2017.06.018
