Processing the Results of Measuring the Mechanical Characteristics of Plated Specimens

Abstract:

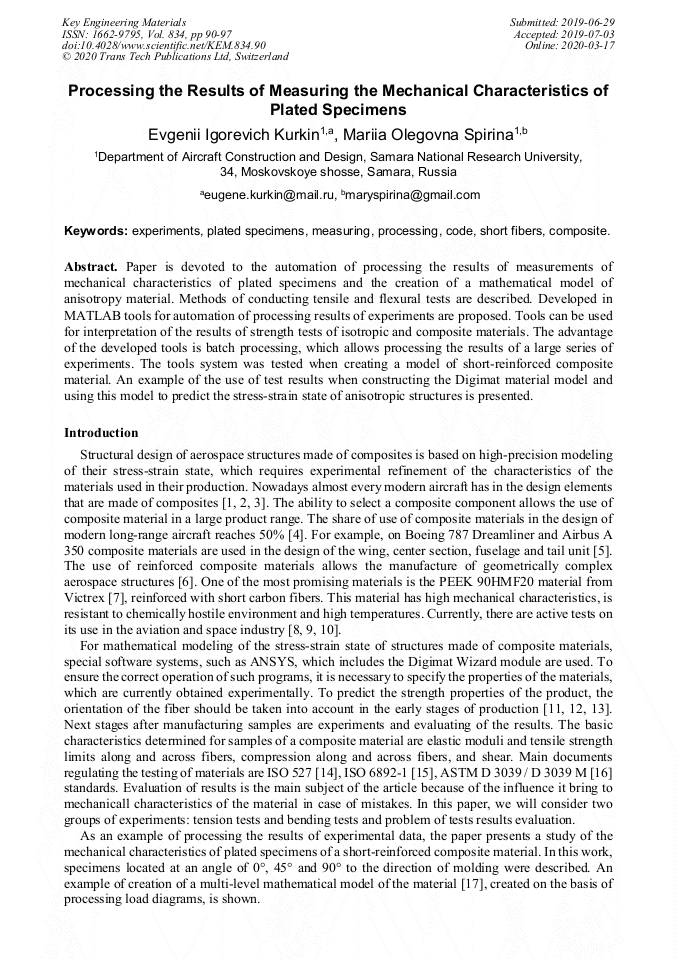

Paper is devoted to the automation of processing the results of measurements of mechanical characteristics of plated specimens and the creation of a mathematical model of anisotropy material. Methods of conducting tensile and flexural tests are described. Developed in MATLAB tools for automation of processing results of experiments are proposed. Tools can be used for interpretation of the results of strength tests of isotropic and composite materials. The advantage of the developed tools is batch processing, which allows processing the results of a large series of experiments. The tools system was tested when creating a model of short-reinforced composite material. An example of the use of test results when constructing the Digimat material model and using this model to predict the stress-strain state of anisotropic structures is presented.

• Periodical: Key Engineering Materials (Volume 834)
• Pages: 90-97
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.834.90
• Online since: March 2020
• Authors: Evgenii Igorevich Kurkin*, Mariia Olegovna Spirina
• Keywords: Code, Composite, Experiment, Measuring, Plated Specimens, Processing, Short Fibers
