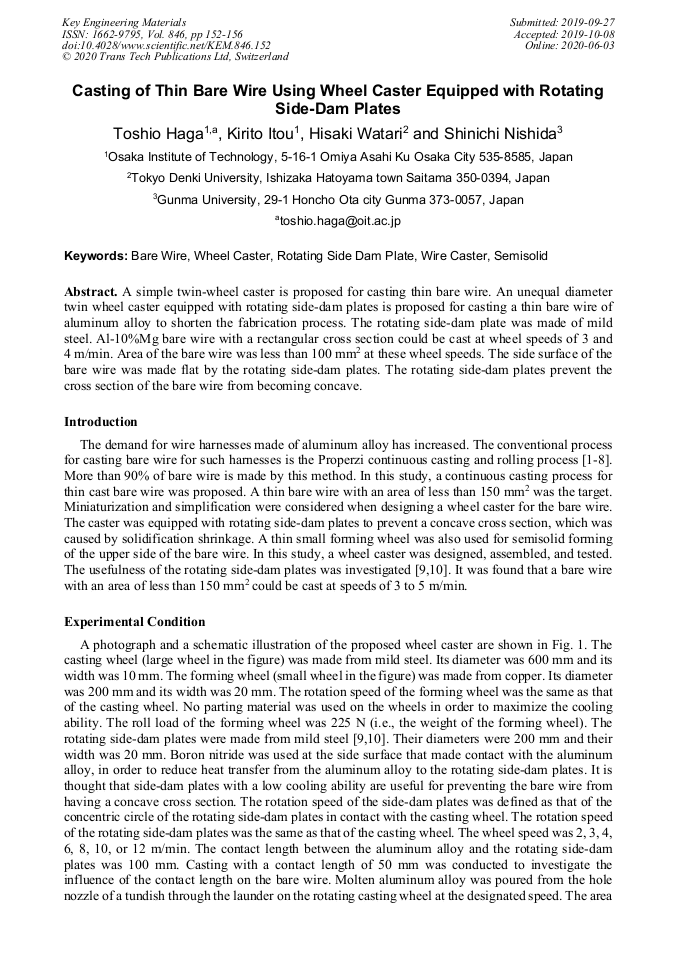

Casting of Thin Bare Wire Using Wheel Caster Equipped with Rotating Side-Dam Plates

Abstract:

A simple twin-wheel caster is proposed for casting thin bare wire. An unequal diameter twin wheel caster equipped with rotating side-dam plates is proposed for casting a thin bare wire of aluminum alloy to shorten the fabrication process. The rotating side-dam plate was made of mild steel. Al-10%Mg bare wire with a rectangular cross section could be cast at wheel speeds of 3 and 4 m/min. Area of the bare wire was less than 100 mm² at these wheel speeds. The side surface of the bare wire was made flat by the rotating side-dam plates. The rotating side-dam plates prevent the cross section of the bare wire from becoming concave.

You might also be interested in these eBooks

Engineering and Innovative Materials VIII

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 846)

Pages:

152-156

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.846.152

Citation:

Cite this paper

Online since:

June 2020

Authors:

Toshio Haga*, Kirito Itou, Hisaki Watari, Shinichi Nishida

Keywords:

Bare Wire, Rotating Side Dam Plate, Semisolid, Wheel Caster, Wire Caster

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Giuseppe E. Marcantoni, FROM MOLTEN METAL TO 3.2 mm WIRE FOR MECHANICAL APPLICATIONS, Light Metals 2012 Edited by: Carlos E. Suarez TMS (2012).

DOI: 10.1002/9781118359259.ch44

Google Scholar

[2] Y. Otsuka, T. Nishikawa, Y. Yoshimoto, Y. Akasofu, Development of Aluminum Wire for Low-Voltage Automotive Wiring Harnesses, SAE Int. J. Passeng. Cars - Electron. Electr. Syst. 5(2012)486-491.

DOI: 10.4271/2012-01-0925

Google Scholar

[3] M. G. Kim, Continuous Casting and Rolling for Aluminum Alloy Wire and Rod,, Materials Science Forum, 638-642(2010)255-260.

DOI: 10.4028/www.scientific.net/msf.638-642.255

Google Scholar

[4] M. Jabłoński, Effect of Iron Addition to Aluminium on the Structure and Properties of Wires Used for Electrical Purposes, Materials Science Forum, 690(2011)459-462.

DOI: 10.4028/www.scientific.net/msf.690.459

Google Scholar

[5] K. Buxmann, E. Gold, Solidification Conditions and Microstructure in Continuously Cast Aluminum 　 JOURNAL OF METALS　April 1982, Volume 34(1982)28–34.

DOI: 10.1007/bf03337996

Google Scholar

[6] N. Cheung, N. Santos, J. Quaresma, G. Dulikravich, A. Garcia, Interfacial heat transfer coefficients and solidification of an aluminum alloy in a rotary continuous caster, Int. J. Heat & Mass Transfer,52(2009)451-459.

DOI: 10.1016/j.ijheatmasstransfer.2008.07.003

Google Scholar

[7] D. Lewis, THE PRODUCTION OF NON-FERROUS METAL SLAB AND BAR BY CONTINUOUS-CASTING AND ROLLING METHODS, Metallurgical Reviews, 6(1961) 143- 192.

DOI: 10.1179/mtlr.1961.6.1.143

Google Scholar

[8] J. Birat, Continuous casting for tomorrow: Near-Net Shape Casting, Rev. Met. Paris, 86(1989) 317-334.

DOI: 10.1051/metal/198986040317

Google Scholar

[9] T. Haga, T. Miyake, Investigation of Side-Dam Plate in Single-Wheel Caster for Casting Rods: Key Engineering Materials, Vol. 805(2019), pp.31-36.

DOI: 10.4028/www.scientific.net/kem.805.31

Google Scholar

[10] T. Haga, T. Miyake, Fabrication of Aluminum Alloy Rods Using a Single Wheel Caster with Rotating Side Dam Plates and Pool-Less Pouring: Key Engineering Materials, Vol. 792(2018), pp.35-40.

DOI: 10.4028/www.scientific.net/kem.792.35

Google Scholar
