Wear and Adhesion Properties of High-Pressure Torsion Processed Carbon Steel

Hirotaka Kato; Kouhei Yamashita; Yoshikazu Todaka

doi:10.4028/www.scientific.net/KEM.846.157

Paper Titles

The Effects of Cutting Parameters to the Surface Roughness in High Speed Cutting of Micro-Milling Titanium Alloy Ti-6Al-4V
p.133

Burring Process and Fracture Criterion of Large Diameter Steel Pipe
p.139

Burr Formation in Casting Using Vertical-Type High-Speed Twin-Roll Caster
p.146

Casting of Thin Bare Wire Using Wheel Caster Equipped with Rotating Side-Dam Plates
p.152

Wear and Adhesion Properties of High-Pressure Torsion Processed Carbon Steel
p.157

Experimental Investigation on the Failure Mechanism of Grooved Steel Plate Impacted by Projectile with Different Nose Shapes
p.162

Formation of TiO₂ Thin Film on Antibacterial Metal Injection Molding Stainless Steel Orthodontic Bracket 17-4 PH Using Physical Vapor Deposition Method
p.169

Alkali-Heat Treatment of Ti-6Al-4V to Hydroxyapatite Coating Using Electrophoretic Method
p.175

The Mechanical Properties of Sisal/PMMA and Sisal/Carbon/PMMA Biomedical Composites
p.181

HomeKey Engineering MaterialsKey Engineering Materials Vol. 846Wear and Adhesion Properties of High-Pressure...

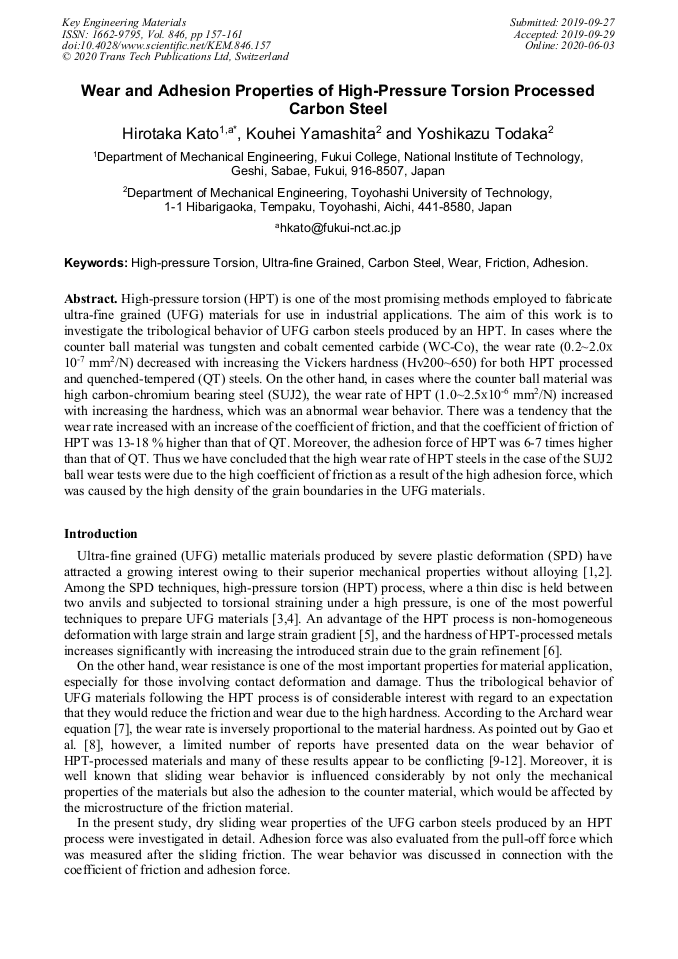

Wear and Adhesion Properties of High-Pressure Torsion Processed Carbon Steel

Abstract:

High-pressure torsion (HPT) is one of the most promising methods employed to fabricate ultra-fine grained (UFG) materials for use in industrial applications. The aim of this work is to investigate the tribological behavior of UFG carbon steels produced by an HPT. In cases where the counter ball material was tungsten and cobalt cemented carbide (WC-Co), the wear rate (0.2~2.0x10^-7 mm²/N) decreased with increasing the Vickers hardness (Hv200~650) for both HPT processed and quenched-tempered (QT) steels. On the other hand, in cases where the counter ball material was high carbon-chromium bearing steel (SUJ2), the wear rate of HPT (1.0~2.5x10^-6 mm²/N) increased with increasing the hardness, which was an abnormal wear behavior. There was a tendency that the wear rate increased with an increase of the coefficient of friction, and that the coefficient of friction of HPT was 13-18 % higher than that of QT. Moreover, the adhesion force of HPT was 6-7 times higher than that of QT. Thus we have concluded that the high wear rate of HPT steels in the case of the SUJ2 ball wear tests were due to the high coefficient of friction as a result of the high adhesion force, which was caused by the high density of the grain boundaries in the UFG materials.
