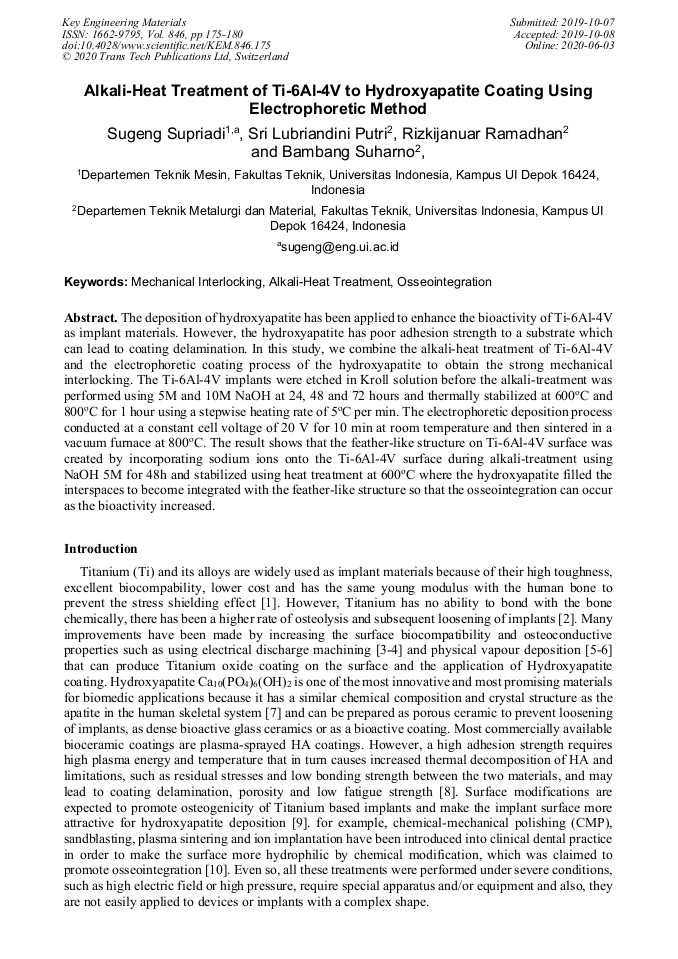

Alkali-Heat Treatment of Ti-6Al-4V to Hydroxyapatite Coating Using Electrophoretic Method

Abstract:

The deposition of hydroxyapatite has been applied to enhance the bioactivity of Ti-6Al-4V as implant materials. However, the hydroxyapatite has poor adhesion strength to a substrate which can lead to coating delamination. In this study, we combine the alkali-heat treatment of Ti-6Al-4V and the electrophoretic coating process of the hydroxyapatite to obtain the strong mechanical interlocking. The Ti-6Al-4V implants were etched in Kroll solution before the alkali-treatment was performed using 5M and 10M NaOH at 24, 48 and 72 hours and thermally stabilized at 600°C and 800°C for 1 hour using a stepwise heating rate of 5°C per min. The electrophoretic deposition process conducted at a constant cell voltage of 20 V for 10 min at room temperature and then sintered in a vacuum furnace at 800°C. The result shows that the feather-like structure on Ti-6Al-4V surface was created by incorporating sodium ions onto the Ti-6Al-4V surface during alkali-treatment using NaOH 5M for 48h and stabilized using heat treatment at 600°C where the hydroxyapatite filled the interspaces to become integrated with the feather-like structure so that the osseointegration can occur as the bioactivity increased.

• Periodical: Key Engineering Materials (Volume 846)
• Pages: 175-180
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.846.175
• Online since: June 2020
• Authors: Sugeng Supriadi*, Sri Lubriandini Putri, Rizkijanuar Ramadhan, Bambang Suharno
• Keywords: Alkali-Heat Treatment, Mechanical Interlocking, Osseointegration

References

[1] Brunette DM. Titanium in medicine: material science, surface science, engineer- ing, biological responses, and medical applications. Springer Verlag Engineering Materials. (2001).

[2] de-Nies F, Fidler MW. The Harris-Galante cementless femoral component: poor results in 57 hips followed for 3 years. Acta Orthop Scand 1996; 67: 122-4.

DOI: 10.3109/17453679608994654

[3] N. Qosim, S. Supriadi, P. Puspitasari, and P. Kreshanti, Mechanical Surface Treatments of Ti-6Al-4V Miniplate Implant Manufactured by Electrical Discharge Machining,, Int. J. Eng., vol. 31, no. 7, p.1103–1108, (2018).

DOI: 10.5829/ije.2018.31.07a.14

[4] N. Qosim, S. Supriadi, A. S. Saragih, and Y. Whulanza, Surface treatments of Ti-alloy based bone implant manufactured by electrical discharge machining,, Ing. y Univ. Eng. Dev., vol. 22, no. 2, p.1–12, (2018).

DOI: 10.11144/javeriana.iyu22-2.sttb

[5] N. Qosim, S. Supriadi, J. Istiyanto, A. S. Saragih, and Y. Whulanza, Surface characteristics of Ti6Al4V-EDM implant engineered by PVD coated-etching and Acidithiobacillus ferrooxidans based-biomachining,, AIP Conf. Proc., vol. 020005, p.5–10, (2018).

DOI: 10.1063/1.5051974

[6] S. Supriadi, B. Suharno, N. K. Nugraha, A. O. Yasinta, and D. Annur, Adhesiveness of TiO2 PVD coating on electropolished stainless steel 17-4 PH orthodontic bracker,, Mater. Res. Express, vol. 6, p.94003,(2019).

DOI: 10.1088/2053-1591/ab2b65

[7] D. Tadic, F. Peters, M. Epple,Continuous synthesis of amorphous carbonated a particles,, Biomaterials 2001, 23:2553-9.

DOI: 10.1016/s0142-9612(01)00390-8

[8] S. Nishiguchi, T. Nakamura, M. Kobayashi, H. Kim, F. Miyaji, T. Kokubo, The effect of heat treatment on bone-bonding ability of alkali-treated titanium, Biomaterials 20(5)(1999)491-500.

DOI: 10.1016/s0142-9612(98)90203-4

[9] S. Nishiguchi, S. Fujibayashi, H. Kim, T. Kokubo, T. Nakamura, Biology of alkali- and heat-treated titanium implants, J. Biomed. Mater. Res. A 67 (1) (2003) 26–35.

DOI: 10.1002/jbm.a.10540

[10] S. Nishiguchi, H. Kato, H. Fujita, M. Oka, H. Kim, T. Kokubo, et al., Titanium metals form direct bonding to bone after alkali and heat treatments, Biomaterials 22 (18) (2001) 2525–2533.

DOI: 10.1016/s0142-9612(00)00443-9

[11] S. Komasa, Y. Taguchi, H. Nishida, M. Tanaka, T. Kawazoe, Bioactivity of nanostruc-ture on titanium surface modified by chemical processing at room temperature.

DOI: 10.1016/j.jpor.2011.12.002

[12] Su Y, Komasa S, Sekino T, Nishizaki H, Okazaki J. Characterization and bone differentiation of nanoporous structure fabricated on Ti6Al4V alloy. J Nanomater 2015; 2015. Article ID 358951.

DOI: 10.1155/2015/358951

[13] W. Zhang, H. Cao, X. Zhang, G. Li, Q. Chang, J. Zhao, et al. A Srontium-incorporated nanoporous titanium implant surface for rapid osseointegration. Nanoscale (2016); 8; 5291-301.

DOI: 10.1039/c5nr08580b

[14] Z. Zhang, M. F. Dunn, T. Xiao, A. P. Tomsia, E. Saiz, Nanostructured hydroxyapatite coatings for improved adhesion and corrosion resistance for medical implants., MRS Proceeding. Cambridge University Press; vol 703, (2001).

DOI: 10.1557/proc-703-v7.5

[15] X. Nie, A. Leyland, A. Matthews, Deposition of layered bioceramic hydroxyapatite/TiO2 coatings on titanium alloys using a hybrid technique of micro-arc ocidation and electrophoresis., Surface and Coatings Technology 200; 125: 407-14.

DOI: 10.1016/s0257-8972(99)00612-x
