Anodization of Highly Ordered Titania Nanotube Prepared with Organic Electrolyte

Abstract:

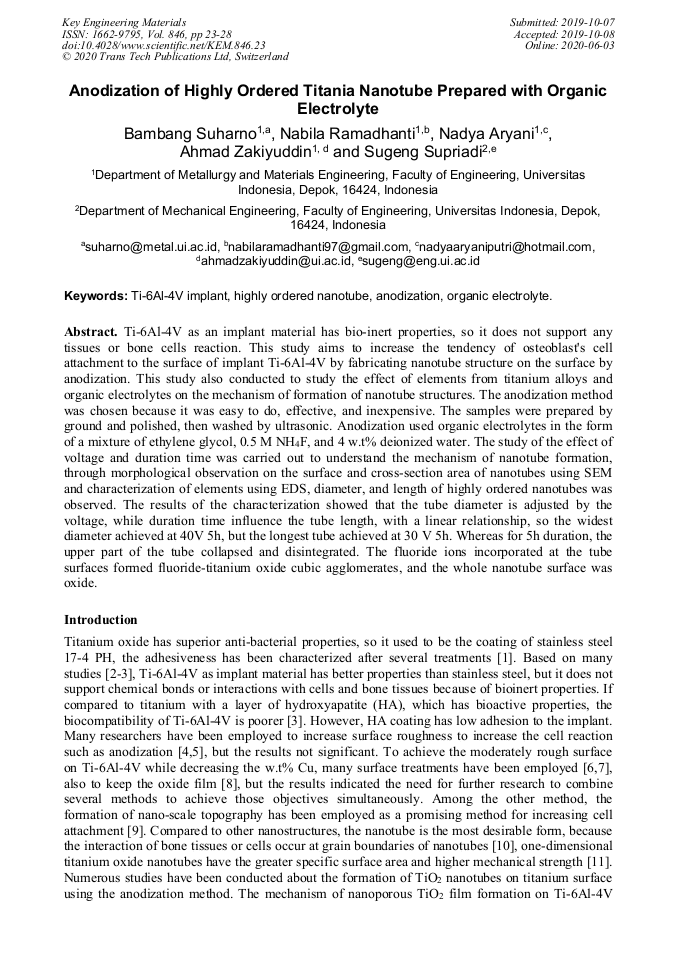

Ti-6Al-4V as an implant material has bio-inert properties, so it does not support any tissues or bone cells reaction. This study aims to increase the tendency of osteoblast's cell attachment to the surface of implant Ti-6Al-4V by fabricating nanotube structure on the surface by anodization. This study also conducted to study the effect of elements from titanium alloys and organic electrolytes on the mechanism of formation of nanotube structures. The anodization method was chosen because it was easy to do, effective, and inexpensive. The samples were prepared by ground and polished, then washed by ultrasonic. Anodization used organic electrolytes in the form of a mixture of ethylene glycol, 0.5 M NH₄F, and 4 w.t% deionized water. The study of the effect of voltage and duration time was carried out to understand the mechanism of nanotube formation, through morphological observation on the surface and cross-section area of nanotubes using SEM and characterization of elements using EDS, diameter, and length of highly ordered nanotubes was observed. The results of the characterization showed that the tube diameter is adjusted by the voltage, while duration time influence the tube length, with a linear relationship, so the widest diameter achieved at 40V 5h, but the longest tube achieved at 30 V 5h. Whereas for 5h duration, the upper part of the tube collapsed and disintegrated. The fluoride ions incorporated at the tube surfaces formed fluoride-titanium oxide cubic agglomerates, and the whole nanotube surface was oxide.

• Periodical: Key Engineering Materials (Volume 846)
• Pages: 23-28
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.846.23
• Online since: June 2020
• Authors: Bambang Suharno*, Nabila Ramadhanti, Nadya Aryani, Ahmad Zakiyuddin, Sugeng Supriadi
• Keywords: Anodization, Highly Ordered Nanotube, Organic Electrolyte, Ti-6Al-4V Implant

References

[1] S. Supriadi, B. Suharno, N. K. Nugraha, A. O. Yasinta, and D. Annur, Adhesiveness of TiO2 PVD coating on electropolished stainless steel 17–4 PH orthodontic bracket,, Mater. Res. Express, vol. 6, p.94003, (2019).

DOI: 10.1088/2053-1591/ab2b65

[2] A. F. von Recum, Handbook of Biomaterials Evaluation: Scientific, Technical And Clinical Testing Of Implant Materials, 2nd ed. CRC Press, (1998).

[3] X. Liu, P. K. Chu, and C. Ding, Surface modification of titanium, titanium alloys, and related materials for biomedical applications,, Mater. Sci. Eng. R Reports, vol. 47, no. 3–4, p.49–121, (2004).

DOI: 10.1016/j.mser.2004.11.001

[4] M. Manjaiah and R. F. Laubscher, Surface engineering of titanium for biomedical applications by anodization,, in International Conference on Competitive Manufacturing, 2006, p.1–5.

[5] E. Vermesse, C. Mabru, and L. Arurault, Surface integrity after pickling and anodization of Ti-6Al-4V titanium alloy,, Appl. Surf. Sci., vol. 285 Part B, p.629–637, (2013).

DOI: 10.1016/j.apsusc.2013.08.103

[6] N. Qosim, S. Supriadi, A. S. Saragih, and Y. Whulanza, Surface treatments of Ti-alloy based bone implant manufactured by electrical discharge machining,, Ing. y Univ. Eng. Dev., vol. 22, no. 2, p.1–12, (2018).

DOI: 10.11144/javeriana.iyu22-2.sttb

[7] N. Qosim, S. Supriadi, P. Puspitasari, and P. Kreshanti, Mechanical Surface Treatments of Ti-6Al-4V Miniplate Implant Manufactured by Electrical Discharge Machining,, Int. J. Eng., vol. 31, no. 7, p.1103–1108, (2018).

DOI: 10.5829/ije.2018.31.07a.14

[8] N. Qosim, S. Supriadi, J. Istiyanto, A. S. Saragih, and Y. Whulanza, Surface characteristics of Ti6Al4V-EDM implant engineered by PVD coated-etching and Acidithiobacillus ferrooxidans based-biomachining,, AIP Conf. Proc., vol. 020005, p.5–10, (2018).

DOI: 10.1063/1.5051974

[9] L. Salou, A. Hoornaert, G. Louarn, and P. Layrolle, Enhanced osseointegration of titanium implants with nanostructured surfaces: An experimental study in rabbits,, Acta Biomater., vol. 11, no. 1, p.494–502, (2015).

DOI: 10.1016/j.actbio.2014.10.017

[10] S. Kim, M. Jung, M. Kim, and J. Choi, Bi-functional anodic TiO2 oxide: Nanotubes for wettability control and barrier oxide for uniform coloring,, Appl. Surf. Sci., vol. 407, p.353–360, (2017).

DOI: 10.1016/j.apsusc.2017.02.166

[11] H. Shi, Formation mechanism of anodic TiO2 nanotubes,, Adv. Eng. Res., vol. 123, p.785–788, (2017).

[12] V. Zwilling, D. David, M. Y. Perrin, and M. Aucouturier, Structure and Physicochemistry of Anodic Oxide Films on Titanium and TA6V Alloy,, Surf. Interface Anal., vol. 27, p.629–637, (1999).

DOI: 10.1002/(sici)1096-9918(199907)27:7<629::aid-sia551>3.0.co;2-0

[13] P. Roy, S. Berger, and P. Schmuki, TiO2 Nanotubes: Synthesis and Applications,, Angew. Chemie - Int. Ed., vol. 50, p.2904–2939, (2011).

DOI: 10.1002/anie.201001374

[14] D. Gong, C. A. Grimes, O. K. Varghese, W. Hu, R. S. Singh, and Z. Chen, Titanium oxide nanotube arrays prepared by anodic oxidation,, J. Mater. Res, vol. 16, no. 12, p.3331–3334, (2001).

DOI: 10.1557/jmr.2001.0457

[15] K. Indira, U. K. Mudali, T. Nishimura, and N. Rajendran, A Review on TiO2 Nanotubes: Influence of Anodization Parameters, Formation Mechanism, Properties, Corrosion Behavior, and Biomedical Applications,, J. Bio- Tribo-Corrosion, vol. 1, no. 28, p.1–22, (2015).

DOI: 10.1007/s40735-015-0024-x

[16] K. A. Saharudin, S. Sreekantan, S. N. Q. A. A. Aziz, R. Hazan, and C. W. Lai, Surface Modification and Bioactivity of Anodic Ti6Al4V Alloy,, J. Nanosci. Nanotechnol., vol. 13, no. 3, p.1696–1705, (2013).

DOI: 10.1166/jnn.2013.7115

[17] K. S. Brammer, S. Oh, C. J. Cobb, L. M. Bjursten, H. van der Heyde, and S. Jin, Improved bone-forming functionality on diameter-controlled TiO2 nanotube surface,, Acta Biomater., vol. 5, p.3215–3223, (2009).

DOI: 10.1016/j.actbio.2009.05.008
