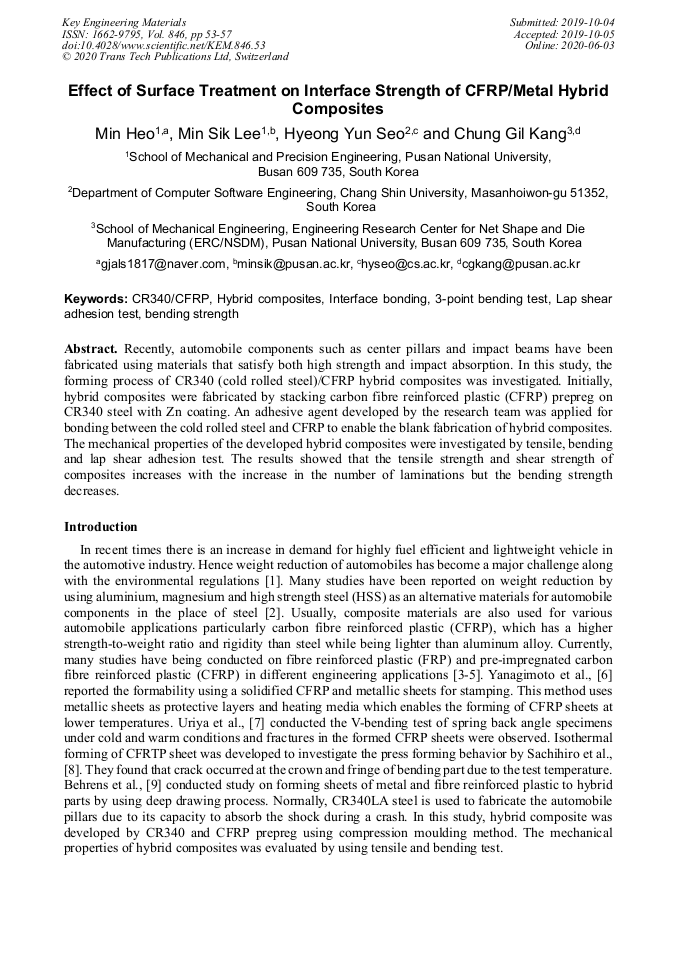

Effect of Surface Treatment on Interface Strength of CFRP/Metal Hybrid Composites

Abstract:

Recently, automobile components such as center pillars and impact beams have been fabricated using materials that satisfy both high strength and impact absorption. In this study, the forming process of CR340 (cold rolled steel)/CFRP hybrid composites was investigated. Initially, hybrid composites were fabricated by stacking carbon fibre reinforced plastic (CFRP) prepreg on CR340 steel with Zn coating. An adhesive agent developed by the research team was applied for bonding between the cold rolled steel and CFRP to enable the blank fabrication of hybrid composites. The mechanical properties of the developed hybrid composites were investigated by tensile, bending and lap shear adhesion test. The results showed that the tensile strength and shear strength of composites increases with the increase in the number of laminations but the bending strength decreases.

• Periodical: Key Engineering Materials (Volume 846)
• Pages: 53-57
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.846.53
• Online since: June 2020
• Authors: Min Heo*, Min Sik Lee, Hyung Yoon Seo, Chung Gil Kang
• Keywords: 3-Point Bending Test, Bending Strength, CR340/CFRP, Hybrid Composites, Interface Bonding, Lap Shear Adhesion Test

References

[1] M.P. Todor and I. Kiss: Systematic approach on materials selection in the automotive industry for making vehicles lighter, safer and more fuel efficient, Applied Engg. Letters, Vol.46, (2016), pp.91-97.

[2] M. Kleiner, M. Geiger, A. Klaus: CIRP Annals - Manufacturing Technology, Vol.52, (2003), pp.521-542.

DOI: 10.1016/s0007-8506(07)60202-9

[3] R. Teti: Machining of Composite Materials, CIRP Annals - Manufacturing Technology, Vol. 51, (2002), pp.611-634.

DOI: 10.1016/s0007-8506(07)61703-x

[4] B.C. Shin, K.B. Kim, S.J. Ha, M.W. Cho: A study on the machinability of Carbon Fiber Reinforced Plastics on tool shape, The Korean Society of Manufacturing Technology Engineers, Vol.20, (2011), pp.799-804.

[5] Jason rowe: Advanced materials in automotive engineering (Woodhead publishing, U.K 2012).

[6] J. Yanagimoto, K. Ikeuchi: "Sheet forming process of carbon fiber reinforced plastics for lightweight parts, CIRP Annals - Manufacturing Technology, Vol.61, (2012), pp.247-250.

DOI: 10.1016/j.cirp.2012.03.129

[7] Y. Uriya, K. Ikeuch, J. Yanagimot:, Cold and warm V-bending test for carbon-fiber-reinforced plastic sheet, Procedia Engineering,Vol.81, (2014), pp.1633-1638.

DOI: 10.1016/j.proeng.2014.10.203

[8] S. Isogawa, H. Aoki, M. Tejima, 2014, Isothermal forming of CFRTP sheet by penetration of hemispherical punch, Procedia Engineering, Vol.81, (2014), pp.1620-1626.

DOI: 10.1016/j.proeng.2014.10.201

[9] B. Behrens, S. Hübner, A. Neumann: Forming sheets of metal and fibre-reinforced plastics to hybrid parts in one deep drawing process, Procedia Engineering, Vol.81, (2014), pp.1608-1613.

DOI: 10.1016/j.proeng.2014.10.198

[10] Information on http://www.hcarbon.com.

[11] Information on http://www.torayca.com.

[12] ASTM International: Standard Guide for Testing Polymer Matrix Composite Materials, ASTM D4762, (2011).

[13] ASTM International: Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials, ASTM D3039/D3039M, (2014).
