Fabrication of Compact Magnesium Disk by Spark Plasma Sintering

Abstract:

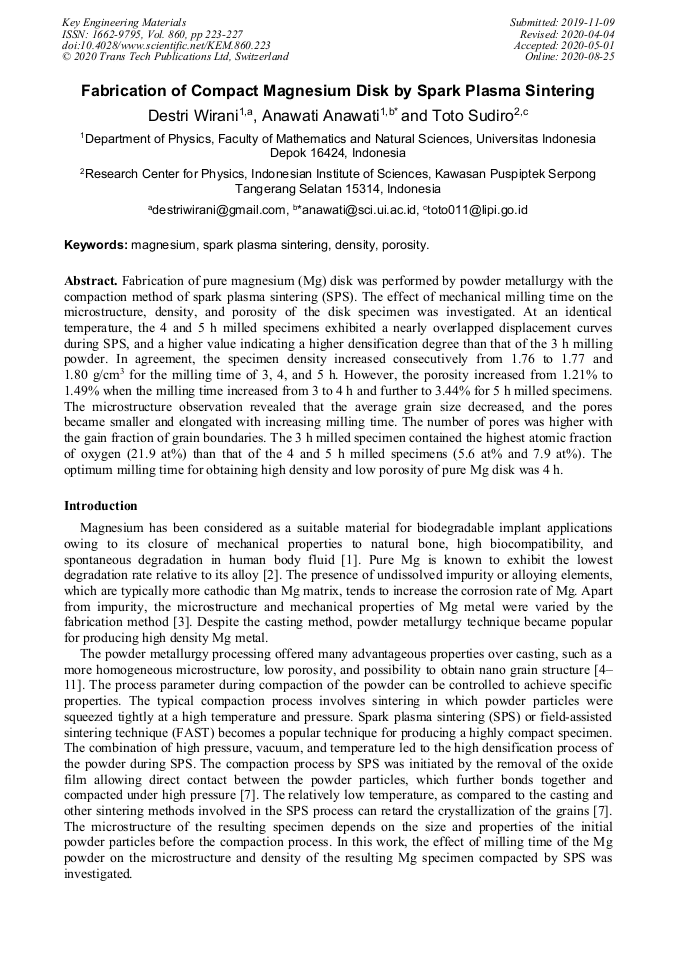

Fabrication of pure magnesium (Mg) disk was performed by powder metallurgy with the compaction method of spark plasma sintering (SPS). The effect of mechanical milling time on the microstructure, density, and porosity of the disk specimen was investigated. At an identical temperature, the 4 and 5 h milled specimens exhibited a nearly overlapped displacement curves during SPS, and a higher value indicating a higher densification degree than that of the 3 h milling powder. In agreement, the specimen density increased consecutively from 1.76 to 1.77 and 1.80 g/cm³ for the milling time of 3, 4, and 5 h. However, the porosity increased from 1.21% to 1.49% when the milling time increased from 3 to 4 h and further to 3.44% for 5 h milled specimens. The microstructure observation revealed that the average grain size decreased, and the pores became smaller and elongated with increasing milling time. The number of pores was higher with the gain fraction of grain boundaries. The 3 h milled specimen contained the highest atomic fraction of oxygen (21.9 at%) than that of the 4 and 5 h milled specimens (5.6 at% and 7.9 at%). The optimum milling time for obtaining high density and low porosity of pure Mg disk was 4 h.

• Periodical: Key Engineering Materials (Volume 860)
• Pages: 223-227
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.860.223
• Online since: August 2020
• Authors: Destri Wirani, Anawati Anawati*, Toto Sudiro
• Keywords: Density, Magnesium, Porosity, Spark Plasma Sintering

References

[1] M. Pekguleryuz, K. Kainer, A. Kaya, Fundamentals of Magnesium Alloy, Woodhead Publishing Ltd., Cambridge, UK, (2013).

[2] G. Song, Control of biodegradation of biocompatable magnesium alloys, Corros. Sci. 49 (2007) 1696–1701.

DOI: 10.1016/j.corsci.2007.01.001

[3] E.P. DeGarmo, J.T. Black, R.A. Kohser, Materials and Processes in Engineering, 10th ed., Wiley, (2007).

[4] R.S. Lei, M.P. Wang, M.X. Guo, Z. Li, L.F. Cao, C. Chen, Microstructure and mechanical properties of copper-niobium alloy prepared by mechanical alloying, Cailiao Rechuli Xuebao/Transactions Mater. Heat Treat. 28 (2007) 39–43.

[5] W.N.A.W. Muhammad, Z. Sajuri, Y. Mutoh, Y. Miyashita, Microstructure and mechanical properties of magnesium composites prepared by spark plasma sintering technology, J. Alloys Compd. 509 (2011) 6021–6029.

DOI: 10.1016/j.jallcom.2011.02.153

[6] C. Prakash, S. Singh, K. Verma, S.S. Sidhu, S. Singh, Synthesis and characterization of Mg-Zn-Mn-HA composite by spark plasma sintering process for orthopedic applications, Vacuum. 155 (2018) 578–584.

DOI: 10.1016/j.vacuum.2018.06.063

[7] R. Liu, W. Wang, H. Chen, Z. Lu, W. Zhao, T. Zhang, Densification of pure magnesium by spark plasma sintering-discussion of sintering mechanism, Adv. Powder Technol. 30 (2019) 2649–2658.

DOI: 10.1016/j.apt.2019.08.012

[8] M. Wang, R. Li, T. Yuan, C. Chen, L. Zhou, H. Chen, M. Zhang, S. Xie, Microstructures and mechanical property of AlMgScZrMn - A comparison between selective laser melting, spark plasma sintering and cast, Mater. Sci. Eng. A. 756 (2019) 354–364.

DOI: 10.1016/j.msea.2019.04.060

[9] S. Nam, S. Kang, B.-N. Kim, I.-H. Jung, Y.-M. Kim, Post-annealing effect on transparent Mg-Zn aluminate solid solutions fabricated by spark plasma sintering, J. Eur. Ceram. Soc. 39 (2019) 5350–5357.

DOI: 10.1016/j.jeurceramsoc.2019.08.027

[10] Z. Cui, W. Li, L. Cheng, D. Gong, W. Cheng, W. Wang, Effect of nano-HA content on the mechanical properties, degradation and biocompatible behavior of Mg-Zn/HA composite prepared by spark plasma sintering, Mater. Charact. 151 (2019) 620–631.

DOI: 10.1016/j.matchar.2019.03.048

[11] R. Halder, S. Bandyopadhyay, Spark plasma sintering of nano magnesia: Processing parameters influencing optical properties, Mater. Chem. Phys. 228 (2019) 51–59.

DOI: 10.1016/j.matchemphys.2019.02.027

[12] J. Soderlind, M. Cihova, R. Schäublin, S. Risbud, J.F. Löffler, Towards refining microstructures of biodegradable magnesium alloy WE43 by spark plasma sintering, Acta Biomater. (2019).

DOI: 10.1016/j.actbio.2019.06.045
