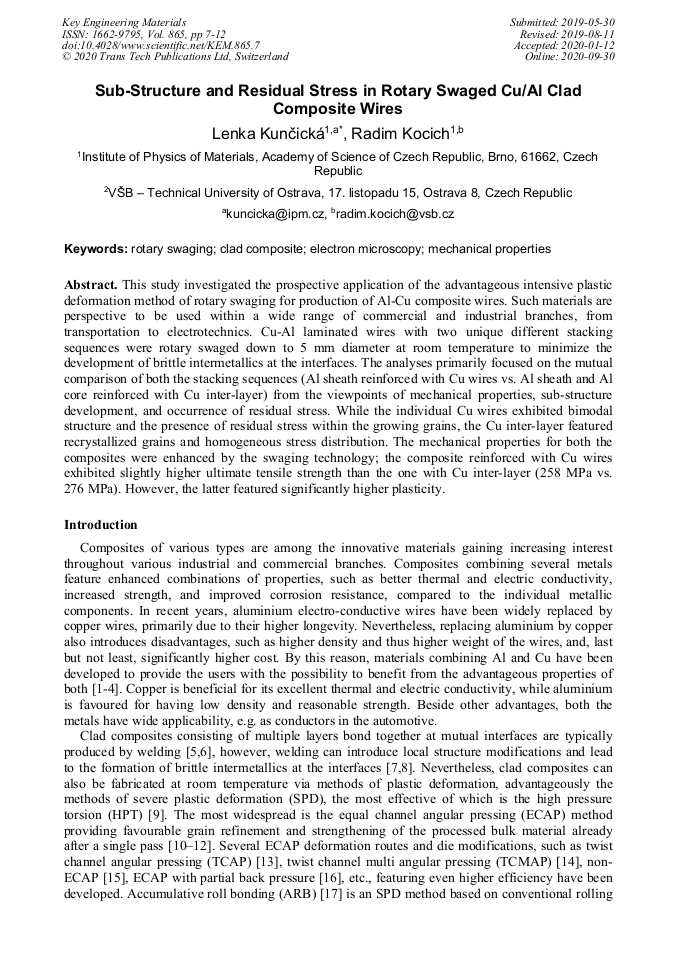

Sub-Structure and Residual Stress in Rotary Swaged Cu/Al Clad Composite Wires

Abstract:

This study investigated the prospective application of the advantageous intensive plastic deformation method of rotary swaging for production of Al-Cu composite wires. Such materials are perspective to be used within a wide range of commercial and industrial branches, from transportation to electrotechnics. Cu-Al laminated wires with two unique different stacking sequences were rotary swaged down to 5 mm diameter at room temperature to minimize the development of brittle intermetallics at the interfaces. The analyses primarily focused on the mutual comparison of both the stacking sequences (Al sheath reinforced with Cu wires vs. Al sheath and Al core reinforced with Cu inter-layer) from the viewpoints of mechanical properties, sub-structure development, and occurrence of residual stress. While the individual Cu wires exhibited bimodal structure and the presence of residual stress within the growing grains, the Cu inter-layer featured recrystallized grains and homogeneous stress distribution. The mechanical properties for both the composites were enhanced by the swaging technology; the composite reinforced with Cu wires exhibited slightly higher ultimate tensile strength than the one with Cu inter-layer (258 MPa vs. 276 MPa). However, the latter featured significantly higher plasticity.

• Periodical: Key Engineering Materials (Volume 865)
• Pages: 7-12
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.865.7
• Online since: September 2020
• Authors: Lenka Kunčická*, Radim Kocich
• Keywords: Clad Composite, Electron Microscopy, Mechanical Properties, Rotary Swaging

References

[1] F. Jia, J. Zhao, L. Luo, H. Xie, Z. Jiang, Experimental and numerical study on micro deep drawing with aluminium-copper composite material, Procedia Eng. 207 (2017) 1051–1056.

DOI: 10.1016/j.proeng.2017.10.1129

[2] D.W. Wolla, M.J. Davidson, A.K. Khanra, Studies on the formability of powder metallurgical aluminum–copper composite, Mater. Des. 59 (2014) 151–159.

DOI: 10.1016/j.matdes.2014.02.049

[3] L. Kunčická, R. Kocich, K. Dvořák, A. Macháčková, Rotary swaged laminated Cu-Al composites, Effect of structure on residualstress and mechanical and electric properties, Mater. Sci. Eng. A. 742 (2019) 743–750.

DOI: 10.1016/j.msea.2018.11.026

[4] S. Madhusudan, M.M. Sarcar, N.B.R.M. Rao, Mechanical properties of Aluminum-Copper(p) composite metallic materials, J. Appl. Res. Technol. 14 (2016) 293–299.

DOI: 10.1016/j.jart.2016.05.009

[5] A.N. Cherepanov, V.I. Mali, I.N. Maliutina, A.M. Orishich, A.G. Malikov, V.O. Drozdov, Laser welding of stainless steel to titanium using explosively welded composite inserts, Int. J. Adv. Manuf. Technol. 90 (2017) 3037–3043.

DOI: 10.1007/s00170-016-9657-2

[6] A.O. Al-Roubaiy, S.M. Nabat, A.D.L. Batako, Experimental and theoretical analysis of friction stir welding of Al–Cu joints, Int. J. Adv. Manuf. Technol. 71 (2014) 1631–1642.

DOI: 10.1007/s00170-013-5563-z

[7] R. Kocich, A. Macháčková, L. Kunčická, F. Fojtík, Fabrication and characterization of cold-swaged multilayered Al–Cu clad composites, Mater. Des. 71 (2015) 36–47.

DOI: 10.1016/j.matdes.2015.01.008

[8] M. Aravind, P. Yu, M.Y. Yau, D.H.L. Ng, Formation of Al2Cu and AlCu intermetallics in Al(Cu) alloy matrix composites by reaction sintering, Mater. Sci. Eng. A. 380 (2004) 384–393.

DOI: 10.1016/j.msea.2004.04.013

[9] L. Kunčická, T.C. Lowe, C.F. Davis, R. Kocich, M. Pohludka, Synthesis of an Al/Al2O3composite by severe plastic deformation, Mater. Sci. Eng. A. 646 (2015) 234–241.

DOI: 10.1016/j.msea.2015.08.075

[10] R. Kocich, M. Greger, A. Macháčková, Finite element investigation of influence of selected factors on ECAP process, in: Metal 2010, 19th International Metallurgical and Materials Conference, Tanger Ltd., 2010. p.166–171.

[11] P. Lukac, R. Kocich, M. Greger, O. Padalka, Z. Szaraz, Microstructure of AZ31 and AZ61 Mg alloys prepared by rolling and ECAP, Kov. Mater. 45 (2007) 115–120.

[12] W. Chen, P. Feng, L. Dong, B. Liu, S. Ren, Y. Fu, Experimental and theoretical analysis of microstructural evolution and deformation behaviors of CuW composites during equal channel angular pressing, Mater. Des. 142 (2018) 166–176.

DOI: 10.1016/j.matdes.2018.01.032

[13] R. Kocich, L. Kunčická, P. Král, A. Macháčková, Sub-structure and mechanical properties of twist channel angular pressed aluminium, Mater. Charact. 119 (2016) 75–83.

DOI: 10.1016/j.matchar.2016.07.020

[14] R. Kocich, L. Kunčická, A. Macháčková, Twist Channel Multi-Angular Pressing (TCMAP) as a method for increasing the efficiency of SPD, IOP Conf. Ser. Mater. Sci. Eng. 63 (2014) 012006.

DOI: 10.1088/1757-899x/63/1/012006

[15] M. Asgari, F. Fereshteh-Saniee, S.M. Pezeshki, M. Barati, Non-equal channel angular pressing (NECAP) of AZ80 Magnesium alloy: Effects of process parameters on strain homogeneity, grain refinement and mechanical properties, Mater. Sci. Eng. A. 678 (2016) 320–328.

DOI: 10.1016/j.msea.2016.09.102

[16] L. Kunčická, R. Kocich, J. Drápala, V.A. Andreyachshenko, FEM simulations and comparison of the ECAP and ECAP-PBP influence on Ti6Al4V alloy's deformation behaviour, in: Metal 2013, 22nd International Metallurgical and Materials Conference, Tanger Ltd., 2023. p.391–396.

DOI: 10.1016/j.micron.2012.06.011

[17] R. Kocich, A. Macháčková, F. Fojtík, Comparison of strain and stress conditions in conventional and ARB rolling processes, Int. J. Mech. Sci. 64 (2012) 54–61.

DOI: 10.1016/j.ijmecsci.2012.08.003

[18] R. Kocich, L. Kunčická, A. Macháčková, M. Šofer, Improvement of mechanical and electrical properties of rotary swaged Al-Cu clad composites, Mater. Des. 123 (2017) 137–146.

DOI: 10.1016/j.matdes.2017.03.048

[19] Oxford Instruments, Providing leading-edge tools for SEM, TEM &FIB - Nanoanalysis -, (2018). https://nano.oxinst.com/ (accessed December 24, 2018).

[20] B. Beausir, J.J. Fundenberger, Analysis Tools for Electron and X-ray diffraction, ATEX - software, www.atex-software.eu, (2017).

[21] B. Verlinden, J. Driver, I. Samajdar, R.D. Doherty, Thermo-mechanical processing of metallic materials, Elsevier, Amsterdam, (2007).

[22] Y. Yang, J. Nie, Q. Mao, Y. Zhao, Improving the combination of electrical conductivity and tensile strength of Al 1070 by rotary swaging deformation, Results Phys. 13 (2019) 102236.

DOI: 10.1016/j.rinp.2019.102236

[23] F.J. Humphreys, M. Hetherly, Recrystallization and Related Annealing Phenomena, 2nd ed., Elsevier Ltd, Oxford, (2004).

[24] C.P. Ostertag, E. Drescher‐Krasicka, Novel residual stress measurement techniques to measure residual stresses in fiber reinforced composites, J. Mater. Sci. 34 (1999) 557–563.

[25] R. Kocich, L. Kunčická, P. Král, P. Strunz, Characterization of innovative rotary swaged Cu-Al clad composite wire conductors, Mater. Des. 160 (2018) 828–835.

DOI: 10.1016/j.matdes.2018.10.027

[26] L. Kunčická, R. Kocich, P. Strunz, A. Macháčková, Texture and residual stress within rotary swaged Cu/Al clad composites, Mater. Lett. 230 (2018) 88–91.

DOI: 10.1016/j.matlet.2018.07.085

[27] R. Kocich, L. Kunčická, P. Král, A. Macháčková, Sub-structure and mechanical properties of twist channel angular pressed aluminium, Mater. Charact. 119 (2016) 75-83.

DOI: 10.1016/j.matchar.2016.07.020

[28] Z. Chen, Q. Zhang, Z. Jiang, H. Jiang, X. Wu, A Macroscopic Model for the Portevin-Le Chatelier Effect, J. Mater. Sci. Technol. 20 (2004) 535–539.

[29] R. Kocich, L. Kunčická, D. Dohnalík, A. Macháčková, M. Šofer, Cold rotary swaging of a tungsten heavy alloy: Numerical and experimental investigations, Int. J. Refract. Met. Hard Mater. 61 (2016) 264–272.

DOI: 10.1016/j.ijrmhm.2016.10.005

[30] A. Russell, K.L. Lee, Structure-Property Relations in Nonferrous Metals, 1st ed., John Wiley & Sons, Inc., New Jersey, (2005).
