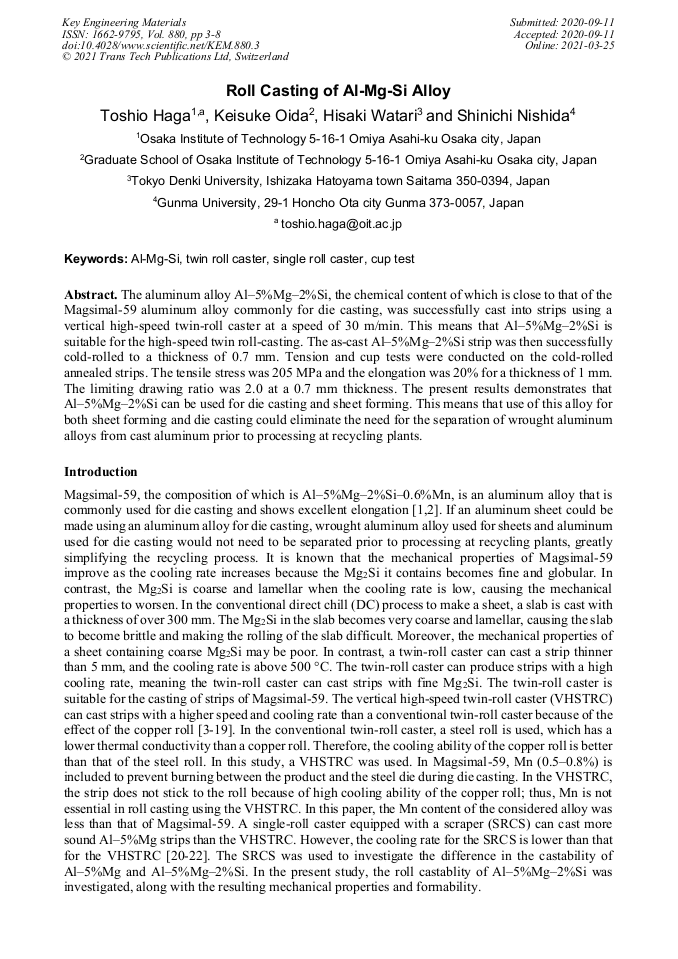

Roll Casting of Al-Mg-Si Alloy

Abstract:

The aluminum alloy Al–5%Mg–2%Si, the chemical content of which is close to that of the Magsimal-59 aluminum alloy commonly for die casting, was successfully cast into strips using a vertical high-speed twin-roll caster at a speed of 30 m/min. This means that Al–5%Mg–2%Si is suitable for the high-speed twin roll-casting. The as-cast Al–5%Mg–2%Si strip was then successfully cold-rolled to a thickness of 0.7 mm. Tension and cup tests were conducted on the cold-rolled annealed strips. The tensile stress was 205 MPa and the elongation was 20% for a thickness of 1 mm. The limiting drawing ratio was 2.0 at a 0.7 mm thickness. The present results demonstrates that Al–5%Mg–2%Si can be used for die casting and sheet forming. This means that use of this alloy for both sheet forming and die casting could eliminate the need for the separation of wrought aluminum alloys from cast aluminum prior to processing at recycling plants.

• Periodical: Key Engineering Materials (Volume 880)
• Pages: 3-8
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.880.3
• Online since: March 2021
• Authors: Toshio Haga*, Keisuke Oida, Hisaki Watari, Shinichi Nishida
• Keywords: Al-Mg-Si, Cup Test, Single Roll Caster, Twin Roll Caster

References

[1] Information on https://rheinfelden-alloys.eu/en/alloys/magsimal/.

[2] Information on https://foundry-planet.com/d/alu-rheinfelden/.

[3] R. Cook, P. G. Groock, P. M. Thomas, D. V. Edmonds, J. D. Hunt: Development of the twin-roll casting process, J. Mater. Process. Technol. 55(2) (1995) 76-84.

DOI: 10.1016/0924-0136(95)01788-7

[4] M. Cortes, Pechiney- Jumbo 3 CM super ((R)) the new demands of thin strip casting, Light Met. (1995) 1161-1164.

[5] B. Taraglio, C. Romanowski, Thin-gage/high-speed roll casting technology for foil production, Light Met. (1995) 1165-1182.

[6] A. I. Nussbaum, Three-state-of-the-art Thin –gage high-speed roll caster for aluminum alloy sheet products, Light Met. Age, 12 (1996) 8-19.

[7] O. Daaland, A. B. Espedal, M. L. Nedreberg, I. Alvestad, Thin gage twin-roll casting, process capabilities and product quality, Light Met. (2016) 989-996.

DOI: 10.1007/978-3-319-48228-6_125

[8] A.I. Nussbaum, Three-state-of-the-art Thin –gage high-speed roll caster for aluminum alloy sheet products PartⅢ, Light Met Age, 55(1997)34-39.

[9] O.Daland, A.B. Espedal, M.L. Nedreberg, I.Alvestad, Thin gage twin-roll casting, process capabilities and product quality, Light Met. (1997)745-752.

DOI: 10.1007/978-3-319-48228-6_125

[10] P.Y. Menet, R.Cayol, J.Moriceau, Pechiney Jumbo 3CM TM, start-up of the Neu-Brisach thin strip caster, Light Met. (1997)753-756.

[11] P.M. Thomas, P.G. Grocock, J.M. Bouzendorffer, Dynamic strip caster-An update on the operation of the roll caster at Eurofoil, Metall Plant Technol Int 20(1997)44-52.

[12] S.Hamers, D.Smith, C.Romanowski, G.Yildizbayrak, B.Taraglio, Twin roll casting of aluminum at 2.5mm gauge. Production experience and process improvement, Light Met, (1999)931-937.

[13] J.Benedyk, Thin strip casting for aluminum alloy sheet applications developed by Pechiney at Neuf-Brisach, Light Met Age, 59(2001)28-30.

[14] S.Hamer, C.Romanowski, B.Taraglio, Continuous casting and rolling of aluminum: Analysis of capacities, products ranges, and Technology, Light Met Age, 60(2002)6-17.

[15] M.Duendar, OE.Keles, B.Kerti, N.Dogan, Crystallographic texture development of twin-roll cast aluminum strips, Light Met, (2004)723-724.

[16] Ch. Gras, M.Meredith, J.D. Hund, Microdefects for mation during the roll casting of Al-Mg-Mn aluminum alloys, J.Mater.Process.Technol.,167(2005)62-72.

DOI: 10.1016/j.jmatprotec.2004.09.084

[17] T. Haga, K. Takahashi, H. Watari: Semisolid strip casting using a vertical type twin roll caster, Materials Science Forum Vol. 426 (2003), pp.477-482.

DOI: 10.4028/www.scientific.net/msf.426-432.477

[18] T. Haga, K. Takahashi, M. Ikawa: A vertical type twin roll caster for aluminum alloy strip, Journal of Materials Processing and Technology Vol. 140 (2003) ,pp.610-615.

DOI: 10.1016/s0924-0136(03)00835-5

[19] T. Haga, M. Ikawa, S. Kumai: A high speed twin roll caster for aluminum alloy thin strip, Transaction of the Materials　Research Society of Japan Vol. 29 (2004), pp.1823-1828.

DOI: 10.1299/jsmeintmp.2005.2_5

[20] T. Haga, K. Akitsu，S. Kumai，H. Watari: A single roll caster for aluminum alloy strip, Advanced Materials ResearchVol. 382 (2012), pp.368-371.

DOI: 10.4028/www.scientific.net/amr.382.368

[21] T.Haga，K.Akitsu，K.Kamakura，S.Kumai，H.Watari: Single roll caster equipped with a scraper, Key Engineering Materials Vols. 504-506 (2012), pp.1243-1248.

DOI: 10.4028/www.scientific.net/kem.504-506.1243

[22] T. Haga: A Single Roll Caster Equipped with a Scraper, TMS Editor: Margaret Hyland, LIGHT METALS 2015 (2015), P. 1215–1218.

DOI: 10.1002/9781119093435.ch203
