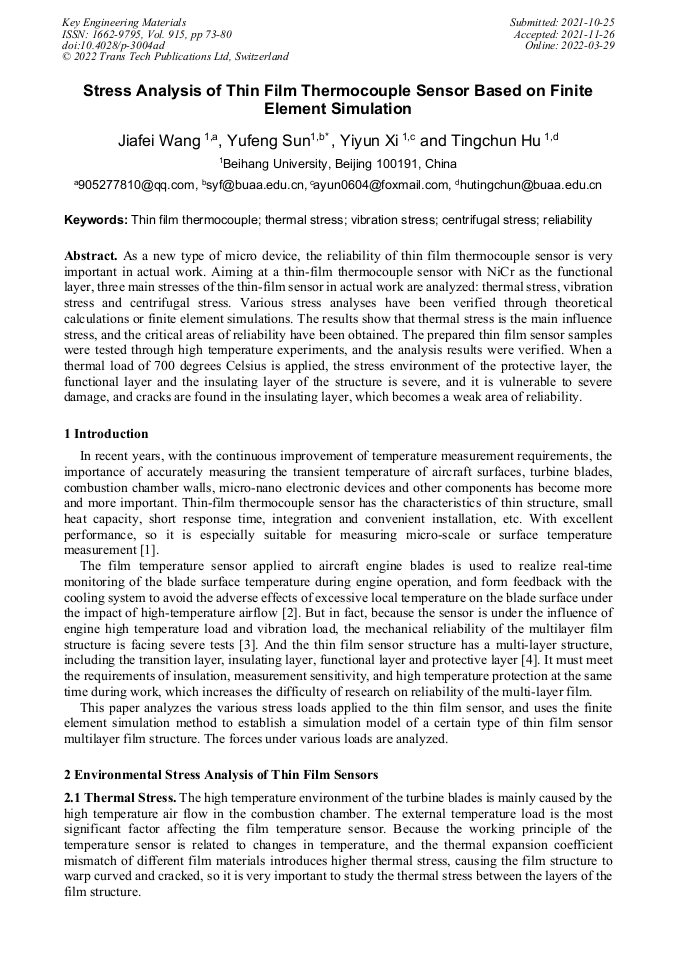

Stress Analysis of Thin Film Thermocouple Sensor Based on Finite Element Simulation

Abstract:

As a new type of micro device, the reliability of thin film thermocouple sensor is very important in actual work. Aiming at a thin-film thermocouple sensor with NiCr as the functional layer, three main stresses of the thin-film sensor in actual work are analyzed: thermal stress, vibration stress and centrifugal stress. Various stress analyses have been verified through theoretical calculations or finite element simulations. The results show that thermal stress is the main influence stress, and the critical areas of reliability have been obtained. The prepared thin film sensor samples were tested through high temperature experiments, and the analysis results were verified. When a thermal load of 700 degrees Celsius is applied, the stress environment of the protective layer, the functional layer and the insulating layer of the structure is severe, and it is vulnerable to severe damage, and cracks are found in the insulating layer, which becomes a weak area of reliability.

• Periodical: Key Engineering Materials (Volume 915)
• Pages: 73-80
• DOI: https://doi.org/10.4028/p-3004ad
• Online since: March 2022
• Authors: Jia Fei Wang, Yu Feng Sun*, Yi Yun Xi, Ting Chun Hu
• Keywords: Centrifugal Stress, Reliability, Thermal Stress, Thin Film Thermocouple, Vibration Stress

References

[1] Huang C F, Jiang M F, Mao M H. Development on thin film thermocouples technology for foreign aeroengine. Aeroengine, 2011, 37(6): 53.57.

[2] Tougas I M, Gregory O J. Thin film platinum-palladium thermocouples for gas turbine engine applications. Thin Solid Films, 2013,539(jul.31):345-349.

DOI: 10.1016/j.tsf.2013.05.076

[3] Hongseok Choi, Li X C. Fabrication and application of micro thin film thermocouples for transient temperature measurement in nanosecond pulsed laser micromachining of nickel .Sensors and Actuators, A. Physical, 2007, 136(1).

DOI: 10.1016/j.sna.2007.01.007

[4] Sun D. H, Cui Z. F, Zhou Y. F etc. Research progress of typical high temperature thin film sensors. Electro-Mechanical Engineering, 2018, 34(01):1-7.

[5] Liu Jiakai. Analysis of thermal stress in multilayer film structure. Chinese Journal of Sensors and Actuators, 2016, 29(7):994.999.

[6] Yin H. S. Fatigue life prediction of aero-engine low-pressure turbine blades. Chengdu: University of Electronic Science and Technology,(2016).

[7] Tian Y. W, Yan C. L, Zhang S. M, Yan G. The Induction Method of the Actual Test Data of Aircraft Random Vibration Environment. Journal of Vibration，Measurement & Diagnosis, 2014, 34 (6): 1129-1133, 1175.
