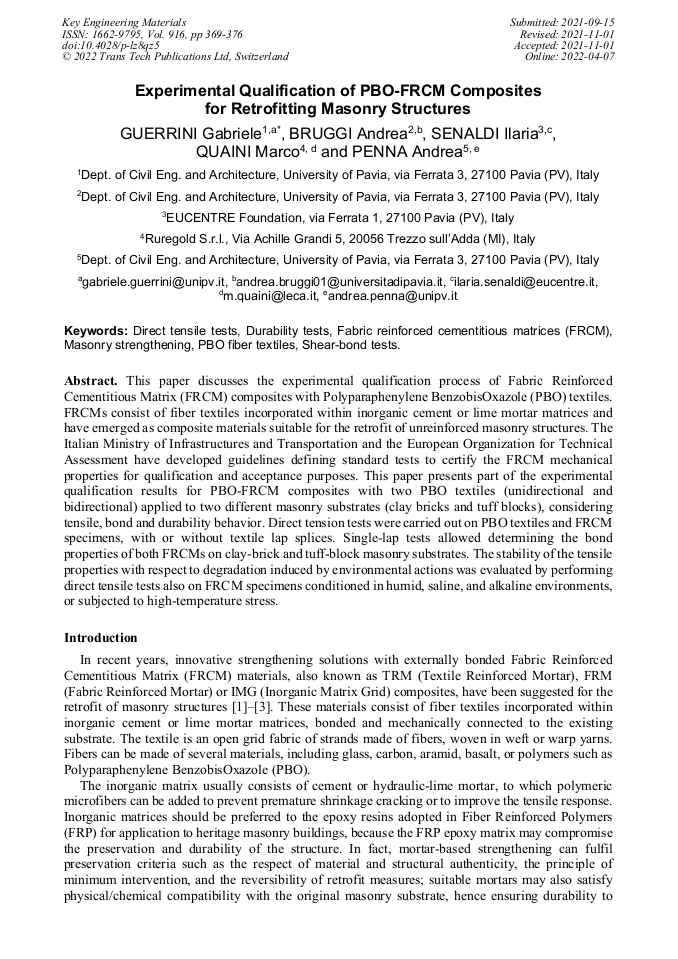

Experimental Qualification of PBO-FRCM Composites for Retrofitting Masonry Structures

Abstract:

This paper discusses the experimental qualification process of Fabric Reinforced Cementitious Matrix (FRCM) composites with Polyparaphenylene BenzobisOxazole (PBO) textiles. FRCMs consist of fiber textiles incorporated within inorganic cement or lime mortar matrices and have emerged as composite materials suitable for the retrofit of unreinforced masonry structures. The Italian Ministry of Infrastructures and Transportation and the European Organization for Technical Assessment have developed guidelines defining standard tests to certify the FRCM mechanical properties for qualification and acceptance purposes. This paper presents part of the experimental qualification results for PBO-FRCM composites with two PBO textiles (unidirectional and bidirectional) applied to two different masonry substrates (clay bricks and tuff blocks), considering tensile, bond and durability behavior. Direct tension tests were carried out on PBO textiles and FRCM specimens, with or without textile lap splices. Single-lap tests allowed determining the bond properties of both FRCMs on clay-brick and tuff-block masonry substrates. The stability of the tensile properties with respect to degradation induced by environmental actions was evaluated by performing direct tensile tests also on FRCM specimens conditioned in humid, saline, and alkaline environments, or subjected to high-temperature stress.

• Periodical: Key Engineering Materials (Volume 916)
• Pages: 369-376
• DOI: https://doi.org/10.4028/p-lz8qz5
• Online since: April 2022
• Authors: Gabriele Guerrini*, Andrea Bruggi, Ilaria Senaldi, Marco Quaini, Andrea Penna
• Keywords: Direct Tensile Tests, Durability Tests, Fabric Reinforced Cementitious Matrices (FRCM), Masonry Strengthening, PBO Fiber Textiles, Shear Bond Test

References

[1] Papanicolaou, C.G., Triantafillou, T.C., Karlos, K., and Papathanasiou, M. (2007) Textile-reinforced mortar (TRM) versus FRP as strengthening material of URM walls: in-plane cyclic loading,, Materials and Structures 40(10), 1081–1097.

DOI: 10.1617/s11527-006-9207-8

[2] Papanicolaou, C.G., Triantafillou, T.C., Papathanasiou, M., and Karlos, K. (2008) Textile reinforced mortar (TRM) versus FRP as strengthening material of URM walls: out-of-plane cyclic loading,, Materials and Structures 41(1), 143–157.

DOI: 10.1617/s11527-007-9226-0

[3] Valluzzi, M.R., Modena, C., and de Felice, G. (2014) Current practice and open issues in strengthening historical buildings with composites,, Materials and structures 47(12), 1971–1985.

DOI: 10.1617/s11527-014-0359-7

[4] Del Zoppo, M., Di Ludovico, M., and Prota, A. (2019) Analysis of FRCM and CRM parameters for the in-plane shear strengthening of different URM types,, Composites Part B 171, 20–33.

DOI: 10.1016/j.compositesb.2019.04.020

[5] Ascione, L., de Felice, G., and De Santis S. (2015) A qualification method for externally bonded Fibre Reinforced Cementitious Matrix (FRCM) strengthening systems,, Composites Part B 78, 497–506.

DOI: 10.1016/j.compositesb.2015.03.079

[6] CSLLPP (2018) Linea guida per la identificazione, la qualificazione ed il controllo di accettazione di compositi fibrorinforzati a matrice inorganica (FRCM) da utilizzarsi per il consolidamento strutturale di costruzioni esistenti. Consiglio Superiore dei Lavori Pubblici, Rome, Italy (in Italian).

DOI: 10.3221/igf-esis.12.04

[7] Ascione, L., Carozzi, F.G., D'Antino, T., and Poggi, C. (2018) New Italian guidelines for design of externally bonded Fabric-Reinforced Cementitious Matrix (FRCM) systems for repair and strengthening of masonry and concrete structures,, Procedia Structural Integrity, 11, 202–209.

DOI: 10.1016/j.prostr.2018.11.027

[8] CNR (2018) Istruzioni per la progettazione, l'esecuzione ed il controllo di interventi di consolidamento statico mediante l'utilizzo di compositi fibrorinforzati a matrice inorganica. CNR DT 215/2018. Consiglio Nazionale delle Ricerche, Rome, Italy (in Italian).

DOI: 10.20333/25000136-2021-2-104

[9] Arboleda, D., Babaeidarabad, S., Hays, C.D., and Nanni, A. (2014) Durability of Fabric Reinforced Cementitious Matrix (FRCM) composites,, Proc. 7th International Conference on FRP Composites in Civil Engineering, August 20-22, Vancouver, Canada.

[10] Senaldi, I., Guerrini, G., Bruggi, A., Quaini, M., and Penna, A. (2020) Experimental characterization of PBO-FRCM composites for masonry structures retrofit," Proc. 17th International Brick and Block Masonry Conference "From Historical to Sustainable Masonry,, July 5-8, Krakow, Poland.

DOI: 10.1201/9781003098508-46

[11] CEN (2006) Methods of test for mortar for masonry - Part 11: Determination of flexural and compressive strength of hardened mortar. European Standard EN 1015-11:1999/A1:2006. European Committee for Standardization, Brussels, Belgium.

DOI: 10.3403/01905442

[12] CEN (2002) Eurocode - Basis of structural design. European Standard EN 1990:2002. European Committee for Standardization, Brussels, Belgium.
