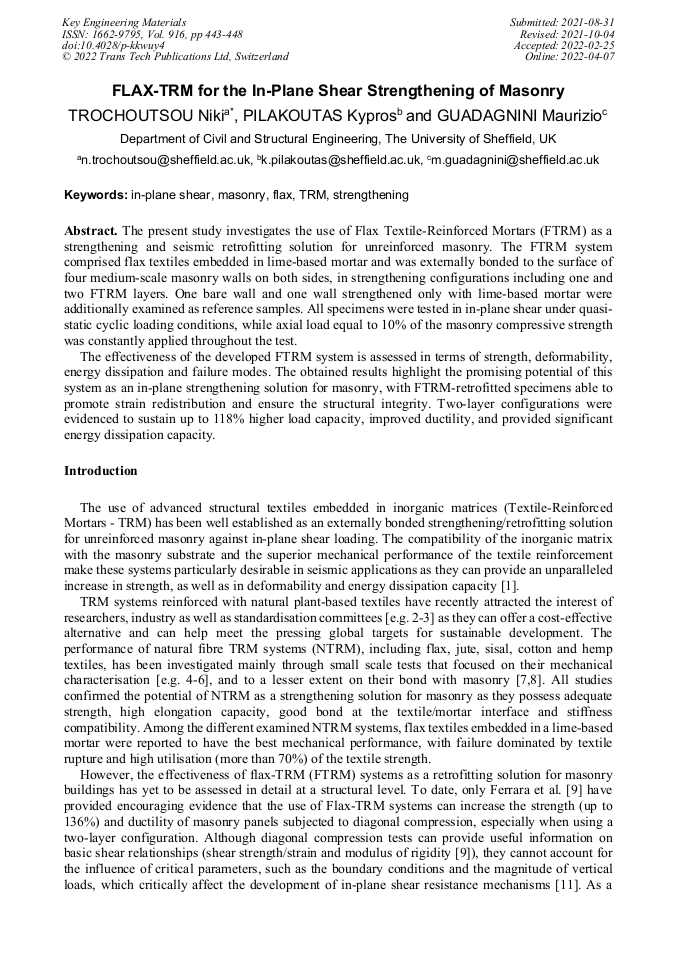

FLAX-TRM for the In-Plane Shear Strengthening of Masonry

Abstract:

The present study investigates the use of Flax Textile-Reinforced Mortars (FTRM) as a strengthening and seismic retrofitting solution for unreinforced masonry. The FTRM system comprised flax textiles embedded in lime-based mortar and was externally bonded to the surface of four medium-scale masonry walls on both sides, in strengthening configurations including one and two FTRM layers. One bare wall and one wall strengthened only with lime-based mortar were additionally examined as reference samples. All specimens were tested in in-plane shear under quasi-static cyclic loading conditions, while axial load equal to 10% of the masonry compressive strength was constantly applied throughout the test. The effectiveness of the developed FTRM system is assessed in terms of strength, deformability, energy dissipation and failure modes. The obtained results highlight the promising potential of this system as an in-plane strengthening solution for masonry, with FTRM-retrofitted specimens able to promote strain redistribution and ensure the structural integrity. Two-layer configurations were evidenced to sustain up to 118% higher load capacity, improved ductility, and provided significant energy dissipation capacity.

• Periodical: Key Engineering Materials (Volume 916)
• Pages: 443-448
• DOI: https://doi.org/10.4028/p-kkwuy4
• Online since: April 2022
• Authors: Niki Trochoutsou*, Kypros Pilakoutas, Maurizio Guadagnini
• Keywords: Flax, In-Plane Shear, Masonry, Strengthening, TRM

References

[1] C. C. Papanicolaou, T. C. Triantafillou, P. R. Fabregat, Increase of load-carrying capacity of masonry with textile reinforced rendering / Erhöhung der Tragfähigkeit von Mauerwerk mit textilbewehrtem Putz, Mauerwerk, 19 (2015) 40-51.

DOI: 10.1002/dama.201500647

[2] ACI 549.6R, Guide to Design and Construction of Externally Bonded Fabric-Reinforced Cementitious Matrix (FRCM) and Steel-Reinforced Grout (SRG) Systems for Repair and Strengthening Masonry Structures, ACI, Farmington Hills, (2020).

DOI: 10.14359/51702356

[3] fib bulletin 90, Externally applied FRP reinforcement for concrete structures, fib, (2019).

DOI: 10.35789/fib.bull.0090.ch01

[4] R. S. Olivito, O. A. Cevallos, A. Carrozzini, Development of durable cementitious composites using sisal and flax fabrics for reinforcement of masonry structures, Mater. Des. 57 (2014) 258-268.

DOI: 10.1016/j.matdes.2013.11.023

[5] N. Trochoutsou, M. Di Benedetti, K. Pilakoutas, M. Guadagnini, Mechanical Characterisation of Flax and Jute Textile-Reinforced Mortars, Constr. Build. Mater. 271 (2021) 121564.

DOI: 10.1016/j.conbuildmat.2020.121564

[6] R. Codispoti, D. V. Oliveira, R. S. Olivito, P. B. Lourenço, R. Fangueiro, Mechanical performance of natural fiber-reinforced composites for the strengthening of masonry, Compos. Part B: Eng. 77 (2015) 74-83.

DOI: 10.1016/j.compositesb.2015.03.021

[7] R. S. Olivito, R. Codispoti, O. A. Cevallos, Bond behavior of Flax-FRCM and PBO-FRCM composites applied on clay bricks: Experimental and theoretical study, Compos. Struct. 146 (2016) 221-231.

DOI: 10.1016/j.compstruct.2016.03.004

[8] N. Trochoutsou, M. Di Benedetti, K. Pilakoutas, M. Guadagnini, Bond of Flax Textile-Reinforced Mortars to Masonry, Constr. Build. Mater. 284 (2021) 122849.

DOI: 10.1016/j.conbuildmat.2021.122849

[9] G. Ferrara, C. Caggegi, E. Martinelli, A. Gabor, Shear capacity of masonry walls externally strengthened using Flax-TRM composite systems: experimental tests and comparative assessment, Constr. Build. Mater. 261 (2020) 120490.

DOI: 10.1016/j.conbuildmat.2020.120490

[10] J. Donnini, G. Maracchini, S. Lenci, V. Corinaldesi, E. Quagliarini, TRM reinforced tuff and fired clay brick masonry: Experimental and analytical investigation on their in-plane and out-of-plane behavior, Constr. Build. Mater. 272 (2021) 121643.

DOI: 10.1016/j.conbuildmat.2020.121643

[11] G. Magenes, G. M. Calvi, In-Plane Seismic Response of Brick Masonry Walls, Earthq. Eng. Struct. Dyn. 26 (1997) 1091-1112.

DOI: 10.1002/(sici)1096-9845(199711)26:11<1091::aid-eqe693>3.0.co;2-6

[12] EN 772-1, Methods of test for masonry units, Part 1: Determination of compressive strength, CEN, Brussels, (2000).

[13] EN 1015-11, Methods of test for mortar for masonry, Part 11: Determination of flexural and compressive strength of hardened mortar, CEN, Brussels, (1999).

DOI: 10.3403/01905442

[14] EN 1052-1, Methods of test for masonry, Part 1: Determination of compressive strength, CEN, Brussels, (1999).

[15] EN 1052-3, Methods of test for mortar for masonry, Part 3: Determination of initial shear strength, CEN, Brussels, (2002).

[16] N. Trochoutsou, M. Di Benedetti, K. Pilakoutas, M. Guadagnini, Mechanical Characterisation of Flax and Jute Textile-Reinforced Mortars, Constr. Build. Mater. 271 (2021) 121564.

DOI: 10.1016/j.conbuildmat.2020.121564

[17] EN 1998-3, Design of structures for earthquake resistance, Part 3: Assessment and retrofitting of buildings, CEN, Brussels, (2005).
